  • DS18 ZR15.2D 15" Elite-Z DVC Subwoofer 2 Ohms Per Coil

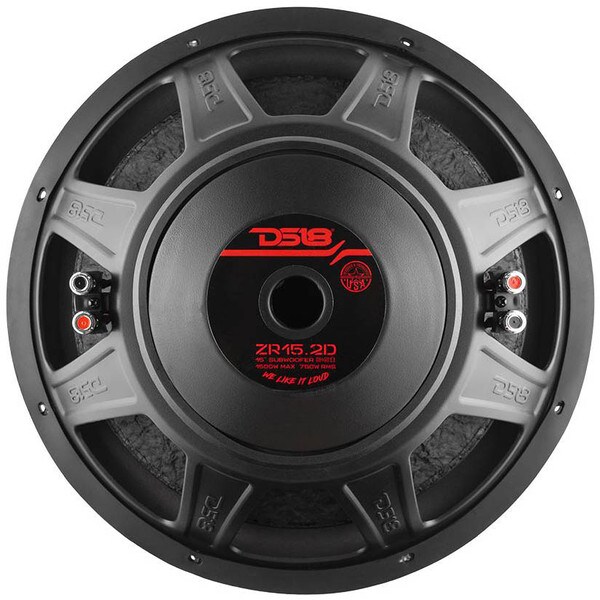

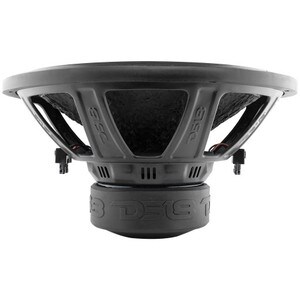

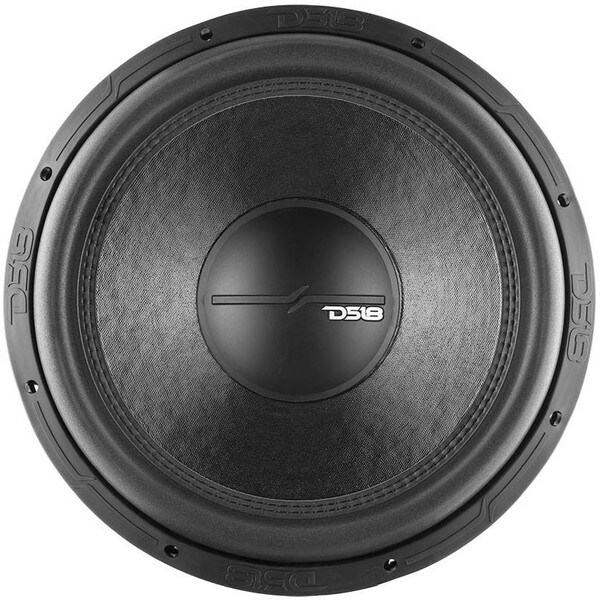

DS18 ZR15.2D 15" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18Part # 294-8072
Model: ZR15.2D
3 Questions, 3 Answers or
The ZR15.2D 15” Elite-Z dual voice coil subwoofer from DS18 combines high power handling with incredible displacement for excellent output capability. With dual 2-ohm voice coils, this driver gives you multiple wiring option to get the most out of any amplifier. All ZR series subwoofers feature a large foam surround, non-pressed paper cone, extensive venting, and powerful ferrite magnets to deliver clean bass with reliable performance.

Key Features

  • Flexible specifications that are suitable for use in both sealed and vented enclosures
  • Large foam surround ensures keeping great cone control when pushed to its limit
  • 2-1/2” voice coil on aluminum former to handle up to 750 watts RMS
  • Under spider and pole venting dissipates excess heat for improved power handling and reliability
Similar items that may interest you:
Dayton Audio MX15-22 15" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil
Price: $244.98Part # 295-168
See all items in Car Subwoofer Speakers
Your Price: $189.95
+ FREE SHIPPING
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when DS18 ZR15.2D 15" Elite-Z DVC Subwoofer 2 Ohms Per Coil is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 ZR15.2D 15" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18’s ZR15D 15” Elite-Z dual voice coil subwoofer is built to deliver excellent low frequency performance from an entry level price. With of 25 mm of excursion this driver is capable of ample displacement required to produce deep bass with high SPL. The large foam surround is stitched to the non-pressed paper cone to ensure linear operation and reliability even when pushed to the limit. A 2-1/2” copper voice coil wound on an aluminum former includes extensive venting to dissipate enough heat to safely handle up to 750 watts RMS for surprising output capability. In addition, dual 2-ohm voice coils allow multiple wiring options to ensure you are getting the most out of your amplifier for optimal performance. The ZR15D is the perfect subwoofer choice if you are looking for premium performance and high output capability from a modest budget.

Note: This is a dual voice coil with 2-ohm voice coils. Specs listed below are with the voice coils wired is series for a 4-ohm load.

Product Details

BrandDS18
ModelZR15.2D
Part Number294-8072
UPC663593058768
Unit of MeasureEach
Weight19.95

Product Specifications

Nominal Diameter15"
Speaker Size4"
Power Handling (RMS)750 Watts
Power Handling (MAX)1500 Watts
Impedance4Ω
Frequency Response21 to 200Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)26Hz
DC Resistance (Re)3.6Ω
Mechanical Q (Qms)4.34
Electromagnetic Q (Qes)0.82
Total Q (Qts)0.69
Compliance Equivalent Volume (Vas)2.7ft³
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)8.58T·m
Diaphragm Mass Inc. Airload (Mms)345.9g
Maximum Linear Excursion (Xmax)25mm
Surface Area of Cone (Sd)834.69cm²

Materials of Construction

Cone MaterialCoated Paper-Paper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.35"
Baffle Cutout Diameter13.95"
Depth7.568"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F332Hz
Vented Volume3.5ft³
Vented F323.1Hz
