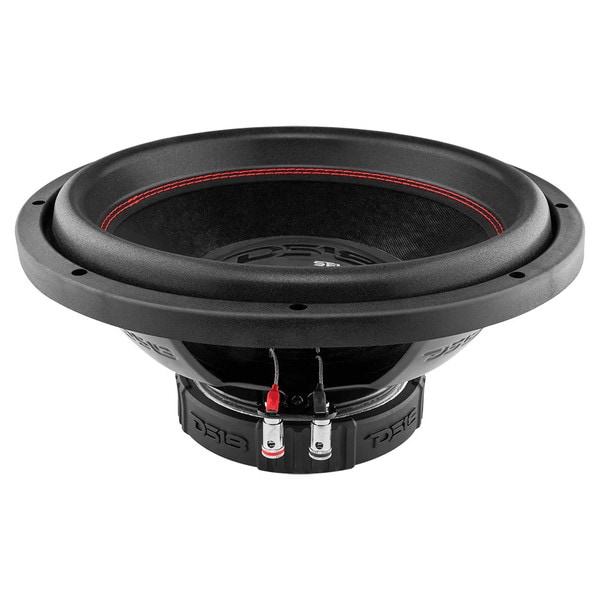

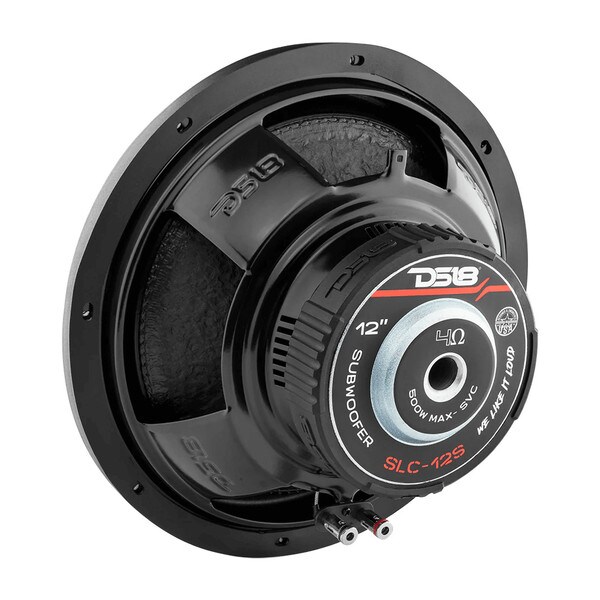

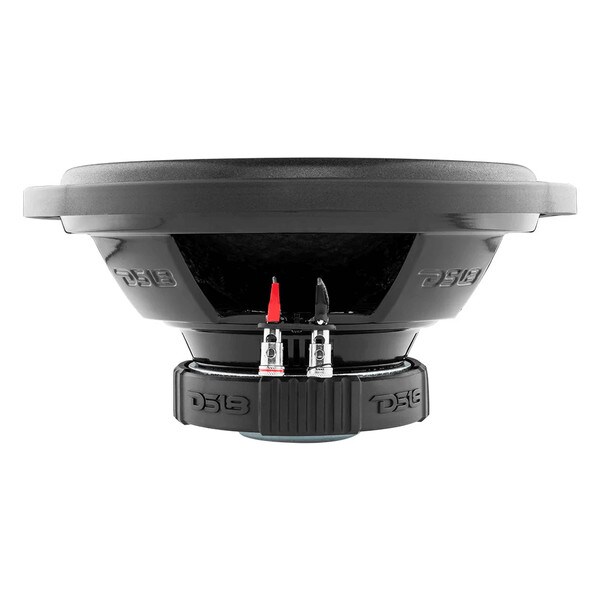

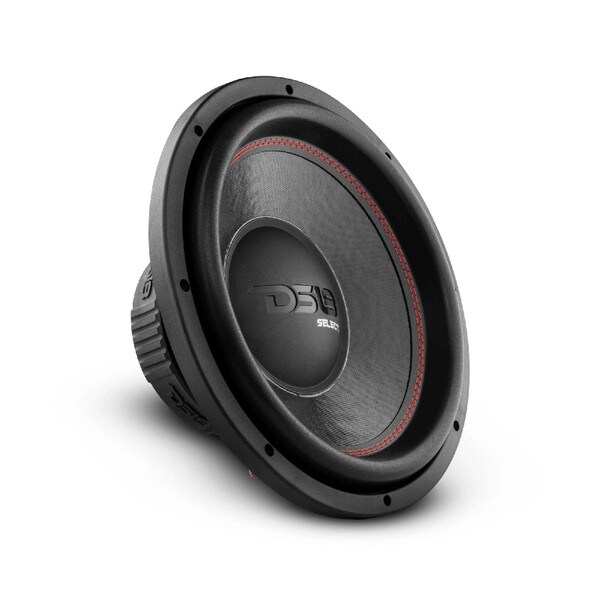

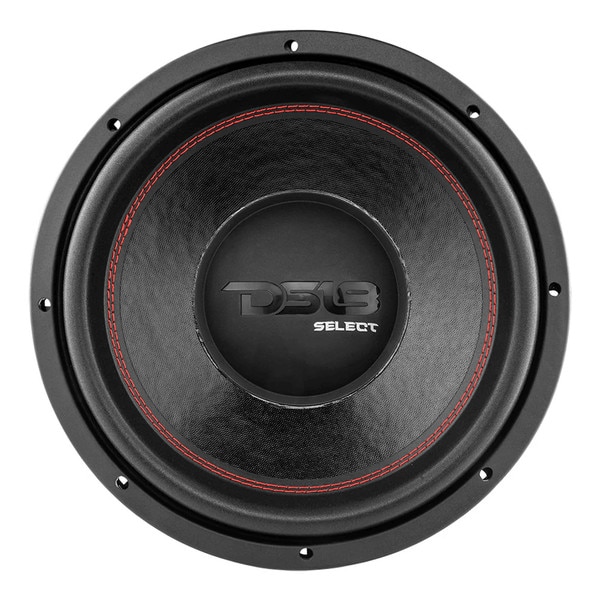

DS18 SLC12S Select 12" Paper Cone Subwoofer 4 Ohm

DS18Part # 294-8078
Model: SLC12S
The Select series SLC12S 12" paper cone subwoofer from DS18 is perfect for customers who are looking for sound quality and output on a budget. To ensure reliable performance the specially treated foam surround is stitched to the rigid non-pressed paper cone creating a mechanical bond that will last and last. Excess heat from the 2" 4-layer voice coil is vented through the frame and motor assembly for high power handling and low power compression. The SLC12S is ideal for anyone looking to upgrade their car audio system without breaking the bank.

Key Features

  • Powerful motor and high excursion capability for excellent low frequency output
  • 2" diameter 4-layer voice coil handles up to 250 watts RMS (500 watts max)
  • Glass reinforced paper cone with stitched foam surround for long life and durability
  • Venting under the spider and though the motor dissipates excess heat to keep the voice coil cool
  • Push button wire terminals make connections simple and secure
Your Price: $106.95
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when DS18 SLC12S Select 12" Paper Cone Subwoofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 SLC12S Select 12" Paper Cone Subwoofer 4 Ohm

For car audio enthusiasts on a budget, DS18's SLC12S 12" paper cone subwoofer driver is a great way to add some powerful low end to your system without breaking the bank. An oversized treated foam surround is mechanically stitched to the fiberglass reinforced paper cone to ensure that that high stress joint will not fail even under high excursion and stress. To handle up to 250 watts RMS, the SLC12s uses a 2" 4-layer voice that is thoroughly vented through the pole piece and under the spider which dissipates excess heat and minimizes power compression. Push button spring loaded terminals are used to provide a simple and secure wire connection for easy installation. Optimized for use is sealed and infinite baffles designs, this rugged driver is overbuilt to reliably deliver excellent low frequency response for years.

Product Details

BrandDS18
ModelSLC12S
Part Number294-8078
UPC663593056528
Unit of MeasureEach
Weight9.8

Product Specifications

Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance
Frequency Response41 to 4,200Hz
Sensitivity90dB 2.83V/1m

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.44"
Baffle Cutout Diameter10.90"
Depth5.47"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F342.8Hz
Vented Volume2ft³
Vented F330.7Hz
