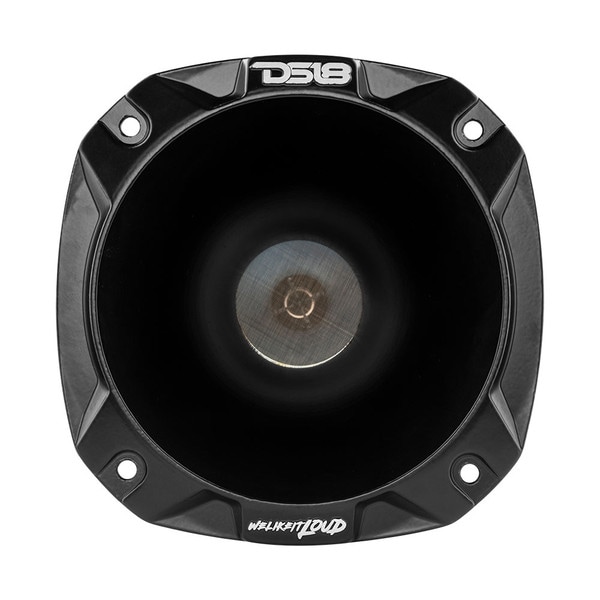

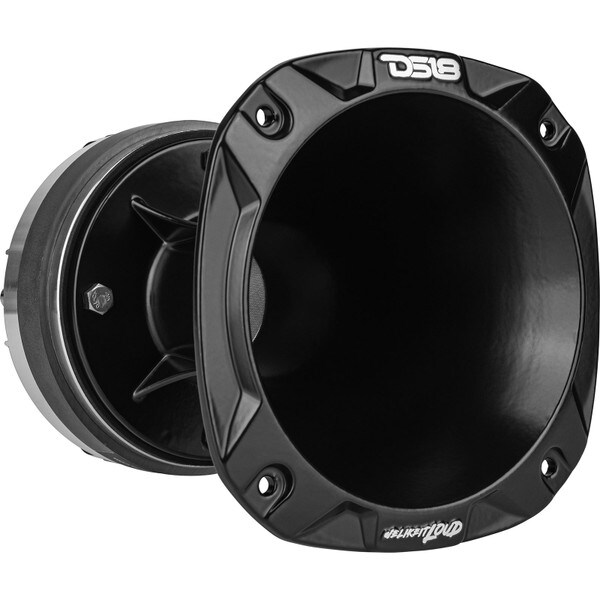

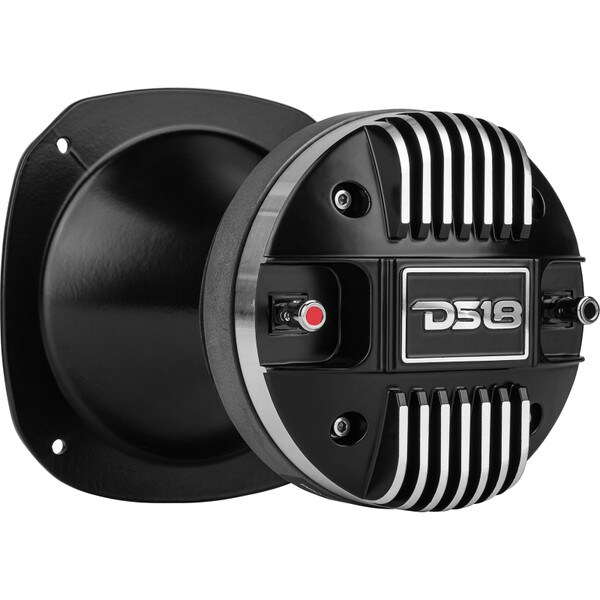

DS18 PRO-DKH1 2" Professional Horn Loaded high Frequency Driver 8 Ohm

DS18Part # 294-8138
Model: PRO-DKH1
5 Questions, 13 Answers or
Designed to produce midrange and high frequencies at maximum output, the D18 PRO-DKH1 combines a 2" titanium compression driver with a rugged aluminum horn to truly bring concert level SPL to mobile sound systems. Delivering 115 dB sensitivity and response from 500 to 18,500 Hz this will fill all of your mid and high frequency needs. This powerful combination will provide extreme output and smooth response.

Key Features

  • Capable of maximum output to allow you to stand out from the crowd
  • 115 dB sensitivity for high SPL even without tons of power
  • Powerful ferrite motor and 2" titanium diaphragm for unbelievable output capability
  • Non-resonant cast aluminum horn controls dispersion for high efficiency right where you want it
  • 500 to 18,500 Hz response eliminates the need for separate midrange and high frequency drivers
Your Price: $119.95
+ FREE SHIPPING
Bulk Pricing
Only 4 In Stock
Get Notified When Available

We'll send you an email when DS18 PRO-DKH1 2" Professional Horn Loaded high Frequency Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 PRO-DKH1 2" Professional Horn Loaded high Frequency Driver 8 Ohm

If you need the absolute highest output capability, then the PRO-DKH1 horn loaded high frequency driver from DS18 is exactly what you need. By combining the PRO-D1 2" titanium compression driver with a compact cast aluminum horn, DS18 has created a powerful speaker that is capable of amazing midrange and high frequency SPL. With a frequency response of 500 to 18,500 Hz this combination will cover the majority of the vocal range and higher to simplify large and complex designs. The massive 2" compression driver uses a powerful motor and 2" titanium diaphragm to keep resonances under control and deliver natural response. The cast aluminum horn controls dispersion to minimize unwanted reflections and put the sound right where you want it. At 115 dB sensitivity and capable of handling up to 160 watts RMS, the PRO-DKH1 is the easiest way to add true concert level audio capability to any mobile sounds system.

Specifications: • Power handling: 160 watts RMS (crossover frequency 800 kHz, 12 dB/octave), 320 watts max • Impedance: 8 ohms • Useable range: 500-18,500 Hz • Recommended crossover: 800 Hz • SPL: 115 dB 1w/1m • Dimensions: 6.88" diameter x 7.5" deep • Cutout diameter: 5.4".

Product Details

BrandDS18
ModelPRO-DKH1
Part Number294-8138
UPC095225336263
Unit of MeasureEach
Weight8.05

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter2"
Impedance8Ω
