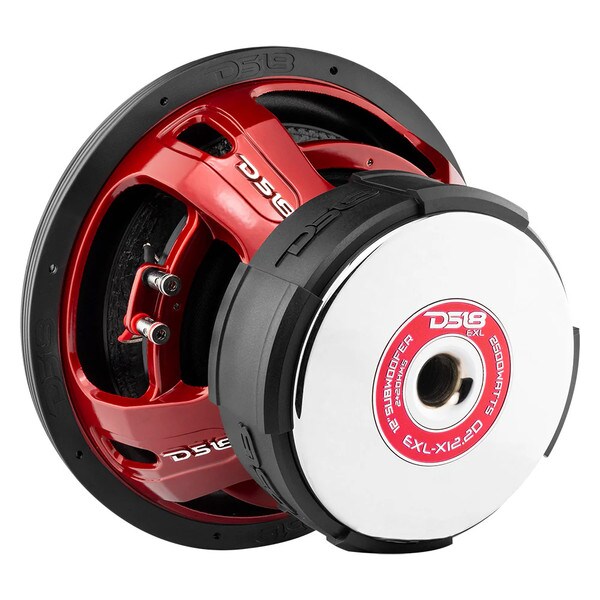

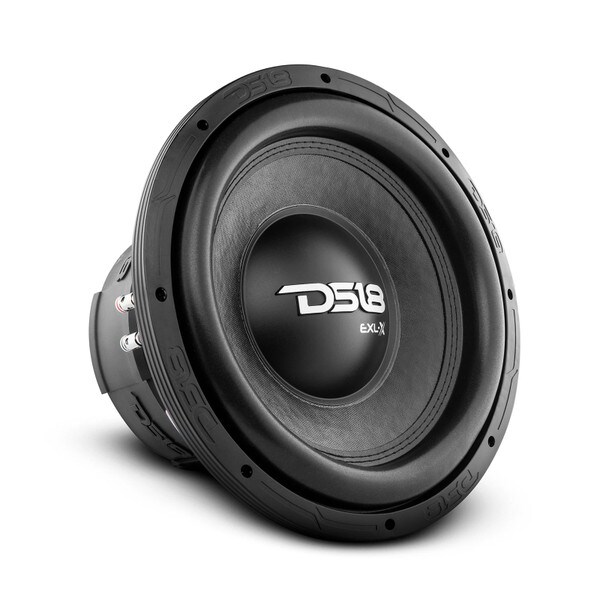

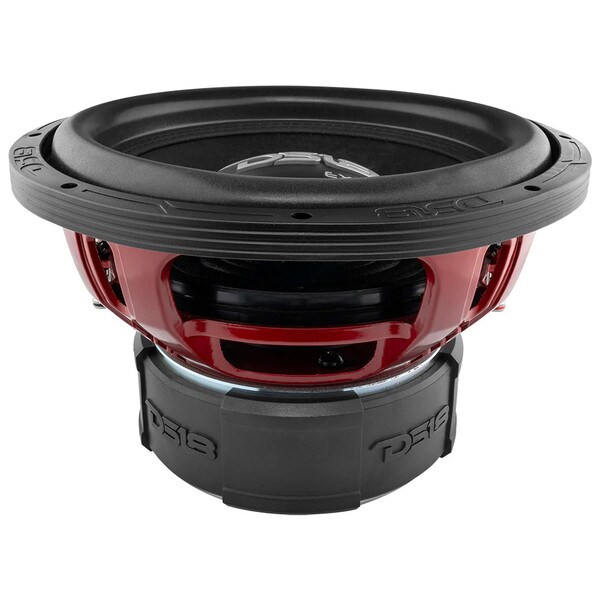

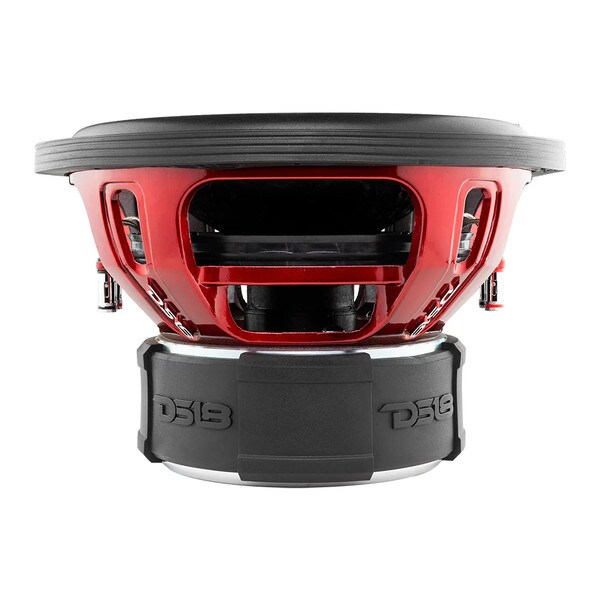

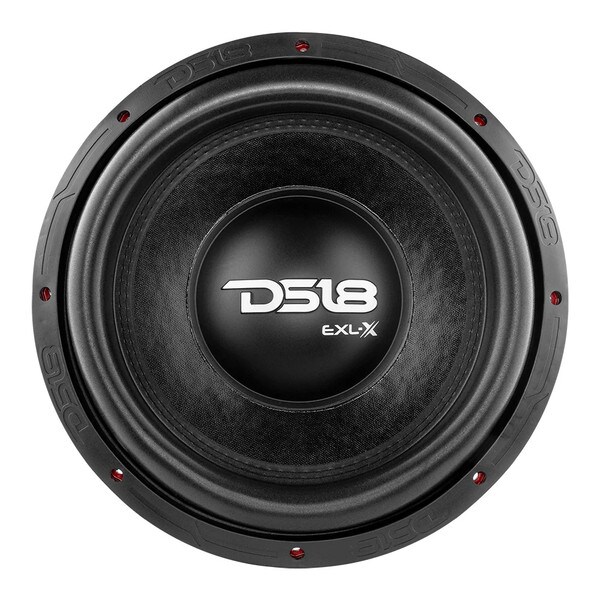

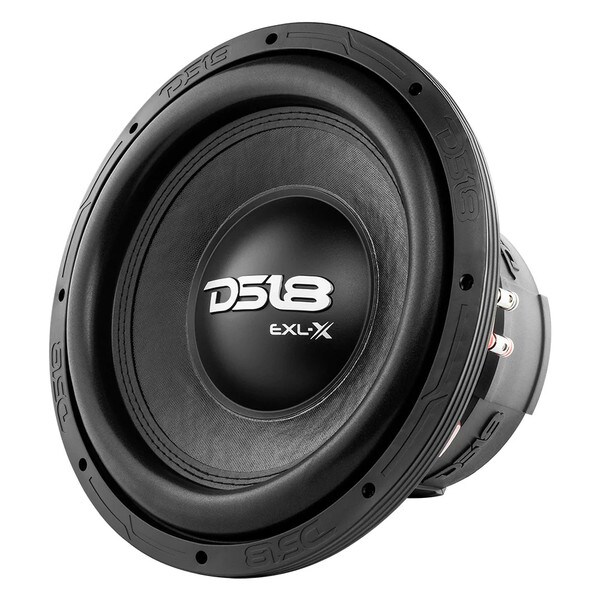

DS18 EXL-X12.2D 12" Cast Frame DVC Subwoofer 2 Ohm

DS18Part # 294-8086
Model: EXL-X12.2D
DS18 built the EXL-X12.2D 12" cast frame DVC subwoofer powerful low frequency response and extreme SPL. This massive high excursion driver is capable of incredible displacement to produce more powerful low frequency output than other drivers in its class. Featuring a reinforced paper cone, stitched foam surround, extensive venting, cast aluminum frame, and massive motor assembly, the EXL-X12.2D is a formidable driver with amazing output capabilities.

Key Features

  • Extreme power handling and high excursion to produce maximum SPL
  • Dual 2 ohm voice coils allow a variety of wiring options for use with various amplifiers
  • Reinforced paper cone and stitched surround ensures reliability under high stress
  • Extensive venting enables the 2-1/2" 4-layer voice coils to handle up to 1,250 watts RMS
  • Spring loaded connectors for simple and reliable direct wire connection
Your Price: $299.95
+ FREE SHIPPING
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when DS18 EXL-X12.2D 12" Cast Frame DVC Subwoofer 2 Ohm is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 EXL-X12.2D 12" Cast Frame DVC Subwoofer 2 Ohm

When you need high output and ground shaking bass, then look no further than the EXL-X12.2D 12" cast frame subwoofer from DS18. This massive subwoofer combines high power handling and excellent excursion capabilities to deliver remarkable output with low distortion. To improve reliability, the treated foam surround is stitched to the rigid reinforced paper cone eliminating a common failure point for many high excursion drivers. For high power handling, the 4-layer 2-1/2" voice coils are wound on an aluminum former and vented extensively to dissipate heat while lowering power compression. The strong motor assembly consists of dual stacked magnets allowing ample voice coil clearance for high excursion without bottoming out. Holding everything together is a solid cast aluminum frame built to handle the stress of the difficult car audio environment. This rugged construction makes the EXL-X12.2D a powerful subwoofer that will take serious use and abuse while continuing to provide incredible performance.

The design of the EXL-X12.2D makes it perfect for vented designs. Vented enclosures will result in more output and maximum low frequency output for higher SPL. Dual 2 ohm voice coils allow for a variety of wiring configurations to achieve maximum power from your amplifier.

Note: Specifications shown are with the voice coils wired in series for a 4 ohm load.

Product Details

BrandDS18
ModelEXL-X12.2D
Part Number294-8086
UPC663593064677
Unit of MeasureEach
Weight35

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)1250 Watts
Power Handling (MAX)2500 Watts
Impedance4Ω
Frequency Response30 to 1,700Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2.57"

Thiele-Small Parameters

Resonant Frequency (Fs)49.6Hz
DC Resistance (Re)4Ω
Voice Coil Inductance (Le)0.561mH
Mechanical Q (Qms)2.901
Electromagnetic Q (Qes)0.448
Total Q (Qts)0.388
Compliance Equivalent Volume (Vas)0.33ft³
Mechanical Compliance of Suspension (Cms)0.027mm/N
BL Product (BL)32.39T·m
Diaphragm Mass Inc. Airload (Mms)376.997g
Maximum Linear Excursion (Xmax)15mm
Surface Area of Cone (Sd)490.87cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialFoam
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.6"
Baffle Cutout Diameter11.1"
Depth8.1"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F3114Hz
Vented Volume1.63ft³
Vented F338.8Hz
