DPDT Center Off Heavy Duty Toggle Switch Momentary Both Sides

Parts Express
Part #060-565

DPDT Center Off Heavy Duty Toggle Switch Momentary Both Sides

Parts Express
Part #060-565
DPDT with center off and momentary both sides w/screw terminals toggle switch. This switch handles up to 20 amps @ 125 VAC and mounts in a 1/2" hole.
Key Features
  • Includes an on/off/on plate for easy identification
  • Screw terminals for quick installation
  • Mounts in a common 1/2" hole
  • RoHS and CE certified
Your Price: $4.29
MSRP: $5.99
Save $1.70 (28%)
Bulk Pricing
Quantity:Qty: 1-9 $4.29/ea
Quantity:Qty: 10+$3.86/ea
Ships next business day. Details

29In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

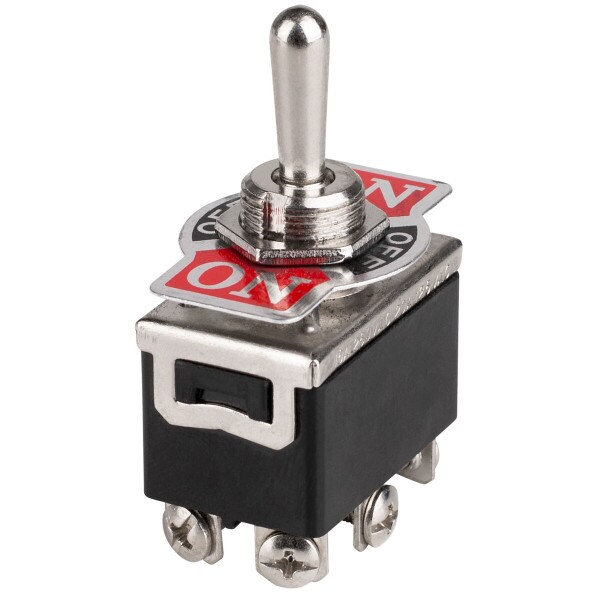

DPDT Center Off Heavy Duty Toggle Switch Momentary Both Sides

This DPDT switch is perfect for momentarily turning on two different devices, one at a time, by moving the toggle one way or the other. It handles 125 VAC @ 20 amps or 250 VAC @ 15 amps. The on/off/on plate makes it easy to identify its operation and the screw terminals make it convenient to wire-up without soldering or crimping. The switch mounts quickly in a 1/2" hole with included shaft nuts.

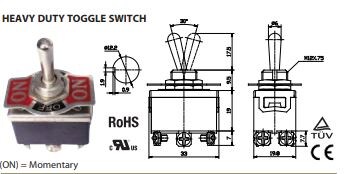

Specifications: • Body dimensions without terminals: 1.28" L x 0.76" W x 0.80" H • Mounting shaft dimensions: 0.35" H x 0.47" Dia. • Toggle dimensions: 0.65" H x 0.22" Dia. • Contact dimensions: 0.28" W x 0.03" D x 0.26" H • Contacts: 6 • Current rating: 20A @ 125 VAC 15A @ 250 VAC.

Product Details

BrandParts Express
Part Number060-565
UPC848864044163
Unit of MeasureEach
Weight0.05

Product Specifications

CircuitDPDT Mom-Off-Mom
Contact Rating @ Voltage20A 125 VAC
IlluminationNon-Illuminated
