Twist Lock DC Coaxial Plug & Barrel Power Jack Connector Set 2.5 x 5.5mm

Parts Express
Part #090-5029

Twist Lock DC Coaxial Plug & Barrel Power Jack Connector Set 2.5 x 5.5mm

Parts Express
Part #090-5029
Locking 2.5 x 5.5 mm plug and jack set keeps power connected even when under stress. The jack's built-in switch disconnects other internal power sources if you insert the locking plug.
Key Features
  • Jack's long 1/3" shaft thread mounts in up to 1/4" thick panels
  • Jack's internal switch cuts off internal power sources if plug is inserted to prevent charging non-rechargeable batteries
  • Twist lock action prevents unintended power interruptions
  • Standard DC coax 2.5 x 5.5 mm size for higher current projects
Your Price: $4.19
MSRP: $6.99
Save $2.80 (40%)
Bulk Pricing
Quantity:Qty: 1-9 $4.19/ea
Quantity:Qty: 10+$3.77/ea
Ships next business day. Details

5In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

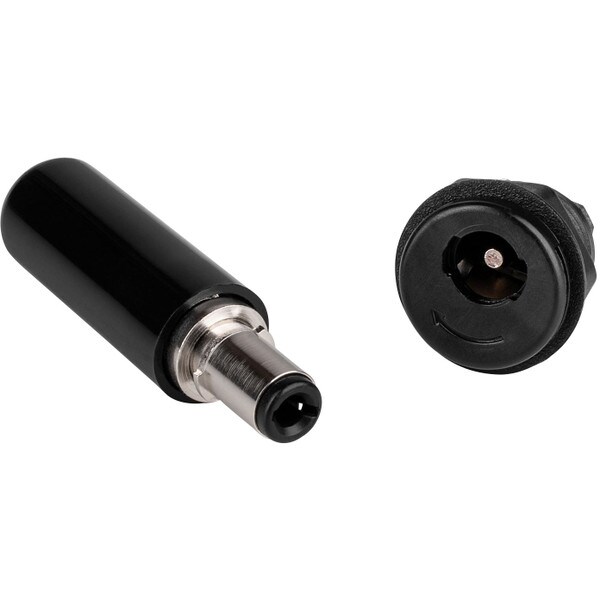

Twist Lock DC Coaxial Plug & Barrel Power Jack Connector Set 2.5 x 5.5mm

Use this locking DC coax set for your next project to prevent power interruptions. Plug and twist action is the quickest way to lock-in a DC plug from unintentionally coming out. The 2.5 x 5.5 mm jack will still accept none locking plugs the same size, but you take the chance of it coming back out like other non-locking sets.

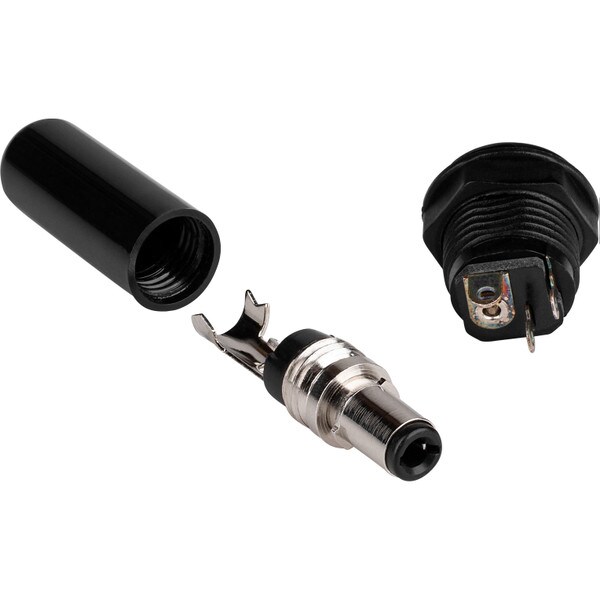

Note: DC Plug cap requires extra torque to screw off. Use needle nose plyers to aid in screwing the cap off by clamping to the metal ring at the back of the plug. Do not clamp onto the plug or locking flanges.

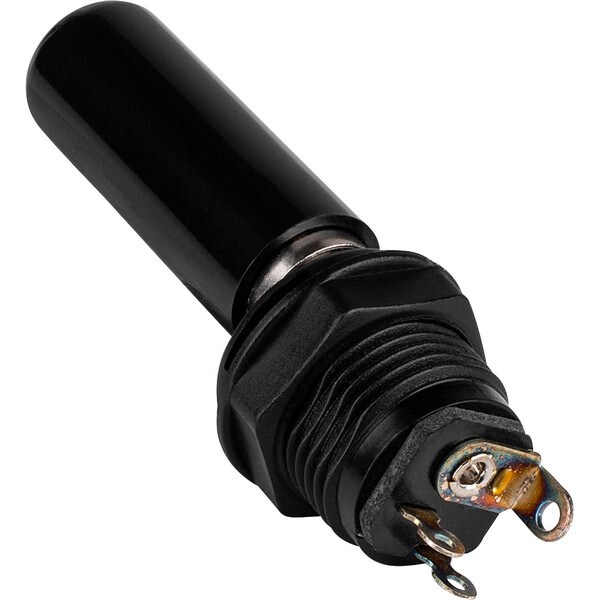

The DC coax jack comes with deep 1/3" long threads and has a built-in switch to disconnect other internal power sources when a DC plug is inserted. The deep threads enable you to mount the jack into 1/4" panels and the built-in switch cuts out the internal power when a 2.5 x 5.5" plug is inserted to prevent power from going to non-rechargeable batteries. The two smaller (-) terminals (tip positive circuit) on the DC jack separate when a 2.1 x 5.5 mm plug is inserted.

Specifications: • DC jack dimensions: 0.554" Dia. x 0.554" D (14 x 14 mm) without terminals • Shaft nut: 9/16" with 0.63" Dia. x 0.17" thick ring • Mounting hole: 0.475" Dia. x 0.45" with indent (12.3 x 11.47 mm) • Solder terminals: 0.12" W x 0.15" H x 0.02" D • DC plug connector dimensions: 2.5 x 5.5 x 9.5 mm • DC plug total dimensions: 1.46" L x 0.40" Dia. (37.25 x 9.92 mm) at its widest point with cover • Cable entry hole: 0.19" Dia.

Product Details

BrandParts Express
Part Number090-5029
UPC848864060613
Unit of MeasureEach
Weight0.05

Product Specifications

DC Power Connector TypeJack
