  • Professional Grade Pendant Speaker Community CP6-B 6.5" 2-Way 70V, 60W Black, ETL Listed

BUYOUT Professional Grade Pendant Speaker Community CP6-B 6.5" 2-Way 70V, 60W Black, ETL Listed

Read 2 Reviews or
Factory Buyouts
Part #299-024

BUYOUT Professional Grade Pendant Speaker Community CP6-B 6.5" 2-Way 70V, 60W Black, ETL Listed

Factory Buyouts
Part #299-024
Model: CP6-B
Read 2 Reviews or

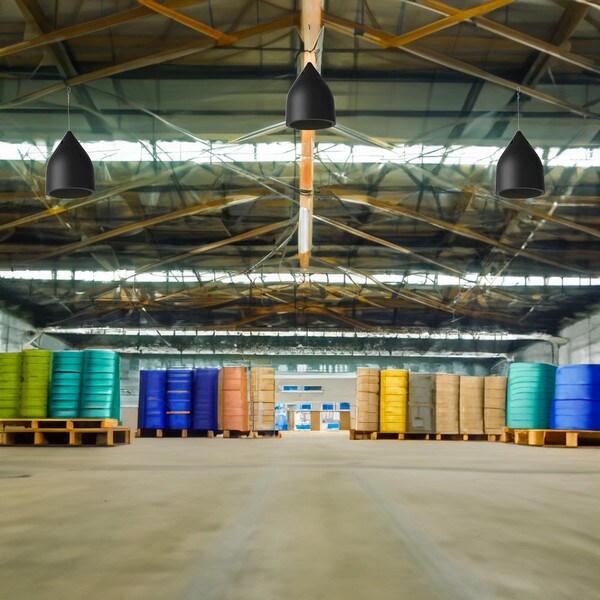

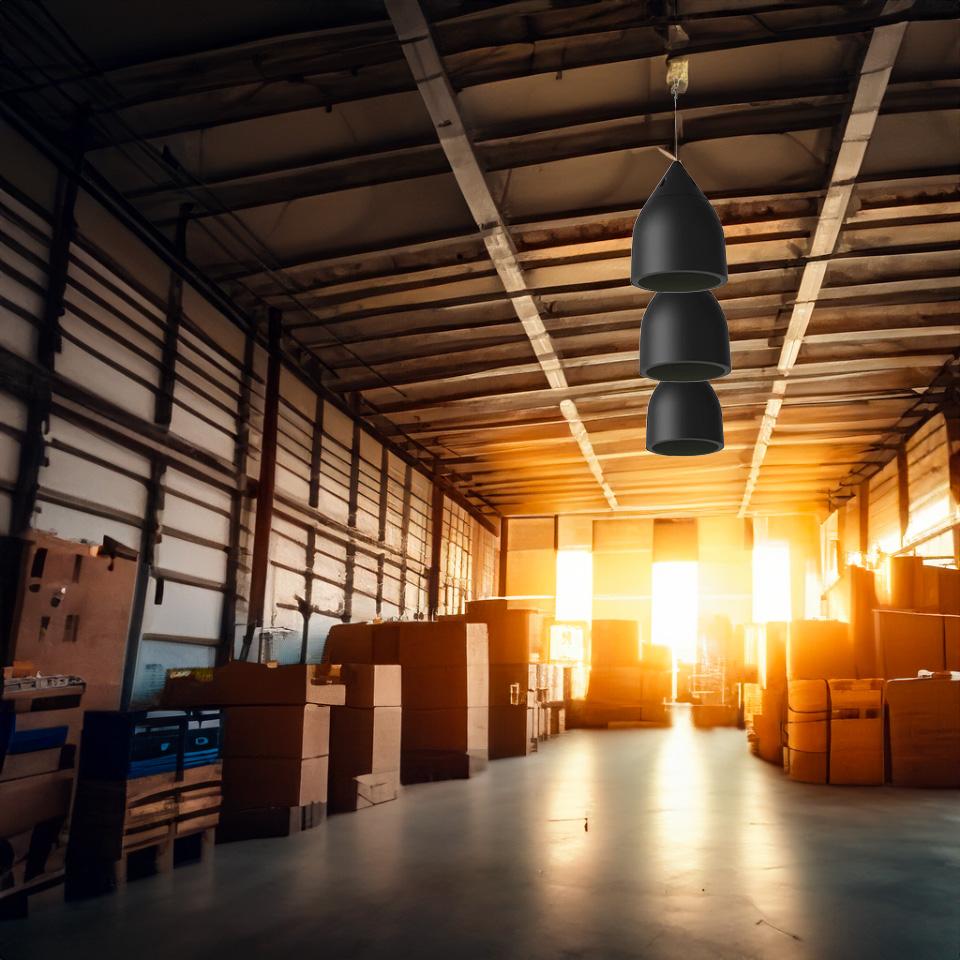

The Community CP6-B belongs to the Commercial Design series, purposefully crafted to deliver exceptional paging and musical performance. Designed with precision, it is ideally suited for open architectural spaces or locations where an elegant pendant-style speaker is a necessity, such as open-concept retail stores, restaurants, and industrial environments like storage facilities and warehouses. Offering over $200 in savings compared to the MSRP, this ETL certified speaker allows more affordability for a reliable professional-grade pendant speaker.

Key Features
  • Extremely efficient, up to 91 dB at only 1 watt -- 115 db max!
  • Consistent, wide dispersion up to 16 kHz
  • Tru-Phase high-frequency waveguide for clear output and uniform coverage
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • External loop-through Euroblock connectors
  • ETL listed to comply with UL1480
  • Selectable 8 ohm or 70V/100V operation
BUYOUT $99.98
+ FREE SHIPPING
MSRP: $350.00
Save $250.02 (71%)
Bulk Pricing
Order in the next 4 hr 19 min to ship today. Details

255In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Professional Grade Pendant Speaker Community CP6-B 6.5" 2-Way 70V, 60W Black, ETL Listed

Community CP6-B 6.5" 2-Way 70V Pendant Speaker 60W Black

Community's exclusive Tru-Phase waveguide technology provides a consistently wide conical polar response, extending up to 16 kHz. The genuine coaxial design employs separate magnets for the LF and HF drivers, resulting in reduced distortion and leading-edge sensitivity. This allows for up to 3 dB greater output levels while demanding only half the amplification power compared to competing products.

Conveniently located on the loudspeaker's front face, an easy-access selector switch enables the choice of 8 Ohm or 70V/100V operation. Additionally, an integrated rear cover discreetly conceals all wiring and hanging hardware, ensuring a visually pleasing installation.

The enclosure is reflex loaded UL 94V-0 rated ABS, which comes in matte black but is paintable to suit your installation requirements.

The entire Commercial Design Series maintains consistent voicing, ensuring that the CP6-B can be seamlessly integrated with other members of the series, maintaining sonic uniformity across different zones.

Included with each speaker are two PHK-15 pendant hang kits (one for main suspension and one as a safety cable), each including 15ft (4.5m) long 2mm (0.77") high tensile galvanized steel wire rope suspension cables with integrated spring clips for attaching the cable to the loudspeaker bracket and Gripple® brand adjustable height cable fasteners.

Additional Specifications:

• Loudspeaker Type: Two-way, full-range, coaxial pendant mount loudspeaker, 8 Ohm or 70V/100V operation

• Operating Range: 70 Hz - 13.5 kHz (-10 dB)

• Frequency Response: 100 Hz - 12.5 kHz (-3 dB)

• Max Input Ratings (8 Ohm): 60W continuous, 150Wprogram, 21.9 volts RMS, 43.8 volts momentary peak

• Transformer Taps: 70V: 30W, 15W, 7.5W, 3.75W and 8 Ohm selectable - 100V: 30W, 15W, 7.5W, and 8 Ohm selectable

• Sensitivity (1W/1m): 91 dB SPL (100 Hz to 12.5kHz 1/3 octave bands); 91 dB SPL (250 Hz to 4 kHz speech range)

• Maximum Output: 8 Ohms: 109 dB SPL / 115 dB SPL (peak) 70V: 106 dB SPL / 112 dB SPL (peak) 100V: 106 dB SPL / 112 dB SPL (peak)

• Nominal Impedance: 8 Ohms

• Nominal Coverage: 120º conical (1 kHz to 6 kHz+/- 65°); 120° conical (500 Hz to 6 kHz +/- 65°)

• Crossover Frequency: 2 kHz •

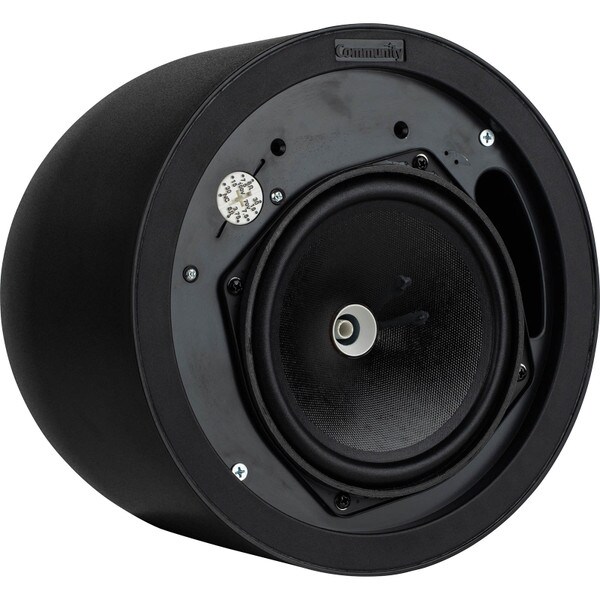

• Drivers: LF 1x 6.5" cone, HF 1x 3/4" exit compression driver

• Driver Protection: Self-resetting solid state circuit breaker

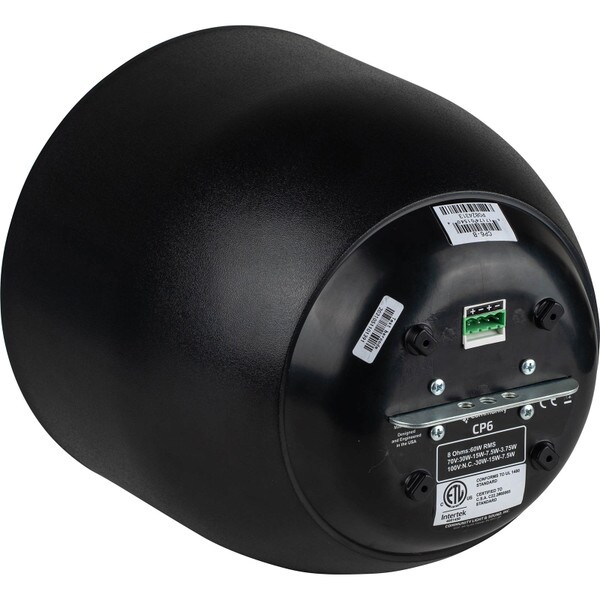

• Input Connection: Two 2-pole Euroblock connectors

• Controls: Front-face wattage / low impedance selector switch

• Enclosure: UL 94V-0 rated ABS plastic, matte finish, paintable

• Finish: Black

• Mounting/Rigging Provisions: Two PHK-15 pendant hang kits (one for main suspension and one as a safety cable), each including 15ft (4.5m) long 2mm (0.77") high tensile galvanized steel wire rope suspension cables with integrated spring clips for attaching the cable to the loudspeaker bracket and Gripple® brand adjustable height cable fasteners.

• Grille: Powder coated steel with safety line, black finish, paintable

• Baffle: Reflex loaded UL 94V-0 rated ABS

• Safety Features: Included safety cable. Each cable has an SWL of 99 lbs (45 kg).

• Safety Agency Ratings: ETL listed to comply with UL1480 and CSA60065. Suspension system and Gripple® brand cable fastener listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81.

• Supplied Accessories: Two PHK-15 pendant hang kits, Enclosure ABS plastic rear cover, Rear cover ingress weather plug

• Dimensions: Height: 13.629" (346.2 mm), enclosure diameter: 10.0" (254 mm) face

• Weight: 8.1 lbs (3.7 kg)
