Classix II MT Bookshelf Speaker Kit with Knock-Down Cabinet

Parts Express
Part #300-7112

Classix II MT Bookshelf Speaker Kit with Knock-Down Cabinet

Parts Express
Part #300-7112
If you desire a small speaker that can put the fun back into music without taking a chunk out of your wallet then look no further than the Classix II speaker kit. Designed by Paul Carmody, this 2-way kit includes almost everything you need to build a single high end bookshelf speaker, including: a knock-down cabinet, drivers, crossover components, and damping material.
Key Features
  • Compact speaker that can provide a big sound in small to medium sized space
  • CNC cut MDF cabinet panels make the enclosure easy to assemble with minimal tools
  • Designed and fine-tuned by expert designer Paul Carmody
  • The Classix II is known for its ability to make even bad recordings sound good
Your Price: $124.98
+ FREE SHIPPING
MSRP: $206.29
Save $81.31 (39%)
Bulk Pricing
Order in the next 0 hr 54 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Classix II MT Bookshelf Speaker Kit with Knock-Down Cabinet

Classix II MT Bookshelf Speaker Kit with Knock-Down Cabinet

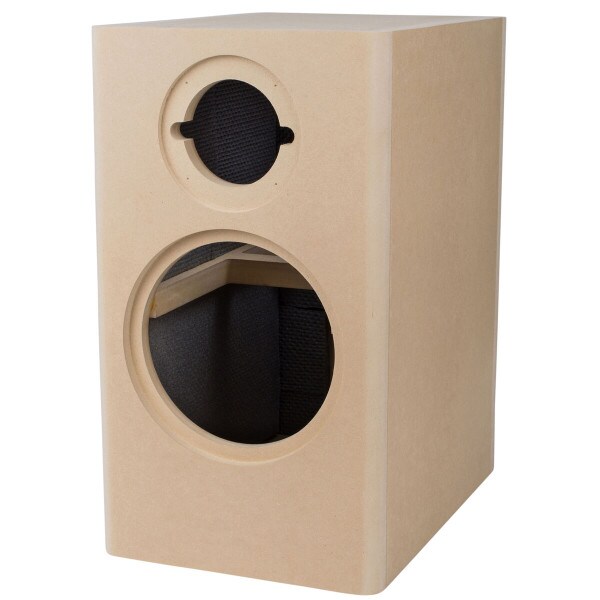

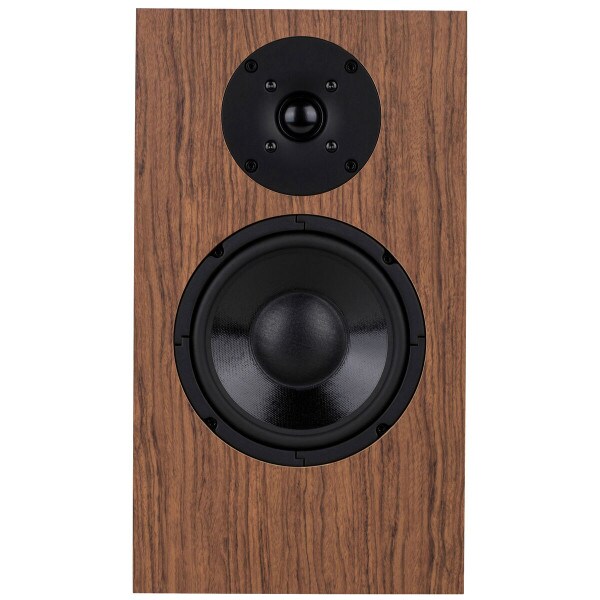

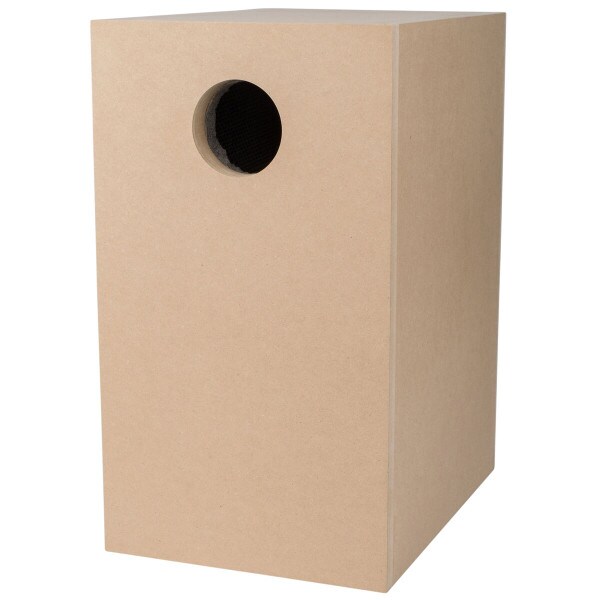

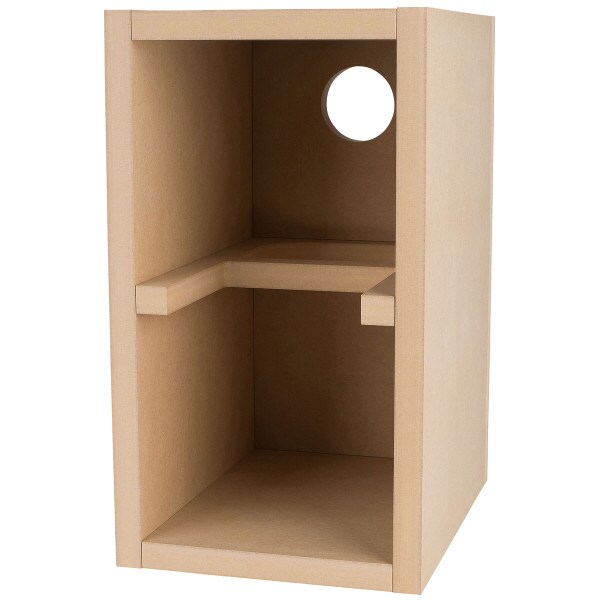

The Classix II kit is a 2-way bookshelf speaker that provides a big sound from a small package. With powerful bass response, relaxed midrange, and natural high end this speaker has the ability to make even poor recordings sound great. With the exceptional low frequency ability of the popular Dayton Audio DC160-8 6-1/2" woofer the Classix II delivers plenty of bass for most small to medium sized rooms. For the upper frequencies this kit uses the Peerless by Tymphany BC25TG15-4 1" silk dome tweeter which is known for natural, non-fatiguing response making this speaker ideal for long listening sessions. The solid 3/4" MDF enclosure panels are all CNC milled to tight tolerances ensuring easy assembly. The finished enclosure includes a center brace tying all sides together minimizing cabinet resonances. Recesses for flush mounting the drivers and the opening for the port are pre-cut making assembly a snap.

This kit includes parts to build a single speaker.

Features:

  • Compact speaker that can provide a big sound in small to medium sized space
  •  CNC cut MDF cabinet panels make the enclosure easy to assemble with minimal tools
  • Designed and fine-tuned by expert designer Paul Carmody
  •  The Classix II is known for its ability to make even bad recordings sound good

Customer Comments:

" Way better then i expected. Will buy again. You can hear every note very clear. Great deal." Marc P ⋆⋆⋆⋆⋆
"Made these for fun during the first pandemic lockdown. I gotta say, these are just great. I play them through a little Parts Express T-amp and they sounds perfect for my needs. Plenty of bass, easy going mids and highs. This speaker is warm, rolled off up top, and fun..." Michael M.  ⋆⋆⋆⋆⋆

About the Designer:

Paul Carmody

 According to Paul Carmody," I know you'll think I'm kidding, but of all the speaker designs I've done, if I could only keep a handful, these would be near the top of my list…the Classix II have a "euphonic" quality about them. They "gloss over" many of the problematic details of popular music (that an "audiophile" speaker would glare at you with), but at the same time are engineered to be revealing enough that most people would be surprised to hear new things in favorite old recordings."

Customer Projects:

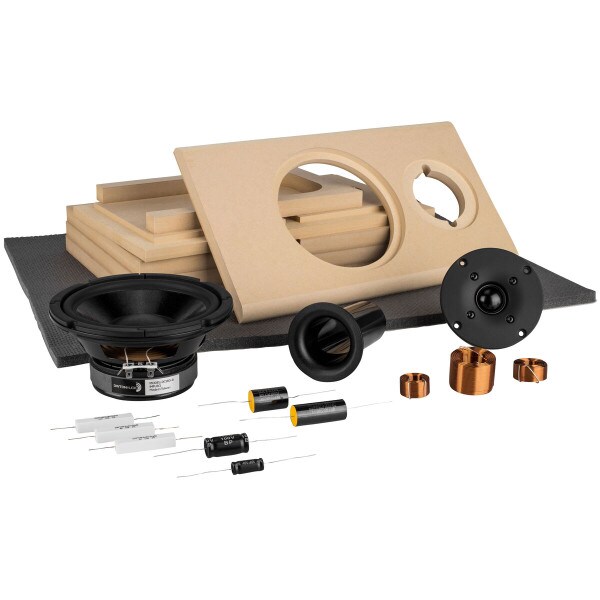

Kit Components:

Part #QTY.Description
027-4241 Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor
027-422
1Dayton Audio DMPC-4.7 4.7uF 250V Polypropylene Capacitor
027-340110uF 100V Electrolytic Non-Polarized Crossover Capacitor
027-3601100uF 100V Non-Polarized Capacitor
255-0261Jantzen 1528 0.25mH 20 AWG Air Core Inductor
255-0361Jantzen 1034 0.50mH 20 AWG Air Core Inductor
255-2541Jantzen 1901 1.2mH 18 AWG Air Core Inductor
004-41Dayton Audio DNR-4.0 4 Ohm 10W Precision Audio Grade Resistor
004-61Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor
004-101Dayton Audio DNR-10.0 10 Ohm 10W Precision Audio Grade Resistor
264-1040

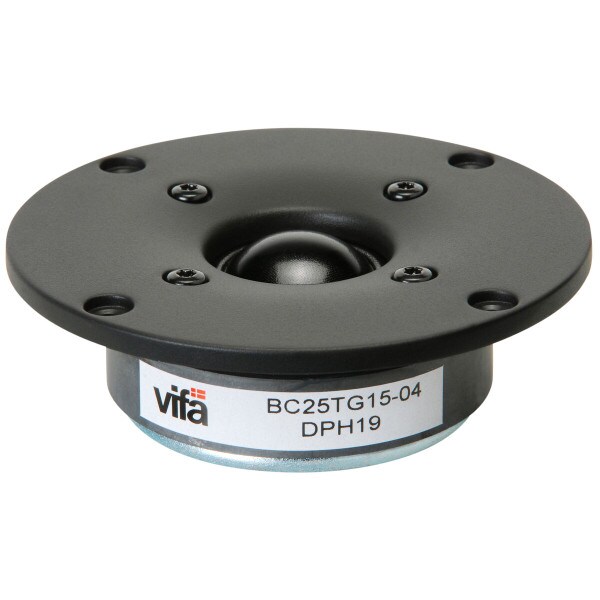

1 Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter
295-305

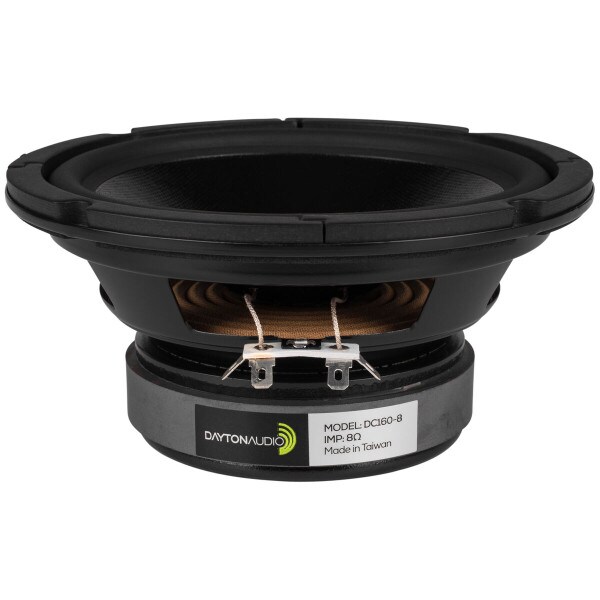

1Dayton Audio DC160-8 6-1/2" Classic Woofer
260-402
1Port Tube 1-1/2" ID x 4" L Flared
260-520
1Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"
-1Classix II Bookshelf Speaker Knock-Down Cabinet

Note: Screws, binding posts, and speaker wire are not included. Crossover components may be substituted with parts of equal or higher quality depending on available inventory.

Specifications:

  • Power:  60 watts RMS/100 watts max
  • Frequency response: 35-20,000 Hz
  • Impedance: 8 Ohm
  • Sensitivity: 86 dB 1W/1m
  • Dimensions:  15" H x 8.5" W x 11-3/4" D

Product Details

BrandParts Express
ModelClassix II
Part Number300-7112
UPC848864034676
Weight20.78

Product Specifications

Cabinet Dimensions (HxWxD)15" x 8.5" x 11.75
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
Configuration2-way
Input Rating8 ohm
Speaker TypeBookshelf
Woofer Diameter6.5"
