Clark Synthesis Diluvio Face Ring Kit AQP500

Clark SynthesisPart # 300-877
Model: AQP500
Use the AQP500 to install your Clark Synthesis AQ339 Diluvio Underwater Speaker into a pool niche. Keep your Diluvio out of harm's way and still enjoy your music from underwater.

Key Features

  • Mount your Diluvio in a pool niche
  • Remove all risk of stepping on your Diluvio
  • Never worry about setting it up in the pool again
Your Price: $179.95
+ FREE SHIPPING
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when Clark Synthesis Diluvio Face Ring Kit AQP500 is back in stock or available for preorder.

Special Order Item Ships in 14-21 Days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

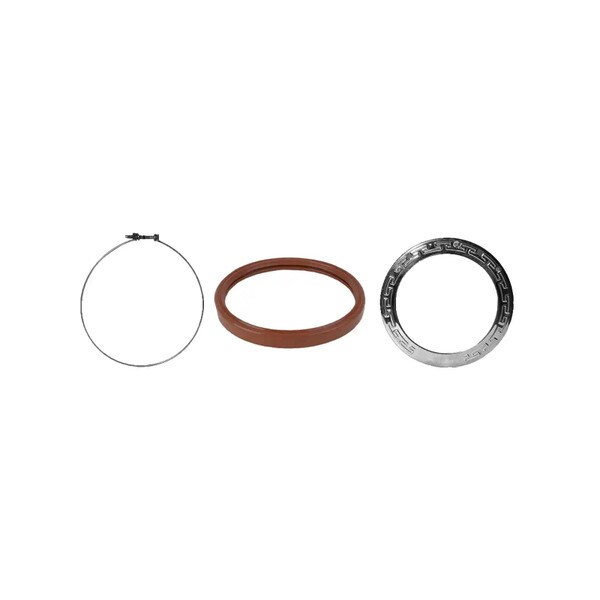

Clark Synthesis Diluvio Face Ring Kit AQP500

Step 1: Install the mounting gasket

Carefully remove the speaker from its box. Install the mounting gasket around the rubber ring of the sound lens. Insure the mounting gasket is installed evenly and is firmly seated against the entire circumference of the sound lens.

Step 2: Attach the face ring

Place the speaker on a non-abrasive surface with the sound lens facing up. Slide the wire clamp over the sound lens. Set the face ring on the mounting gasket. Be sure each clamp is outside the mounting gasket. Hold the entire assembly together and flip it over. Carefully position the sound lens so it is centered over the face ring. Place the wire clamp into each clamp tab, verifying the nut and bolt adjuster is accessible when the clamp is placed into the tabs.

Step 3: Tighten the wire clamp

Tighten the wire clamp with a wrench and a Phillips screwdriver. Tighten completely. The wire clamp should be firmly seated in each clamp tab and the speaker should be secure.

Step 4: Place the speaker in the niche

Pull the speaker wire through the conduit hole in the back of the niche. For future access, leave 10 to 12 feet (3 to 3.5 meters) of speaker wire in the niche. Place the speaker inside the light niche. Carefully set the lock tab behind the receiving plate.

Step 5: Secure the face ring to the niche

Align the bolt with the threaded hole. Attach the face ring to the niche by tightening the bolt. Connect the speaker to your audio system – and enjoy!

Product Details

BrandClark Synthesis
ModelAQP500
Part Number300-877
UPC788379747916
Unit of MeasureEach
Weight1.4
