With its low-frequency response and excellent sensitivity, the Ciare PW257 produces deep, rich bass and clear, detailed mid-range frequencies. The cone is made from a lightweight yet rigid material that allows for precise, accurate sound reproduction.
We'll send you an email when Ciare PW257 10" High Power Woofer is back in stock or available for preorder.

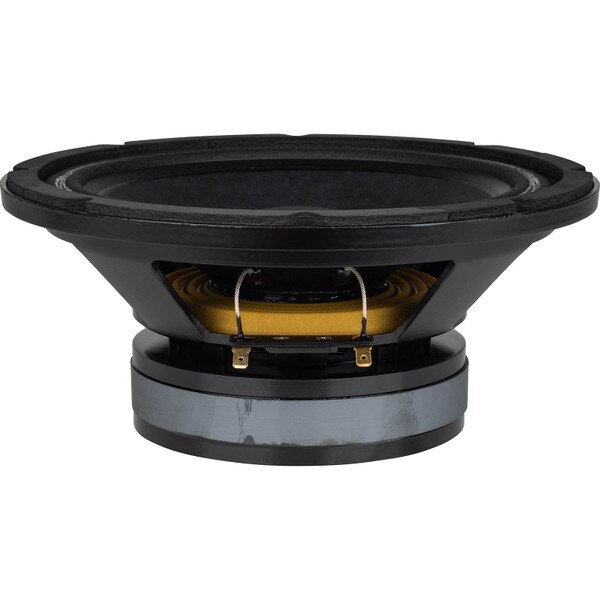

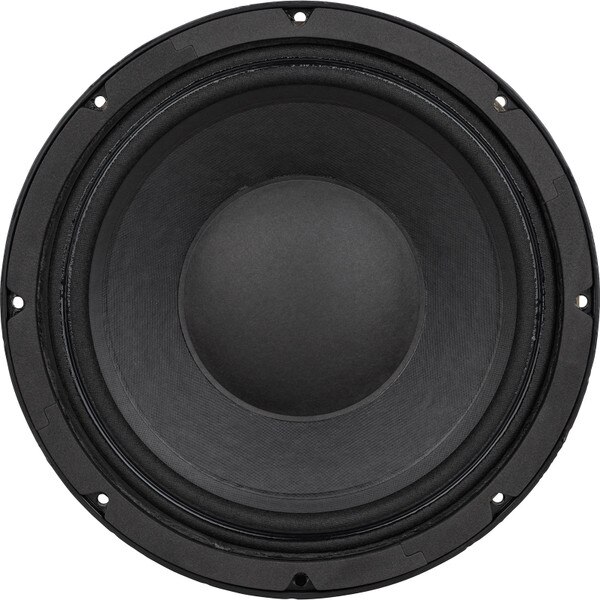

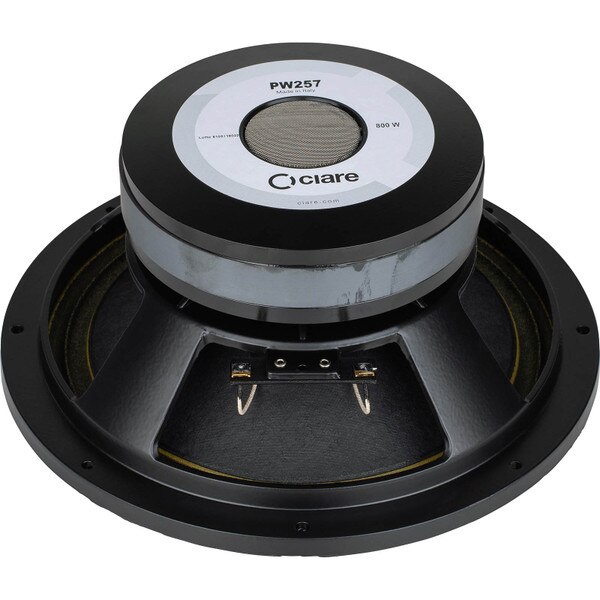

Introducing the Ciare PW257, the 10-inch high power woofer that's designed to deliver an unmatched audio experience. With a rugged build and high-quality materials, this speaker is engineered to withstand even the most demanding conditions.
The PW257 features a powerful ferrite magnet and a high-temperature voice coil that delivers exceptional performance, making it perfect for high-power applications. Whether you're building a custom home theater system, a professional sound system, or upgrading your car audio, the PW257 is the ideal choice.
Installation is a breeze thanks to the PW257's standard mounting options, and the speaker is compatible with a wide range of enclosures. Plus, its sleek and stylish design ensures it looks great no matter where you install it.
Overall, the Ciare PW257 is a top-of-the-line woofer that offers exceptional performance, durability, and versatility. Upgrade your sound system today with the PW257 and experience audio like never before.
Product Details | |
|---|---|
| Brand | Ciare |
| Model | PW257 |
| Part Number | 293-146 |
| UPC | 848864073217 |
| Unit of Measure | Each |
| Weight | 12.3 |
Product Specifications | |
|---|---|
| Nominal Diameter | 10" |
| Bolt Circle Diameter | 9.96 |
| Power Handling (RMS) | 400 Watts |
| Power Handling (MAX) | 800 Watts |
| Impedance | 8Ω |
| Frequency Response | 50 to 3,000Hz |
| Sensitivity | 96dB 2.83V/1m |
| Voice Coil Diameter | 3" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 57Hz |
| DC Resistance (Re) | 5.21Ω |
| Voice Coil Inductance (Le) | 0.94mH |
| Mechanical Q (Qms) | 3.2 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.3 |
| Compliance Equivalent Volume (Vas) | 1.09ft³ |
| BL Product (BL) | 15.86T·m |
| Diaphragm Mass Inc. Airload (Mms) | 44.9g |
| Maximum Linear Excursion (Xmax) | 5.5mm |
| Surface Area of Cone (Sd) | 353cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 10.55" |
| Baffle Cutout Diameter | 9.25" |
| Depth | 4.72" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.3ft³ |
| Sealed F3 | 152Hz |
| Vented Volume | 0.75ft³ |
| Vented F3 | 70.4Hz |
California Prop 65WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Ciare PW257 Specifications
