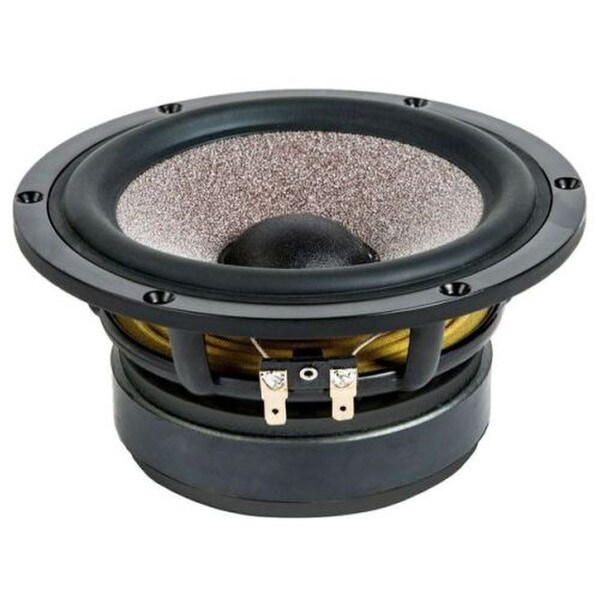

Ciare HWG160 6.5" Woofer 8 Ohm

CiarePart # 293-137
Model: HWG160
3 Questions, 13 Answers or
The Ciare HWG160 6.5" Woofer delivers deep, powerful bass with excellent clarity, making it a perfect choice for a variety of speaker systems. Engineered for smooth, extended low-frequency response, this woofer excels in both home audio and professional setups, providing robust sound in a compact form.

Key Features

  • 6.5" woofer delivers rich, impactful bass for immersive low-frequency sound
  • Smooth frequency response across a wide range of applications ensures balanced audio performance
  • Compact design fits easily into mid-sized speaker enclosures without compromising sound quality
  • High-quality construction reduces distortion, offering clean and precise sound even at higher volumes
  • Lightweight design improves sensitivity and responsiveness for dynamic audio reproduction
  • Ideal for car and home audio systems requiring deep, accurate bass
Your Price: $174.94
+ FREE SHIPPING
MSRP: $233.21
Save $58.27 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Ciare HWG160 6.5" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare HWG160 6.5" Woofer 8 Ohm

The Ciare HWG160 6.5" Woofer is designed to deliver exceptional low-frequency performance, bringing depth and power to any speaker system. Its 6.5" cone offers extended bass response that enhances music and audio playback, making it ideal for home theaters, studio monitors, or car audio systems. Despite its compact size, the HWG160 produces a full-bodied bass that enriches the listening experience across a wide variety of genres.

With its high-quality materials and engineering, the HWG160 minimizes distortion even at high volumes, ensuring clean and accurate sound reproduction. Whether you’re playing music, watching movies, or mixing tracks, this woofer delivers the kind of precise, detailed bass that brings out the richness in your audio. The lightweight construction also enhances the woofer’s sensitivity, allowing for quick, responsive sound that adapts to dynamic changes in the audio.

In addition to its impressive audio performance, the HWG160’s compact design allows it to fit easily into mid-sized speaker enclosures without sacrificing sound quality. Its versatility makes it an excellent choice for audio engineers and enthusiasts alike, offering a balance of power, precision, and reliability. Whether you’re upgrading an existing system or building a new one, the Ciare HWG160 provides the deep, powerful bass needed for high-quality sound.

Specifications

  • Nominal Diameter: 165 mm (6.5 in)
  • Nominal Power Handling: 130 W
  • Sensitivity: 91 dB
  • Voice Coil Diameter: 38 mm (1.5 in)
  • Winding Depth: 17 mm (0.67 in)
  • Nominal Impedance: 8 Ohms
  • Continuous Power Handling: 260 W
  • Frequency Range: 45 Hz - 7000 Hz
  • Former Material: Kapton
  • Magnetic Gap Depth: 8 mm (0.31 in)

Parameters

  • Fs: 39 Hz
  • Qes: 0.28
  • Qts: 0.27
  • Sd: 141 cm² (21.86 sq²)
  • Xmax: 6.5 mm (0.26 in)
  • Bl: 8.9 Tm
  • d: 134 mm (5.28 in)
  • Re: 5.4 Ω
  • Qms: 4.9
  • Vas: 27 dm³ (0.95 ft³)
  • η0: 0.6 %
  • Mms: 16.2 g
  • Le: 1.4 mH
  • EBP: 139 Hz

Design

  • Surround Shape: Rubber
  • Recommended Enclosure: 15 dm³ (0.53 ft³)
  • Suspension: Cotton fabric
  • Cone Shape: Exponential
  • Recommended Loading: Vented Box
  • Cone Material: Doped cellulose fiber

Mounting and Shipping Info

  • Overall Diameter: 174 mm (6.85 in)
  • Baffle Cutout Diameter: 146 mm (5.75 in)
  • Flange and Gasket Thickness: 6 mm (0.24 in)
  • Bolt Quantity: 6 pcs
  • Bolt Circle Diameter: 135.5 mm (5.33 in)
  • Depth: 77 mm (3.03 in)
  • Net Weight: 1.7 kg (3.74 lbs.)
  • Basket Material: Aluminum
  • Bolt Diameter: 4.5 mm (0.18 in)

Product Details

BrandCiare
ModelHWG160
Part Number293-137
Unit of MeasureEach
Weight6

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance8Ω
Frequency Response45 to 7,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)1.4mH
Mechanical Q (Qms)4.9
Electromagnetic Q (Qes)0.28
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)0.95ft³
BL Product (BL)8.9T·m
Diaphragm Mass Inc. Airload (Mms)16.2g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)141cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.85"
Baffle Cutout Diameter5.75"
Depth3.27"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0937ft³
Sealed F3125.2Hz
Vented Volume0.212ft³
Vented F377.46Hz
