  • Ciare HT200 3/4" Dome Tweeter 8 Ohm

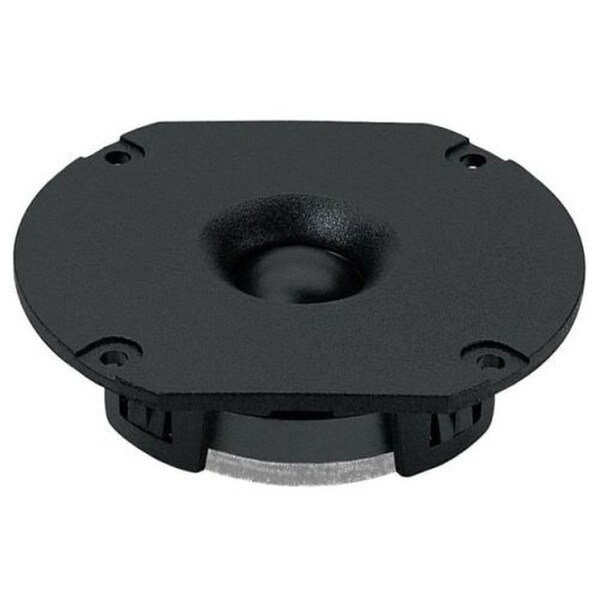

Ciare HT200 3/4" Dome Tweeter 8 Ohm

CiarePart # 293-192
Model: HT200

The Ciare HT200 3/4" Dome Tweeter delivers crisp, high-frequency audio performance, making it an excellent choice for high-fidelity speaker setups and car audio tweeters. With its compact design and precision engineering, it enhances sound clarity, adding depth and detail to any speaker system.

Key Features

  • High-performance 3/4" dome design for precise and clear high-frequency response
  • Lightweight construction provides quick, accurate sound reproduction
  • Compact size allows for easy integration into a variety of speaker designs
  • Durable materials built to withstand continuous use in professional or home audio systems
  • 60 watts power handling to make itself heard loud and clear
Your Price: $43.77
MSRP: $58.36
Save $14.59 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Ciare HT200 3/4" Dome Tweeter 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare HT200 3/4" Dome Tweeter 8 Ohm

The Ciare HT200 3/4" Dome Tweeter is designed to deliver outstanding high-frequency performance that complements any speaker system. With its precision 3/4" dome, this tweeter produces crisp, articulate highs, adding clarity to your music and audio. Whether you’re upgrading a home speaker setup or upgrading your car, the HT200 offers impressive sound reproduction in a compact, durable package.

The tweeter’s lightweight construction further enhances its performance, offering quick, accurate sound response that brings out the subtle details in your audio. Built with durability in mind, the Ciare HT200 is crafted from high-quality materials that can handle the demands of continuous use. Its compact design makes it versatile enough to fit into various speaker enclosures without compromising on performance, making it a perfect fit for both new builds and retrofits. Whether you're fine-tuning your personal audio system or designing a full-scale professional sound setup, this tweeter delivers reliable, exceptional performance.

Specifications

  • Nominal Diameter: 20 mm (0.75 in)
  • Nominal Power: Handling 60 W
  • Sensitivity: 90 dB
  • Voice Coil Diameter: 20 mm (0.78 in)
  • Nominal Impedance: 8 Ohms
  • Continuous Power Handling: 100 W
  • Frequency Range: 2,000 Hz - 20,000 Hz
  • Winding Depth: 2 mm (0.08 in)
  • Cone Material: Polyamide

Parameters

  • Fs: 1000 Hz
  • Qes: 1.6 Qts 1.2
  • Mms: 0.3 g
  • Le: 0.05 mH
  • EBP: 625 Hz
  • Re: 5.6 Ω
  • Qms: 4.7
  • Sd: 4 cm² (0.62 sq²)
  • Bl: 2.6 Tm
  • d: 23 mm (0.91 in)

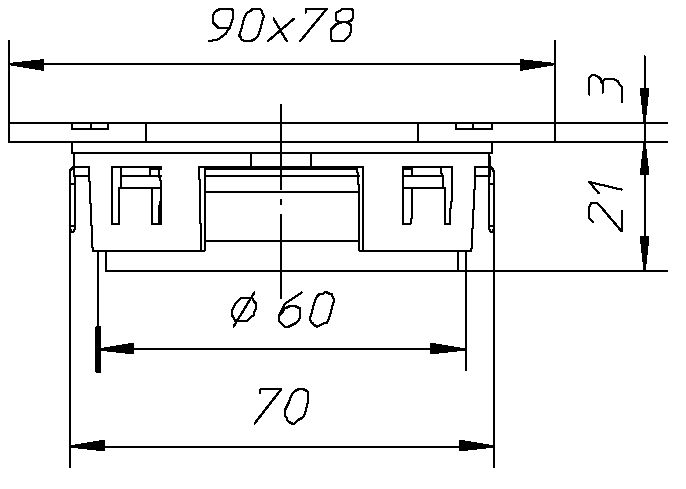

Mounting and Shipping Info

  • Overall Diameter: 90 mm
  • Baffle Cutout Diameter: 70 mm (2.76 in)
  • Flange and Gasket Thickness: 3 mm (0.12 in)
  • Bolt Quantity: 4 pcs
  • Bolt Circle Diameter: 81 mm (3.19 in)
  • Depth: 24 mm (0.94 in)
  • Net Weight: 0.28 kg (0.62 lb)
  • Basket Material: Plastic Flange
  • Bolt Diameter: 4 mm (0.16 in)

Product Details

BrandCiare
ModelHT200
Part Number293-192
Unit of MeasureEach
Weight1

Product Specifications

Tweeter TypeCeramic Dome
Power Handling (RMS)100 Watts
Impedance8Ω
Frequency Response2000 to 20,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1000Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)4.7
Electromagnetic Q (Qes)1.6
Total Q (Qts)1.2

Mounting Information

Overall Outside Diameter3.54"
Depth0.94"
