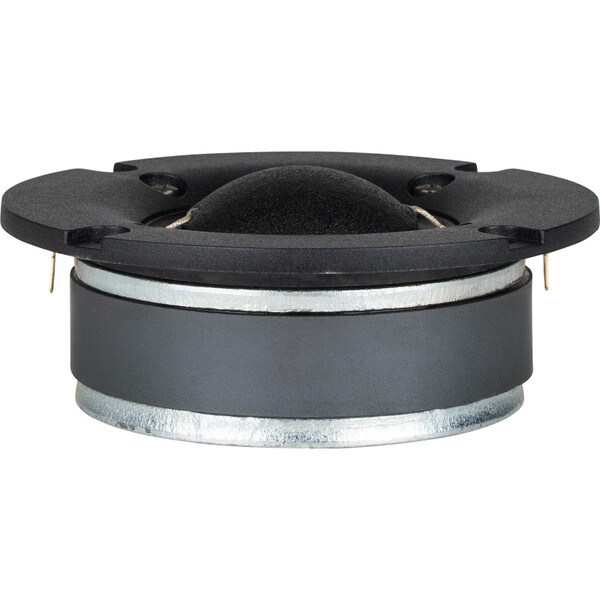

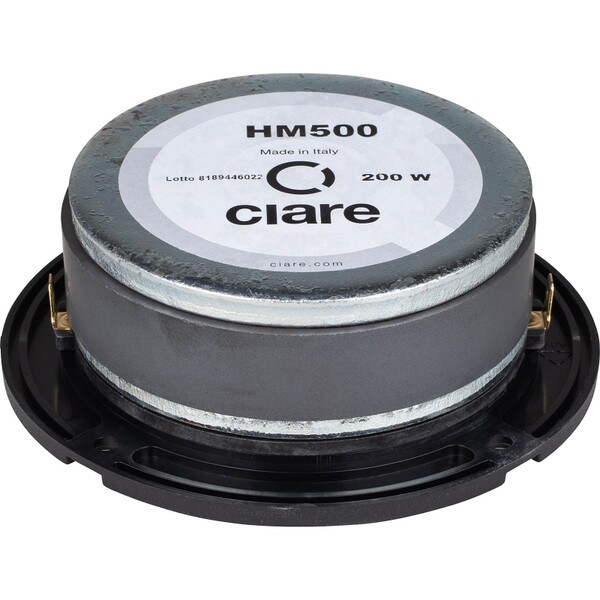

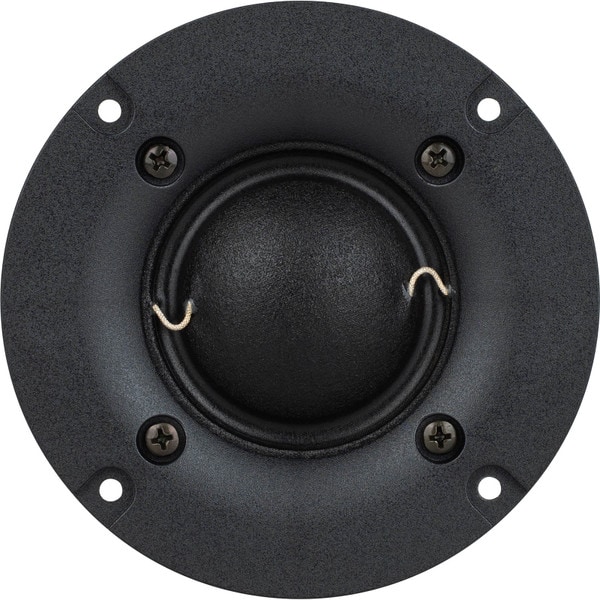

Ciare HM500 2" Dome Midrange 8 Ohm

CiarePart # 293-130
Model: HM500

The Ciare HM500's sleek and modern design makes it a perfect complement to any home or professional sound system. Its lightweight and compact size make it easy to install and incorporate into any audio setup.

Key Features

  • 2" damped cloth dome for wide 700 to 5,000 Hz passband
  • Large ceramic magnet for excellent sensitivity
  • Small diameter faceplate for closer center-to-center distances
Your Price: $105.18
+ FREE SHIPPING
MSRP: $140.24
Save $35.06 (25%)
Bulk Pricing
1 In Stock
Get Notified When Available

We'll send you an email when Ciare HM500 2" Dome Midrange 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare HM500 2" Dome Midrange 8 Ohm

The Ciare HM500 2" Dome Midrange is a high-quality driver that delivers exceptional sound quality and power handling capabilities. This midrange features a 2-inch dome diaphragm made from a high-strength fiber material that provides a flat frequency response and excellent transient response. The driver also features a ferrite magnet, which provides a strong magnetic field in a durable and rugged design.

The HM500's solid build quality and advanced construction ensure that this midrange can handle high volumes without distortion, making it perfect for use in a wide range of applications. Its efficient and compact design makes it suitable for use in small to medium-sized speakers, as well as in automotive and marine audio systems.

Product Details

BrandCiare
ModelHM500
Part Number293-130
UPC848864073132
Unit of MeasureEach
Weight3.9

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter4.57
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response700 to 5,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)550Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)0.8
Total Q (Qts)0.66
BL Product (BL)7.5T·m
Diaphragm Mass Inc. Airload (Mms)2g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)26cm²

Materials of Construction

Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.12"
Baffle Cutout Diameter4.06"
Depth1.77"
# Mounting Holes4
