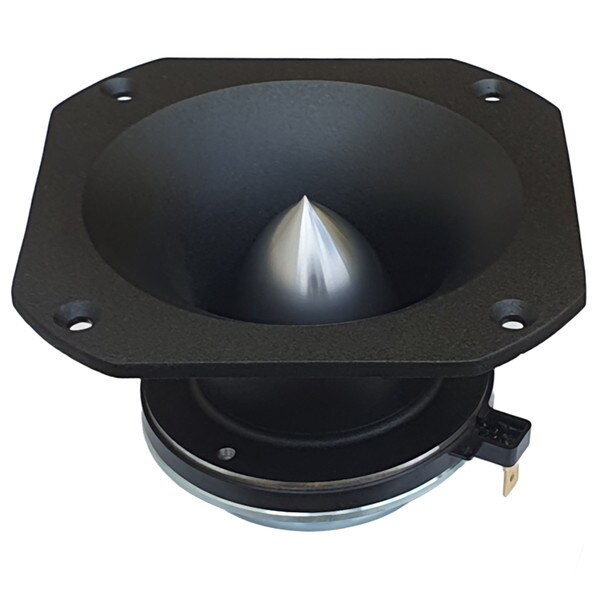

Ciare CT441 1.75" Neodymium Horn Tweeter

Name: Ciare CT441 1.75" Neodymium Horn Tweeter
Brand: Ciare
SKU: 293-105
Price: 164.28 USD
Availability: InStock

CiarePart # 293-105

Model: CT441

The Ciare CT441 1.75" Neodymium Horn Tweeter combines high-efficiency performance with superior clarity, making it ideal for high-power audio applications. Its compact neodymium design delivers excellent power handling, while the horn structure enhances directional sound dispersion for focused high-frequency output.

Key Features

1.75" neodymium driver delivers high-frequency clarity and precision
Compact horn design provides enhanced directional sound dispersion
Efficient power handling up to 500 watts ensures optimal performance at higher volumes
Lightweight neodymium magnet offers excellent sensitivity for quick response
Durable materials support prolonged use in demanding environments
Optimized for integration into a variety of speaker systems and enclosures

See all items in Horn Loaded Tweeters & Midranges

Your Price: $164.28

+ FREE SHIPPING

MSRP: $219.04

Bulk Pricing

In Stock

Get Notified When Available

We'll send you an email when Ciare CT441 1.75" Neodymium Horn Tweeter is back in stock or available for preorder.

Ships next business day. Details

QtyQuantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Overview

Ciare CT441 1.75" Neodymium Horn Tweeter

The Ciare CT441 1.75" Neodymium Horn Tweeter is engineered to provide powerful high-frequency reproduction, delivering a sharp, detailed sound that stands out in professional audio setups. With its 1.75" neodymium driver, the CT441 ensures excellent clarity, making it the perfect tweeter for setups that demand precision in the higher frequency ranges. Whether you're working on a stage or enhancing a personal audio system, this tweeter offers the performance needed to deliver a rich, detailed sound experience.

One of the key advantages of the CT441 is its efficient horn design, which provides focused and directional sound dispersion. This helps to maximize the reach of high-frequency sound in larger environments, delivering clear, direct audio even at a distance. Its 250-watt power handling capability allows it to maintain exceptional performance even at high volumes, making it ideal for both professional live sound and high-output home speaker systems.

Built with long-lasting materials and a compact design, the CT441 is designed to withstand the demands of continuous use in various environments. Its neodymium magnet provides a lightweight structure without sacrificing power or sensitivity, ensuring quick and accurate sound response. Whether you’re integrating it into a new speaker design or upgrading an existing system, the CT441 offers flexibility, reliability, and high-performance sound.

Specifications

Nominal Diameter: 44 mm (1.75 in)
Nominal Power: Handling 250 W
Sensitivity: 110 dB
Recommended Crossover: 2 kHz
Winding Material: Aluminum
Flux Density: 1.65 T
Nominal Impedance: 8 Ohms
Continuous Power Handling: 500 W
Frequency Range: 2,000 Hz - 20,000 Hz
Voice Coil Diameter: 44 mm (1.75 in)
Winding Depth: 2.7 mm (0.11 in)

Parameters

Fs: 1,400 Hz
Re: 4.5 Ω

Design:

Cone Shape: Planar
Con Material: Mylar
Connection Type: Faston

Mounting and Shipping Info

Overall Diameter: 112 mm
Baffle Cutout Diameter: 95 mm (3.75 in)
Flange and Gasket Thickness: 4 mm (0.16 in)
Bolt Quantity: 4 pcs
Bolt Circle Diameter: 116 mm (4.57 in)
Depth: 68 mm (2.68 in)
Net Weight: 0.8 kg (1.76 lb)
Basket Material: Aluminum
Bolt Diameter: 4.5 mm (0.18 in)

Product Details
Brand	Ciare
Model	CT441
Part Number	293-105
Unit of Measure	Each
Weight	1.65

Product Specifications
Diaphragm Material	Poly / Mylar
Exit Diameter	1.75"
Mounting Type	4-Bolt
Power Handling (RMS)	250 Watts
Impedance	8Ω
