CLEARANCE Ciare CMI250ND 10" Neodymium Woofer 4 Ohm

CiarePart # 293-122
Model: CMI250ND

The Ciare CMI250ND solid build quality and advanced construction ensure that this woofer can handle high volumes without distortion, making it perfect for use in a wide range of applications. Its efficient and compact design makes it suitable for use in small to medium-sized speakers, as well as in automotive and marine audio systems.

Key Features

  • Multi-array neodymium motor for higher Bl and above average sensitivity
  • Premium upgrade for car, boat, motorcycle, ATV and more
  • 2" voice coil for up to 220 watt power handling
Get Notified When Available

We'll send you an email when Ciare CMI250ND 10" Neodymium Woofer 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

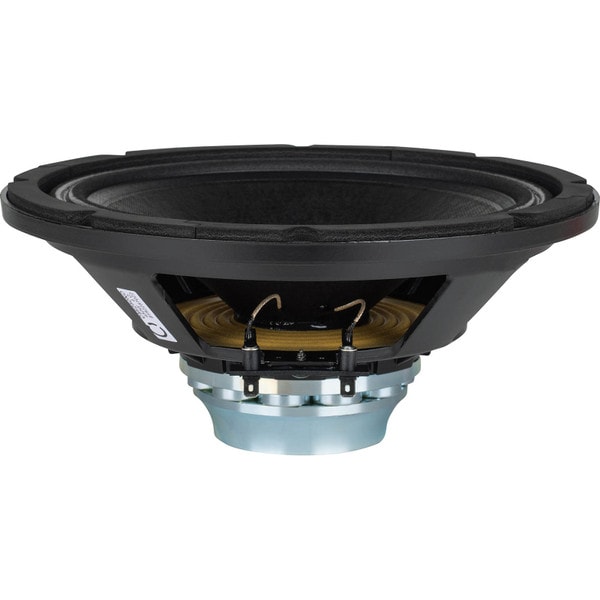

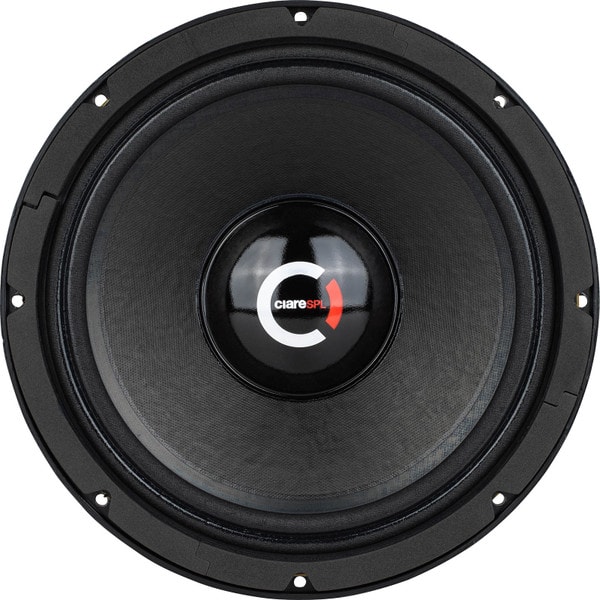

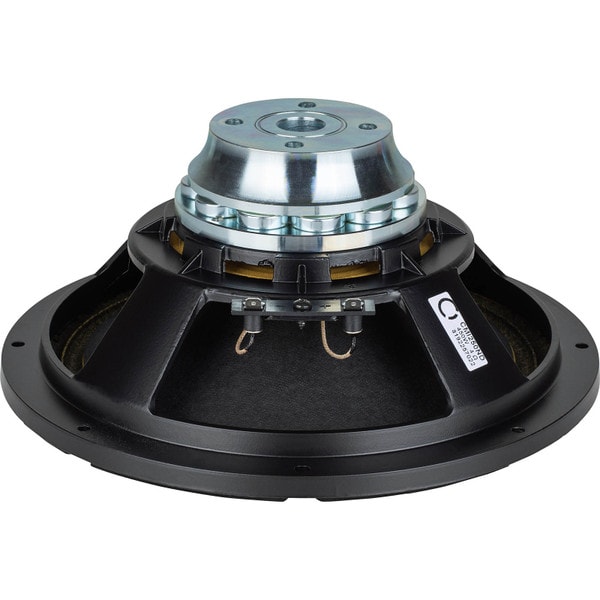

Ciare CMI250ND 10" Neodymium Woofer 4 Ohm

The Ciare CMI250ND 10" Neodymium Woofer is an exceptional driver that delivers powerful and accurate sound reproduction with excellent power handling capabilities. This woofer features a 10" cone made from a composite material that provides a flat frequency response and excellent transient response. The driver also features a neodymium magnet, which provides a powerful magnetic field in a compact and lightweight design.

The CMI250ND's modern design makes it a perfect complement to any home or professional sound system. Its lightweight and compact size make it easy to install and incorporate into any audio setup.

Whether you're a DIY audio enthusiast or a professional sound engineer, the Ciare CMI250ND 10" Neodymium Woofer is the perfect choice for any audio project that demands exceptional sound quality and power handling capabilities.

Product Details

BrandCiare
ModelCMI250ND
Part Number293-122
UPC848864073088
Unit of MeasureEach
Weight6.1

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.96
Power Handling (RMS)220 Watts
Power Handling (MAX)450 Watts
Impedance4Ω
Frequency Response80 to 3,500Hz
Sensitivity97.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)59Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.39mH
Mechanical Q (Qms)10.8
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)1.2ft³
BL Product (BL)9T·m
Diaphragm Mass Inc. Airload (Mms)38g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)356cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.55"
Baffle Cutout Diameter9.25"
Depth4.57"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.45ft³
Sealed F398.2Hz
Vented Volume1ft³
Vented F360.6Hz
