  • Ciare CMI200ND 8" Neodymium Woofer 4 Ohm

CLEARANCE Ciare CMI200ND 8" Neodymium Woofer 4 Ohm

CiarePart # 293-120
Model: CMI200ND

Introducing the Ciare CMI200ND 8" Neodymium Woofer, the ultimate choice for audiophiles and sound enthusiasts. Engineered with the latest technology and top-grade materials, this high-performance woofer delivers exceptional sound quality and precise, dynamic bass.

Key Features

  • Premium upgrade for car, boat, motorcycle, ATV and more
  • 2" voice coil for up to 220 watt power handling
  • Multi-array neodymium motor for higher Bl and above average sensitivity
Get Notified When Available

We'll send you an email when Ciare CMI200ND 8" Neodymium Woofer 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

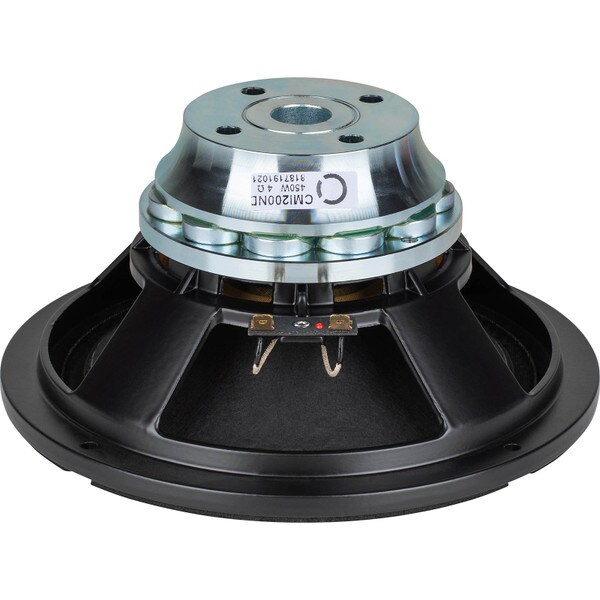

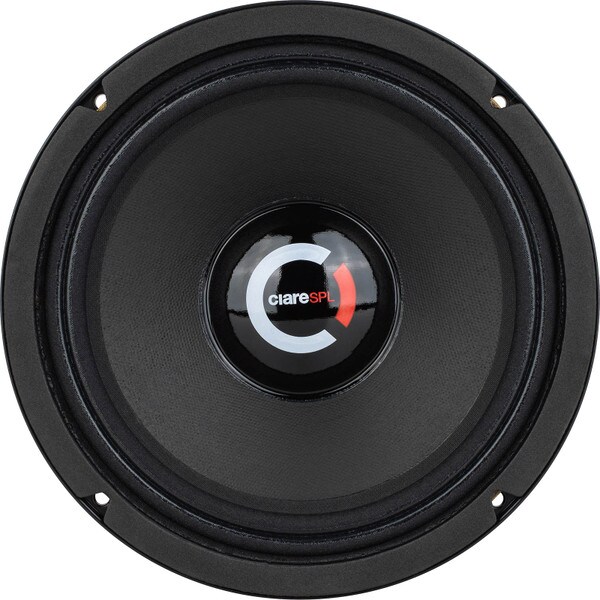

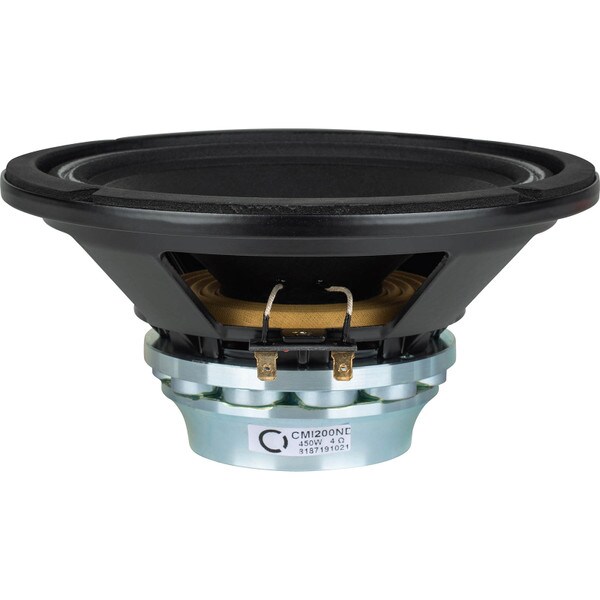

Ciare CMI200ND 8" Neodymium Woofer 4 Ohm

The CMI200ND's neodymium magnet ensures powerful sound output, while its lightweight construction makes it easy to install and handle. With a rugged design that's built to last, this woofer is capable of withstanding even the most intense use, ensuring long-lasting performance that you can rely on.

Whether you're looking to upgrade your home theater system or design a high-end audio system for your business, the Ciare CMI200ND is the perfect choice. With its advanced technology and superior sound quality, it's the ultimate solution for any sound application.

Experience the difference for yourself and elevate your sound system to the next level with the Ciare CMI200ND 8" Neodymium Woofer.

Product Details

BrandCiare
ModelCMI200ND
Part Number293-120
UPC848864073071
Unit of MeasureEach
Weight5

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.64
Power Handling (RMS)220 Watts
Power Handling (MAX)450 Watts
Impedance4Ω
Frequency Response90 to 5,000Hz
Sensitivity98.5dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)80Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.38mH
Mechanical Q (Qms)7.5
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)0.44ft³
BL Product (BL)8.8T·m
Diaphragm Mass Inc. Airload (Mms)20.5g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)214cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.19"
Baffle Cutout Diameter7.28"
Depth4.76"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.18ft³
Sealed F3170.3Hz
Vented Volume0.68ft³
Vented F372Hz
