  • Ciare 15.00SW-8 15" High Power Subwoofer 8 Ohm

CLEARANCE Ciare 15.00SW-8 15" High Power Subwoofer 8 Ohm

CiarePart # 293-166
Model: 15.00SW-8

Introducing the Ciare 15.00SW-8, a 15" high power subwoofer designed for the most demanding applications. With its robust construction and advanced features, this subwoofer delivers powerful, low-frequency output with exceptional clarity and accuracy.

Key Features

  • Designed for ultimate output and durability
  • Large 4" diameter voice coil for 1,000 watt power handling
  • High 14mm Xmax for added bass extension
Get Notified When Available

We'll send you an email when Ciare 15.00SW-8 15" High Power Subwoofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

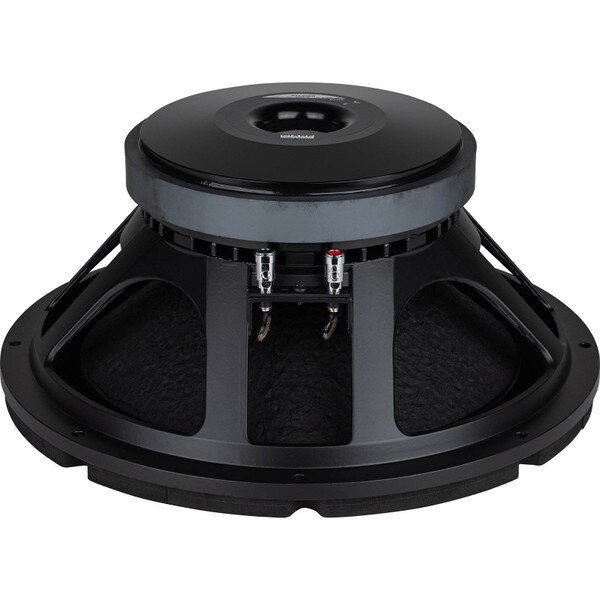

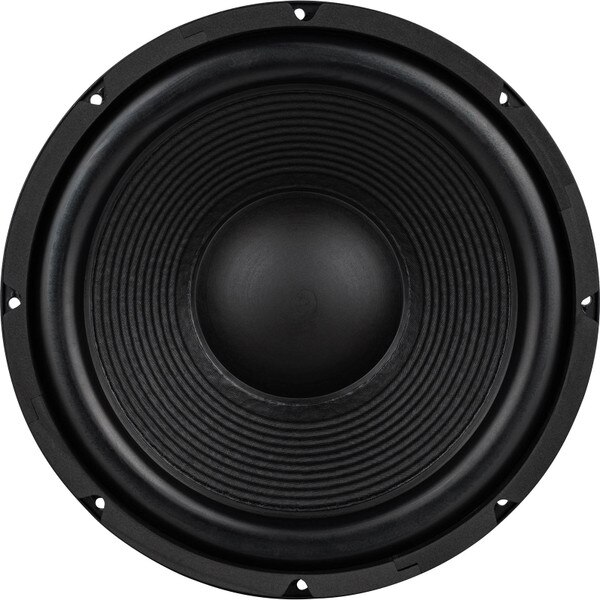

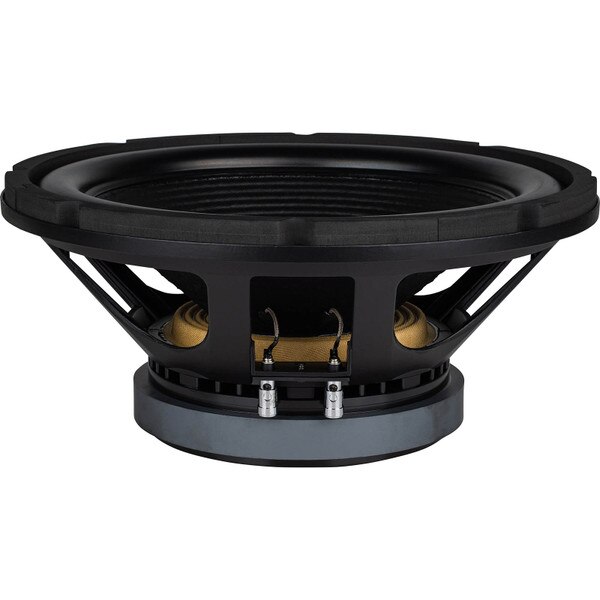

Ciare 15.00SW-8 15" High Power Subwoofer 8 Ohm

Featuring a high-power 8 ohm voice coil, the 15.00SW-8 can handle up to 1000 watts of continuous power, making it ideal for use in high-output, professional-grade sound systems. The subwoofer also features a high-excursion design, allowing it to move large amounts of air and produce deep, impactful bass tones.

To ensure long-lasting durability and reliability, the 15.00SW-8 is constructed using only the highest-quality materials, including a reinforced paper cone, large rubber surround, and heavy-duty steel frame. The subwoofer is also equipped with a vented pole piece and aluminum voice coil former, which help to dissipate heat and reduce power compression, ensuring maximum performance and efficiency.

Whether you're a professional sound engineer or a serious audio enthusiast, the Ciare 15.00SW-8 is the perfect choice for achieving powerful, high-quality bass in any sound system.

Product Details

BrandCiare
Model15.00SW-8
Part Number293-166
UPC848864075440
Unit of MeasureEach
Weight28

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.57
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response20 to 200Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)29Hz
DC Resistance (Re)6.75Ω
Voice Coil Inductance (Le)2.4mH
Mechanical Q (Qms)5.6
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)3.92ft³
BL Product (BL)25T·m
Diaphragm Mass Inc. Airload (Mms)220g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)780cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.28"
Baffle Cutout Diameter13.94"
Depth7.01"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.074ft³
Sealed F360.52Hz
Vented Volume3.203ft³
Vented F331.69Hz
