Celestion TF1530 15" Professional Speaker 400W

CelestionPart # 294-2092
Model: TF1530
Celestion's TF1530 15" speaker will produce excellent results in PA sound system applications that demand a reliable, extremely efficient, and good sounding low frequency or midrange driver.

Key Features

  • High output 15" bass and midrange driver
  • Efficient magnet assembly enables 99 dB sensitivity and 400 watts RMS power handling
  • 3" high temperature copper voice coil wound on polyimide for increased reliability
  • Double half-roll surround for greater excursion control
  • Superb price/performance ratio
Your Price: $155.00
+ FREE SHIPPING
MSRP: $232.50
Save $77.50 (33%)
Bulk Pricing
7 In Stock
Get Notified When Available

We'll send you an email when Celestion TF1530 15" Professional Speaker 400W is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion TF1530 15" Professional Speaker 400W

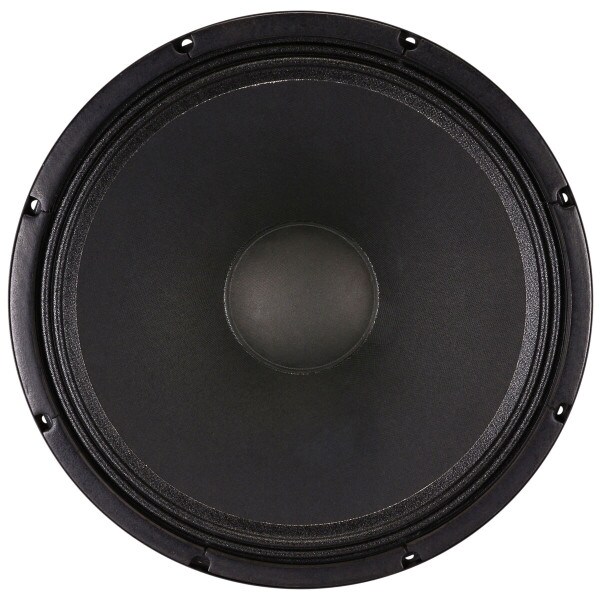

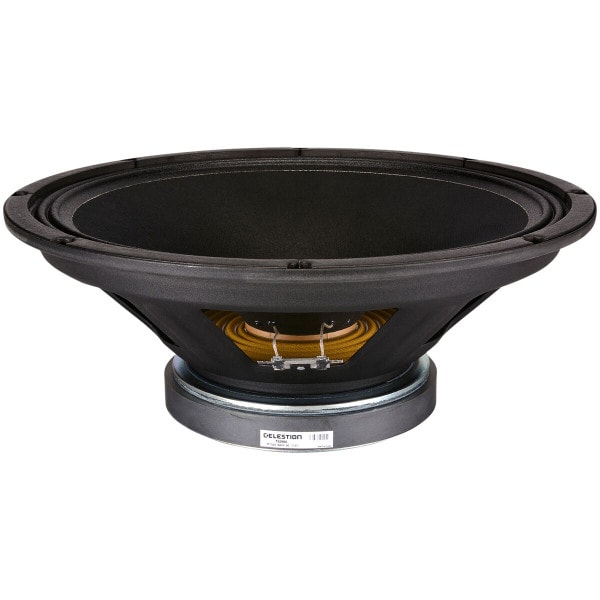

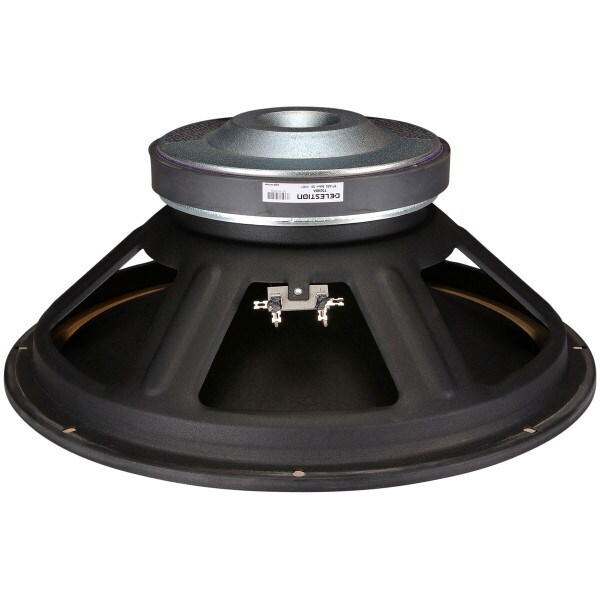

The Celestion TF1530 15" pro speaker features a strong, non-resonant stamped steel frame, 3" copper voice coil, and powerful 86 oz. ceramic ferrite magnet. This combination results in rugged durability, high power handling, and extreme efficiency. The TF1530 will perform superbly as the bass component in 2-way PA loudspeakers, as well as deliver superior reproduction when deployed as a midrange device in large-scale sound reinforcement systems.

Product Details

BrandCelestion
ModelTF1530
Part Number294-2092
UPC739894529853
Unit of MeasureEach
Weight17.95

Product Specifications

Nominal Diameter15"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance
Frequency Response40 to 3,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.82Ω
Voice Coil Inductance (Le)0.96mH
Mechanical Q (Qms)2.28
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.28
Compliance Equivalent Volume (Vas)5.73ft³
Mechanical Compliance of Suspension (Cms)0.16mm/N
BL Product (BL)21.22T·m
Diaphragm Mass Inc. Airload (Mms)91.65g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.16"
Baffle Cutout Diameter13.86"
Depth6.42"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F3118.7Hz
Vented Volume3ft³
Vented F347.4Hz
