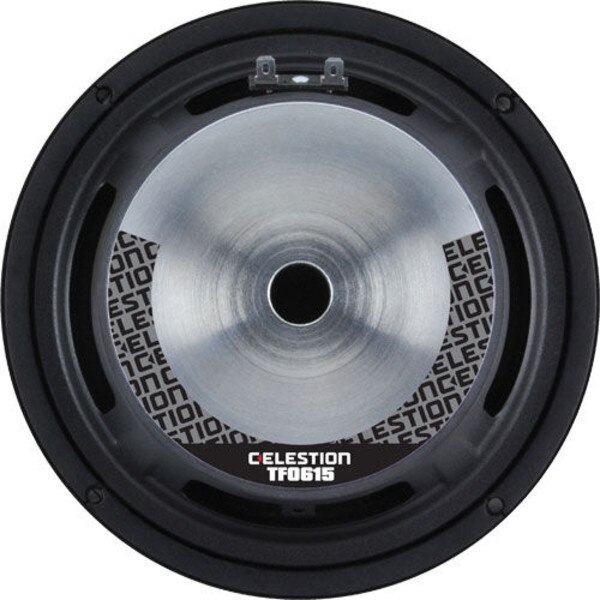

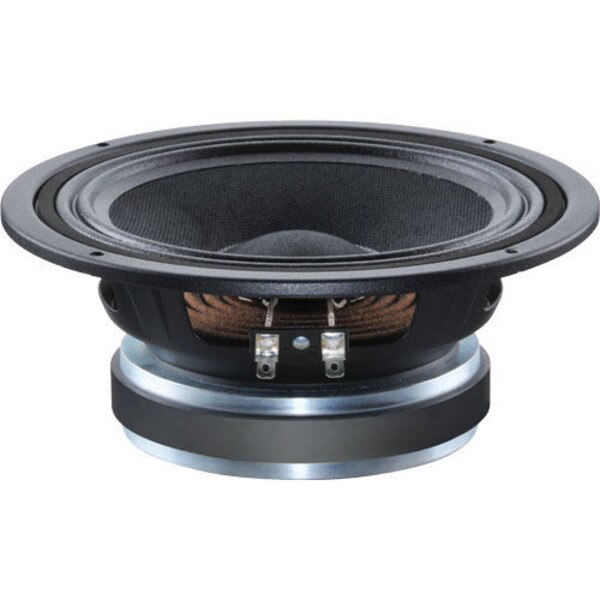

Celestion TF0615 6" 100 Watt Professional Woofer 8 Ohm

CelestionPart # 294-2052
Model: TF0615
The Celestion TF0615 6" woofer serves equally well as a woofer or dedicated midrange component when used in pro loudspeaker systems.

Key Features

  • 1.5" high temperature copper voice coil wound on polyimide former for increased reliability
  • Optimal performance achieved in sealed enclosures
  • Perfect for use in 2-way systems
Your Price: $59.00
MSRP: $88.50
Save $29.50 (33%)
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when Celestion TF0615 6" 100 Watt Professional Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 5 hr 10 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion TF0615 6" 100 Watt Professional Woofer 8 Ohm

The versatile Celestion TF0615 6" woofer offers excellent performance when used in bass and dedicated midrange applications. Its 1.5" copper voice coil is set onto a polyimide former, which assures good long-term resistance to the detrimental effects of extreme high temperatures.

A cloth sealed surround is combined with an optimized Kevlar-loaded paper cone, to ensure the speaker's frequency response is smooth and extended. An intelligent heat vented motor assembly enhances cooling, and a rigid chassis design for maximum energy transfer.

Product Details

BrandCelestion
ModelTF0615
Part Number294-2052
UPC739894588959
Unit of MeasureEach
Weight4.15

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.63
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response85 to 6,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)104.7Hz
DC Resistance (Re)7.08Ω
Voice Coil Inductance (Le)0.47mH
Mechanical Q (Qms)3.95
Electromagnetic Q (Qes)0.72
Total Q (Qts)0.61
Compliance Equivalent Volume (Vas)0.23ft³
Mechanical Compliance of Suspension (Cms)0.19mm/N
BL Product (BL)8.85T·m
Diaphragm Mass Inc. Airload (Mms)12.09g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)153.8cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7.01"
Baffle Cutout Diameter5.79"
Depth2.91"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3136.6Hz
Vented Volume0.5ft³
Vented F384.7Hz
