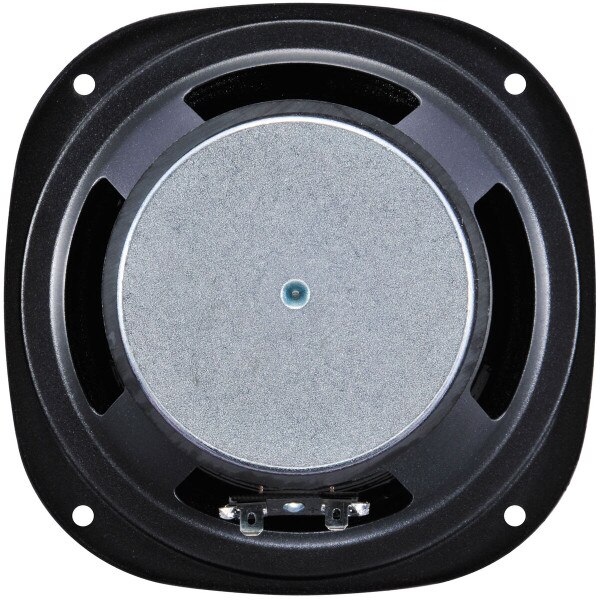

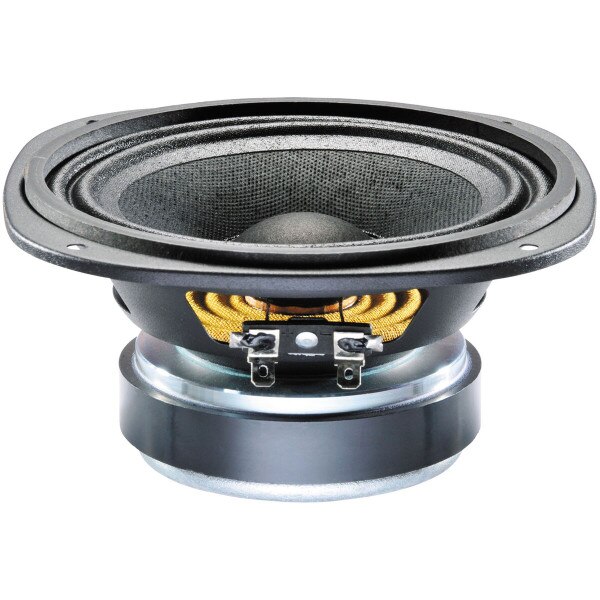

Celestion TF0510 5" Professional Midrange Speaker 30W

CelestionPart # 294-2050
Model: TF0510
With performance that could justify its use in critical hi-fi playback systems, the Celestion TF0510 5" speaker is a great partner for many 2-way and 3-way system designs.

Key Features

  • Multi-purpose 5" drive unit delivering clear bass and mid frequencies
  • 91 dB sensitivity and 30 watts RMS power handling
  • 1" high temperature copper voice coil wound on polyimide former for increased reliability
  • Impressively smooth and extended frequency range
  • Ideal for use in multiple speaker systems: as the LF driver in 2-way systems or as the MF driver in 3-way systems
  • Stamped steel frame and 13 oz. ceramic ferrite magnet
Your Price: $45.00
MSRP: $67.50
Save $22.50 (33%)
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when Celestion TF0510 5" Professional Midrange Speaker 30W is back in stock or available for preorder.

Order in the next 3 hr 49 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion TF0510 5" Professional Midrange Speaker 30W

Versatile and affordable, the Celestion TF0510 5" driver brings hi-fi accuracy to many 2-way and 3-way PA speaker system configurations. Its carefully selected cone and optimized double half-roll edge contribute to a superbly smooth and extended frequency response characteristic.

Product Details

BrandCelestion
ModelTF0510
Part Number294-2050
UPC739894530644
Unit of MeasureEach
Weight2.3

Product Specifications

Nominal Diameter5"
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance
Frequency Response130 to 8,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)128.1Hz
DC Resistance (Re)6.32Ω
Voice Coil Inductance (Le)0.33mH
Mechanical Q (Qms)2.38
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.66
Compliance Equivalent Volume (Vas)0.26ft³
Mechanical Compliance of Suspension (Cms)0.22mm/N
BL Product (BL)6.82T·m
Diaphragm Mass Inc. Airload (Mms)7.02g
Maximum Linear Excursion (Xmax)1.1mm
Surface Area of Cone (Sd)78.66cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.35 x 5.94"
Baffle Cutout Diameter4.61"
Depth2.68"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F3160.8Hz
Vented Volume0.38ft³
Vented F3105Hz
