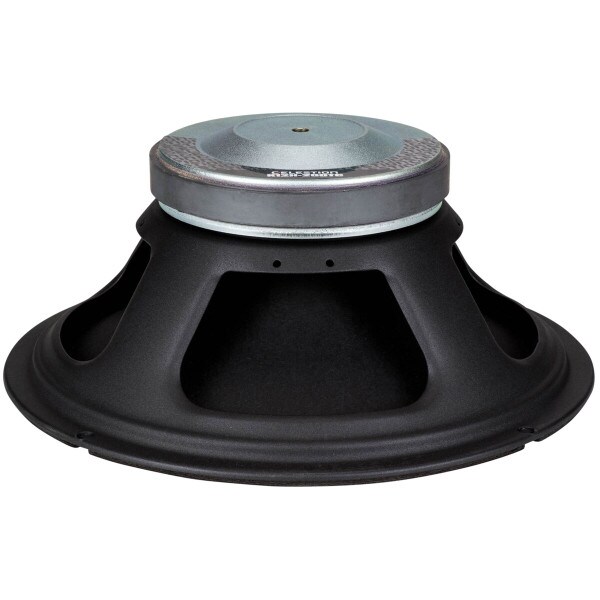

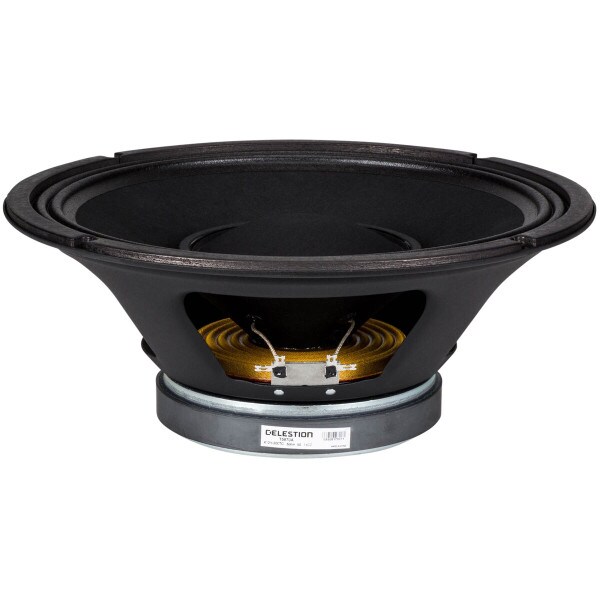

Celestion K12H-200TC 12" 200 Watt Full-Range Professional Woofer 8 Ohm

CelestionPart # 294-2082
Model: K12H-200TC
The K12H-200TC 12" 8 ohm woofer from Celestion uses a unique dual cone, or whizzer cone, design to extend high frequency response to achieve full range frequency response from a 12" speaker.

Key Features

  • Twin cone and low inductance increases high frequency response to over 10,000 Hz
  • Reinforced cone neck/voice coil assembly for reduced high frequency distortion
  • Double roll surround for greater excursion control and smooth frequency response
  • Secondary cone terminated by pressure formed cloth dust cap for enhanced mid-band clarity
  • 2" high temperature copper voice coil for increased reliability and power handling
Your Price: $105.00
+ FREE SHIPPING
MSRP: $157.50
Save $52.50 (33%)
Bulk Pricing
Only 1 In Stock More due any day
Get Notified When Available

We'll send you an email when Celestion K12H-200TC 12" 200 Watt Full-Range Professional Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion K12H-200TC 12" 200 Watt Full-Range Professional Woofer 8 Ohm

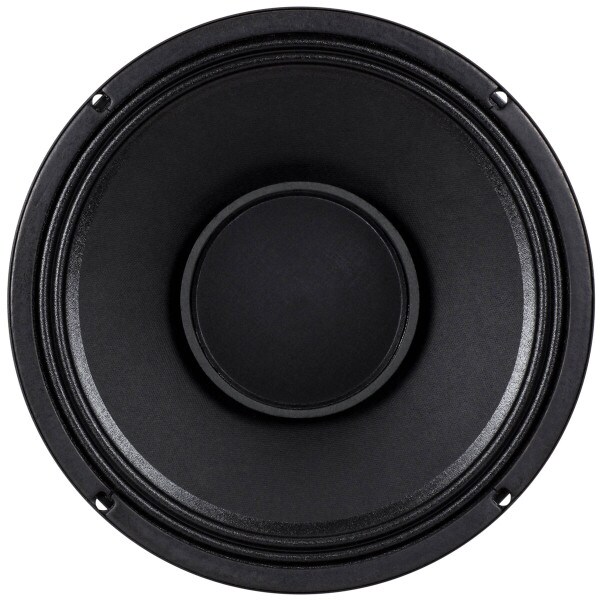

Celestion's K12H-200TC 8 ohm 12" full-range woofer is an excellent choice when space is at an absolute minimum. This woofer uses a dual cone, or whizzer cone, design improving the high frequency response well beyond that of a standard 12", eliminating the need for a tweeter and crossover. The primary cone handles low to midrange frequencies while the smaller secondary cone reproduces the higher frequencies. A pressure formed cloth dust cap reinforces the secondary cone for enhanced mid-band clarity.

Product Details

BrandCelestion
ModelK12H-200TC
Part Number294-2082
UPC739894587051
Unit of MeasureEach
Weight9.8

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response50 to 10,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)62.3Hz
DC Resistance (Re)5.81Ω
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)2.8
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)2.26ft³
Mechanical Compliance of Suspension (Cms)0.16mm/N
BL Product (BL)14.63T·m
Diaphragm Mass Inc. Airload (Mms)40.57g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)530.3cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.2"
Baffle Cutout Diameter11.14"
Depth5.14"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.8ft³
Sealed F3133.3Hz
Vented Volume1.75ft³
Vented F362.7Hz
