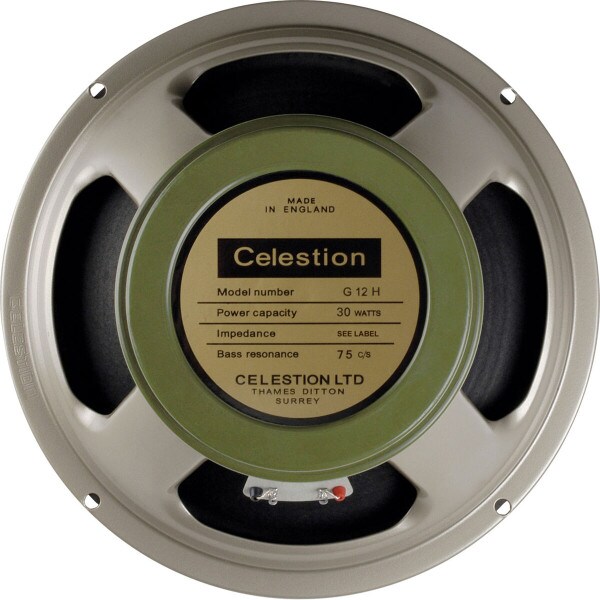

CLEARANCE Celestion Heritage G12H 75 Hz 12" 15 Ohm Guitar Speaker 30W

CelestionPart # 294-2230
Model: Heritage G12H 75 Hz
Hand assembled to faithfully re-create its Vintage fore-runner, the Heritage G12H (75) 15 ohm guitar speaker delivers 30 watts power handling and 100 dB sensitivity.

Key Features

  • Rising response above 1,000 Hz delivers incredible detail
  • Classic 60s rock tones for an unmistakable sound
  • High efficiency design allows the guitar to cut through the mix
Get Notified When Available

We'll send you an email when Celestion Heritage G12H 75 Hz 12" 15 Ohm Guitar Speaker 30W is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Celestion Heritage G12H 75 Hz 12" 15 Ohm Guitar Speaker 30W

Celestion have re-introduced the Heritage Series G12H (75) featuring a 75 c/s 'lead' cone for an alternative tonal balance (compared with the G12H (55) version with 55 c/s base cone) that places a little less emphasis on bass frequencies. Heritage Series production pays strict attention to detail, right down to the voice coil former material, glue formulations and edge treatment. Choose this version if you prefer a tighter bottom end with a punchy upper mid-range and sparkling highs.

Overall Specifications: • Nominal diameter: 12" (305 mm) • Power rating: 30 watts • Nominal impedance: 15 ohm • Sensitivity: 100 dB • Chassis type: Pressed steel • VCdia: 1.75" (44.5 mm) • Voice coil material: Round copper • Magnet type: Ceramic • Frequency range: 75-5,000 Hz • Fs: 75 Hz • DC resistance, Re: 12.11 ohm.

Mounting Information: • Diameter: 12.2" (309 mm) • Overall depth: 5.3" (135 mm) • Magnet structure diameter: 6.6" (168 mm) • Cut-out diameter: 11.1" (283 mm) • Mounting slot dimensions: 0.31", (7.9 mm Ø) • Number of mounting slots: 4 • Mounting slot PCD: 11.7" (297 mm) • Weight: 10.4 lbs. (4.7 kg).

Product Details

BrandCelestion
ModelHeritage G12H 75 Hz
Part Number294-2230
UPC739894136303
Unit of MeasureEach
Weight12.4

Product Specifications

Nominal Diameter12"
Power Handling (RMS)30 Watts
Impedance15Ω

Materials of Construction

Magnet MaterialCeramic Ferrite
