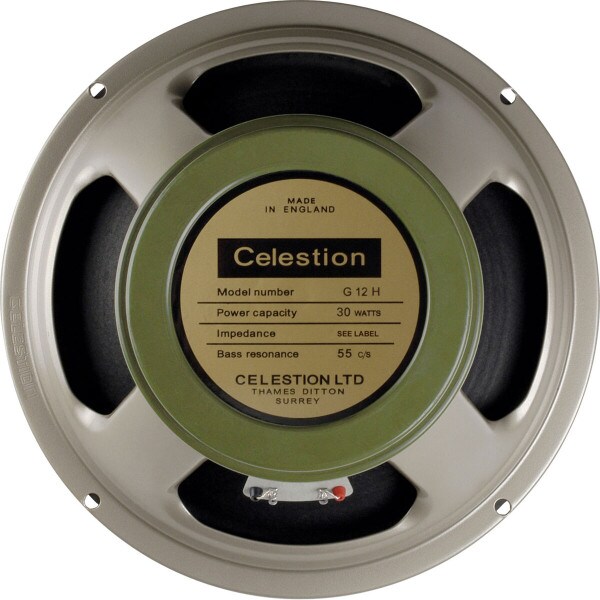

If the G12M was to become a classic, it was the G12H (55)with its heavier magnet that really characterized the sound of rock guitar for the new breed of player that emerged in the 1960s. Listen to any Hendrix recording and the chances are you're hearing the unmistakably creamy tones of the G12H. Originally available in two versions – low resonance for bassists and high resonance for guitarists – both were in fact embraced by guitar players for their unique tonal characteristics.
Overall Specifications: • Nominal diameter: 12" (305 mm) • Power rating: 30 watts • Nominal impedance: 15 ohm • Sensitivity: 100 dB • Chassis type: Pressed steel • VCdia: 1.75" (44.5 mm) • Voice coil material: Round copper • Magnet type: Ceramic • Frequency range: 55-5,000 Hz • Fs: 55 Hz • DC resistance, Re: 12.11 ohm.
Mounting Information: • Diameter: 12.2" (309 mm) • Overall depth: 5.3" (135 mm) • Magnet structure diameter: 6.6" (168 mm) • Cut-out diameter: 11.1" (283 mm) • Mounting slot dimensions: 0.31", (7.9 mm Ø) • Number of mounting slots: 4 • Mounting slot PCD: 11.7" (297 mm) • Weight: 10.4 lb. (4.7 kg).
Product Details | |
|---|---|
| Brand | Celestion |
| Model | Heritage G12H 55 Hz |
| Part Number | 294-2226 |
| UPC | 739894128100 |
| Unit of Measure | Each |
| Weight | 12 |
Product Specifications | |
|---|---|
| Nominal Diameter | 12" |
| Power Handling (RMS) | 30 Watts |
| Impedance | 15Ω |
Materials of Construction | |
|---|---|
| Magnet Material | Ceramic Ferrite |
