Celestion H1SC-9040 1" Exponential Horn 90 x 40 1-3/8"-18 TPI

Celestion
Part #294-2948

Celestion H1SC-9040 1" Exponential Horn 90 x 40 1-3/8"-18 TPI

Celestion
Part #294-2948
Model: H1SC-9040

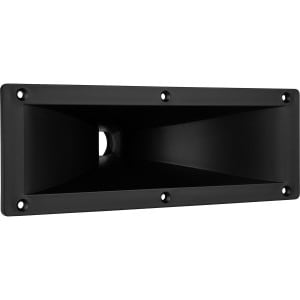

Celestion's H1SC-9040 4.1" x 11.7" horn uses durable reinforced ABS plastic construction to handle the difficult environment of professional audio. The controlled 90° H x 40° V dispersion pattern directs the output right where you want it to keep unwanted reflection to a minimum.
Key Features
  • 1-3/8" x 18 TPI screw on mount is compatible with many popular drivers
  • Rugged reinforced ABS provides excellent damping characteristics
  • 90° H x 40° V dispersion delivers room filling sound with minimal floor and ceiling reflection
  • Exponential horn flare for smooth response throughout the useable bandwidth
Your Price: $20.00
MSRP: $30.00
Save $10.00 (33%)
Bulk Pricing
Order in the next 2 hr 45 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Celestion H1SC-9040 1" Exponential Horn 90 x 40 1-3/8"-18 TPI

The H1SC-9040 exponential horn from Celestion is ideal for designs where wide horizontal and narrow vertical dispersion is desired. With a 90° H x 40° V radiation pattern, this horn will produce room filling output while minimizing floor and ceiling reflection. With a 1-3/8" 18 TPI mount and loading down to 700 Hz, the H1SC-9040 is compatible with many of the most popular compression drivers available. Finally, the reinforced ABS plastic construction provides excellent damping and reliable performance.

Specifications: • Throat diameter: 1" • Driver mounting: 1-3/8"-18 TPI • Nominal coverage: 90°H x 40° V • Cutoff frequency: 700 Hz • Dimensions: 4.1" H x 11.7" W x 5.7" D • Cutout dimensions: 2.9" H x 9.8" W.

Product Details

BrandCelestion
ModelH1SC-9040
Part Number294-2948
UPC739894595162
Unit of MeasureEach
Weight0.65

Product Specifications

ConstructionABS
Entry / Throat Diameter1"
Mounting Type1-3/8"-18 TPI
