Celestion H1-9040P 1" Exponential Horn 90x40 2-Bolt/3-Bolt

CelestionPart # 294-2944
Model: H1-9040P

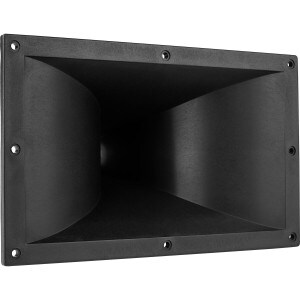

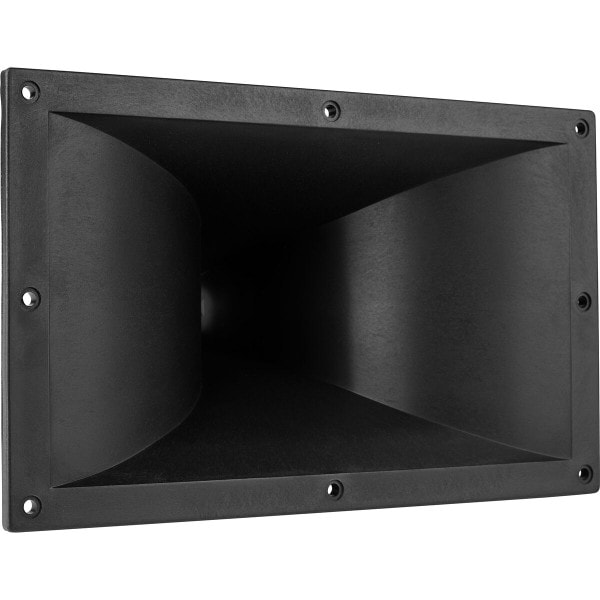

Celestion's H1-9040P 7.8" x 12.5" horn uses durable reinforced ABS plastic construction to handle the difficult environment of professional audio. The controlled 90° H x 40° V dispersion pattern directs the output right where you want it to keep unwanted reflection to a minimum.

Key Features

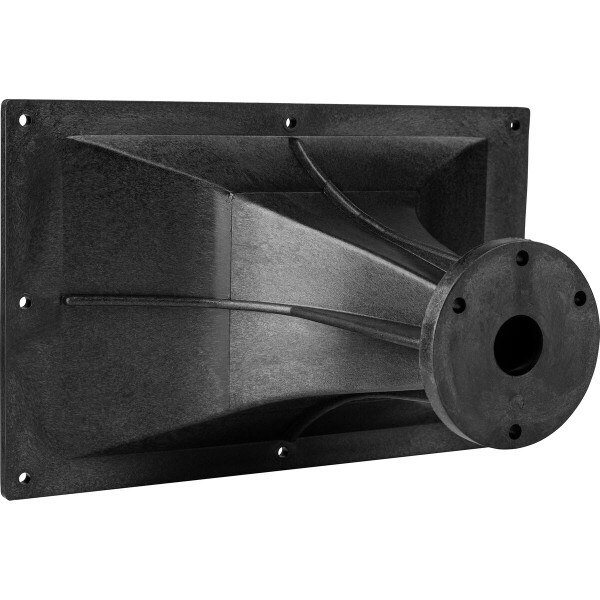

  • 2-bolt or 3-bolt mount is compatible with many popular drivers
  • Rugged reinforced ABS provides excellent damping characteristics
  • 90° H x 40° V dispersion delivers room filling sound with minimal floor and ceiling reflection
  • Exponential horn flare for smooth response throughout the useable bandwidth
Your Price: $20.00
MSRP: $30.00
Save $10.00 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Celestion H1-9040P 1" Exponential Horn 90x40 2-Bolt/3-Bolt is back in stock or available for preorder.

Order in the next 0 hr 17 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion H1-9040P 1" Exponential Horn 90x40 2-Bolt/3-Bolt

The H1-9040P exponential horn from Celestion is ideal for designs where wide horizontal and narrow vertical dispersion is desired. With a 90° H x 40° V radiation pattern, this horn will produce room filling output while minimizing floor and ceiling reflection. With a 2-bolt mount and loading down to 1,500 Hz, the H1-9040P is compatible with many of the most popular compression drivers available. Finally, the reinforced ABS plastic construction provides excellent damping and reliable performance.

Specifications: • Throat diameter: 1" • Driver mounting: 2-bolt/3-bolt • Nominal coverage: 90°H x 40° V • Cutoff frequency: 1,500 Hz • Dimensions: 7.8" H x 12.5" W x 8.2 " D • Cutout dimensions: 6.5" H x 10.2" W.

Product Details

BrandCelestion
ModelH1-9040P
Part Number294-2944
UPC848864058139
Unit of MeasureEach
Weight1.55

Product Specifications

ConstructionABS
Entry / Throat Diameter1"
Mounting Type2-Bolt/3-Bolt
