Overview

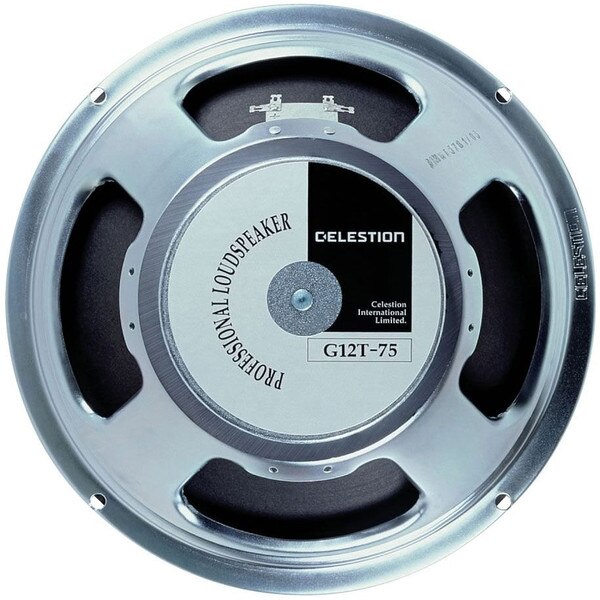

Featured in the world's top selling 4x12 cabinet, the G12T-75 is a high powered rock player's dream. The best selling guitar speaker of all time, the G12T-75 is in fact remarkably versatile, staying clean at thunderously high volume levels. Built to meet the demands of high gain amplifiers, the G12T-75 combines a huge, tightly controlled low-end and aggressive mid-range with a softened top-end that adds a welcome sweetness to overdrive, distortion and aggressive upper harmonics. These are the characteristics that make the G12T-75 the weapon of choice for Yngwie Malmsteen.
Overall Specifications: • Nominal diameter: 12" (305 mm) • Power rating: 75 watts • Nominal impedance: 16 ohm • Sensitivity: 97 dB • Chassis type: Pressed steel • VCdia: 1.75" (44.5 mm) • Voice coil material: Round copper • Magnet type: Ceramic • Frequency range: 80-5,000 Hz • Fs: 85 Hz • DC resistance, Re: 12.9 ohm.
Mounting Information: • Diameter: 12.2" (309 mm) • Overall depth: 5" (127 mm) • Magnet structure diameter: 5.7" (145 mm) • Cut-out diameter: 11.1" (283 mm) • Mounting slot dimensions: 0.31" (7.9 mm Ø) • Number of mounting slots: 4 • Mounting slot PCD: 11.7" (297 mm) • Weight: 7.7 lbs. (3.5 kg).
