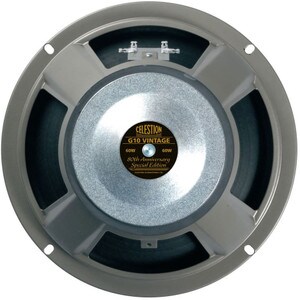

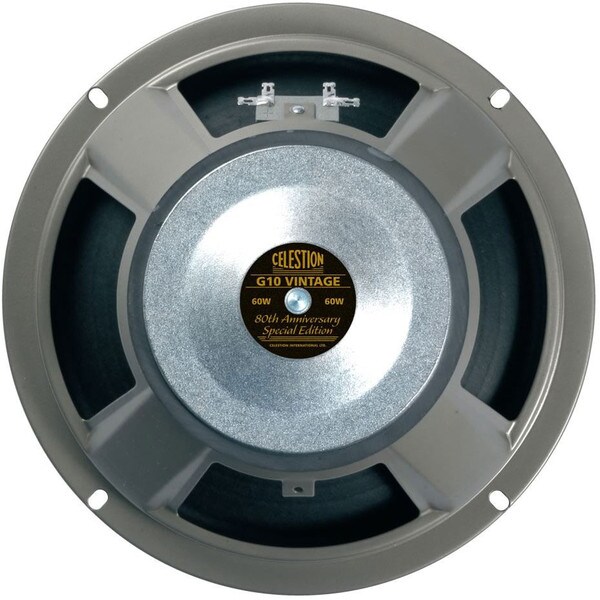

A worthy successor to the Vintage 10, the G10 Vintage is a 10" speaker with bags of attitude. Using powerful ceramic magnets and the same voice coil design as the Vintage 30, the G10 packs an impressive punch with its 60 watt power handling. A particularly versatile performer, the G10 Vintage is also well suited for use in a single speaker cab.
With the fast response of a 10" but with the strong and creamy vocal tones of a 12", the G10 is the ideal choice to add depth to hollow-sounding amps, or for players who want to get humbuckertype girth from single-coils. Can be used singly to add vocal warmth to small valve combos, or in quartets for a weightier but still lively attack.

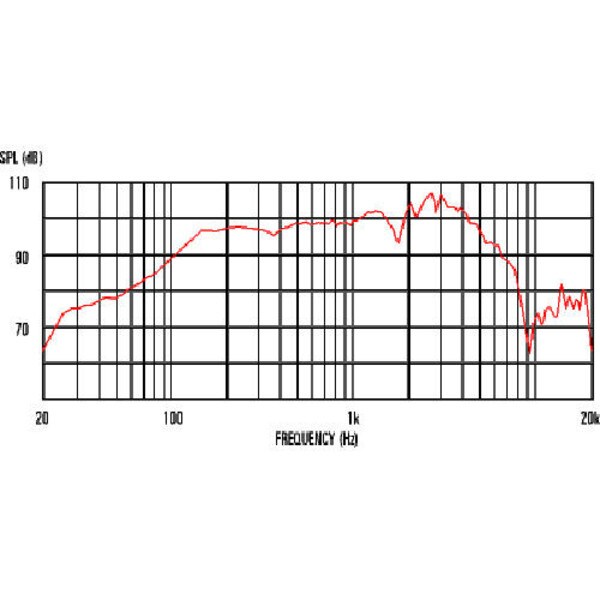

Overall Specifications: • Nominal diameter: 10" (254 mm) • Power rating: 60 watts • Nominal impedance: 8 ohm • Sensitivity: 97 dB • Chassis type: Pressed steel • VCdia: 1.75" (44.5 mm) • Voice coil material: Round copper • Magnet type: Ceramic • Frequency range: 100-5,500 Hz • Fs: 115 Hz • DC resistance, Re: 7.47 ohm.
Mounting Information: • Diameter: 10.1" (256 mm) • Overall depth: 4.1" (104 mm) • Magnet structure diameter: 5.3" (134 mm) • Cut-out diameter: 9" (229 mm) • Mounting slot dimensions: 0.2" x 0.3" (6 x 8 mm Ø) • Number of mounting slots: 4 • Mounting slot PCD: 9.6" (245 mm) • Weight: 5.3 lbs. (2.4 kg).
Product Details | |
|---|---|
| Brand | Celestion |
| Model | G10 Vintage |
| Part Number | 294-2258 |
| UPC | 739894537353 |
| Unit of Measure | Each |
| Weight | 6.15 |
Product Specifications | |
|---|---|
| Nominal Diameter | 10" |
| Power Handling (RMS) | 60 Watts |
| Impedance | 8Ω |
Materials of Construction | |
|---|---|
| Magnet Material | Ceramic Ferrite |
