Celestion CDX1-1745 Ferrite 1" Compression Driver 75W

Celestion
Part #294-2124

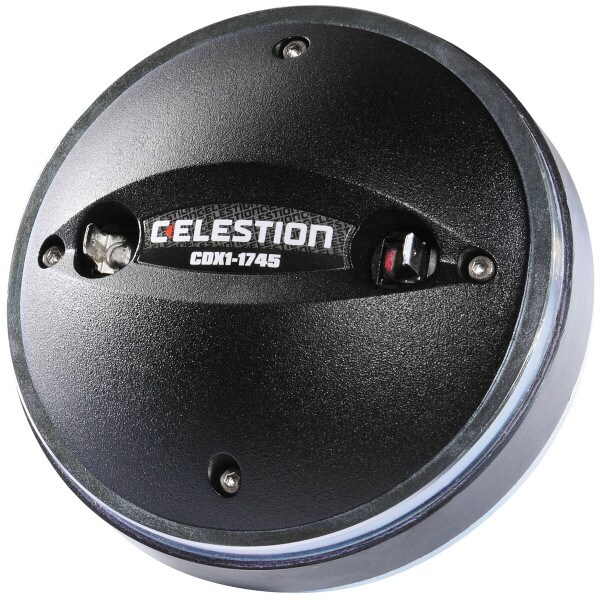

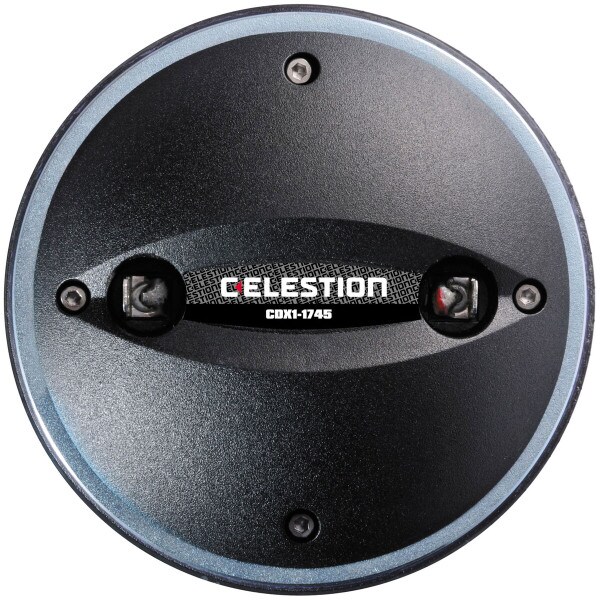

Celestion CDX1-1745 Ferrite 1" Compression Driver 75W

Celestion
Part #294-2124
Model: CDX1-1745
For an unbeatable combination of durability, listenability, and sustainable high output, choose the Celestion CDX1-1745 1" bolt-on HF driver.
Key Features
  • 1" exit, ferrite magnet compression driver with 1.75" edgewound copper-clad aluminum voice coil
  • 75 watts RMS power handling and 110 dB sensitivity
  • Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
  • One-piece PETP diaphragm and surround for clean, extended response
  • Finite Element Analysis (FEA) used to optimize both magnet assembly and acoustic design
Your Price: $99.00
MSRP: $148.50
Save $49.50 (33%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Celestion CDX1-1745 Ferrite 1" Compression Driver 75W

The Celestion CDX1-1745 1" HF driver uses FEA optimization on its moving parts as well as its magnetic circuit. The result is extreme efficiency, high power handling, and very low distortion. The CDX1-1745 is capable of delivering stunningly clear, hi-fi quality output, but at the explosive sound reinforcement levels demanded of pro loudspeaker systems. Also available in a 1-3/8"-18 TPI screw-on version, the CDX1-1746.

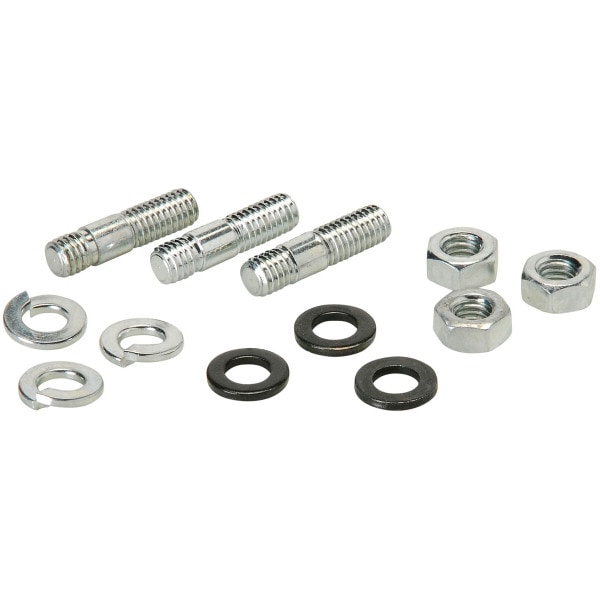

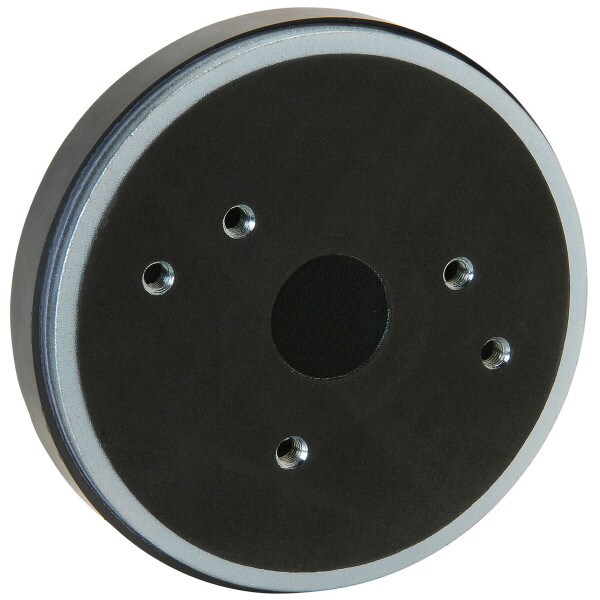

Specifications: • Power handling: 75 watts RMS (AES standard) • Recommended min. crossover: 2,200 kHz, 12 dB/octave • VCdia: 1.75" • Impedance: 8 ohms • Frequency range: 1,200-20,000 Hz • Sensitivity: 110 dB 1W/1m • Mounting (flange): 2/3 x M6 holes on 3/2.24" PCD • Dimensions: 4.7" dia. x 2.2" depth • Net weight: 5.1 lbs.

Product Details

BrandCelestion
ModelCDX1-1745
Part Number294-2124
UPC739894536349
Unit of MeasureEach
Weight4.55

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type2-Bolt/3-Bolt
Power Handling (RMS)75 Watts
