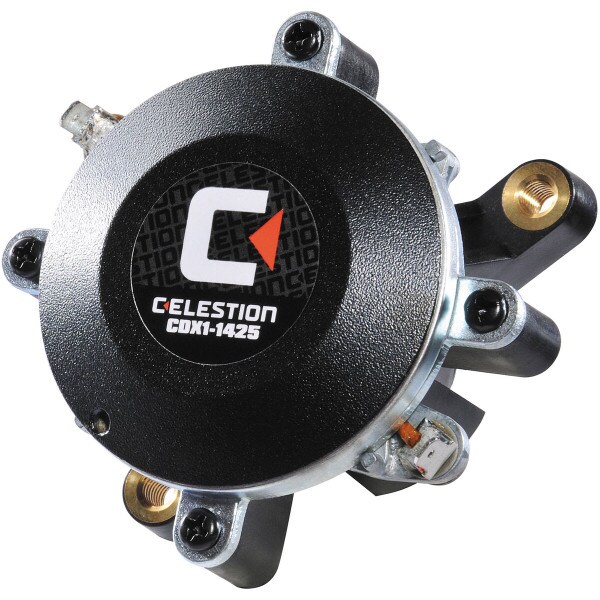

Celestion CDX1-1425 Neo 1" Compression Horn Driver 25W
Celestion
Part #294-2132
Celestion CDX1-1425 Neo 1" Compression Horn Driver 25W
Celestion
Part #294-2132
Model: CDX1-1425
Celestion high frequency drivers are a popular OEM component -- many loudspeaker system manufacturers are incorporating transducers like the CDX1-1425 into their designs.
Key Features
- 1" exit neodymium compression driver with 1.4" copper clad aluminum voice coil
- 25 watts RMS power handling and 108 dB sensitivity
- Copper sleeve on pole reduces inductive rise for improved HF performance
- Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
- Aluminum diaphragm combined with elastomer surround delivers lower distortion performance
- Finite Element Analysis (FEA) used to optimize both magnet and acoustic design
- Suitable for 2-way and 3-way systems, and line arrays
