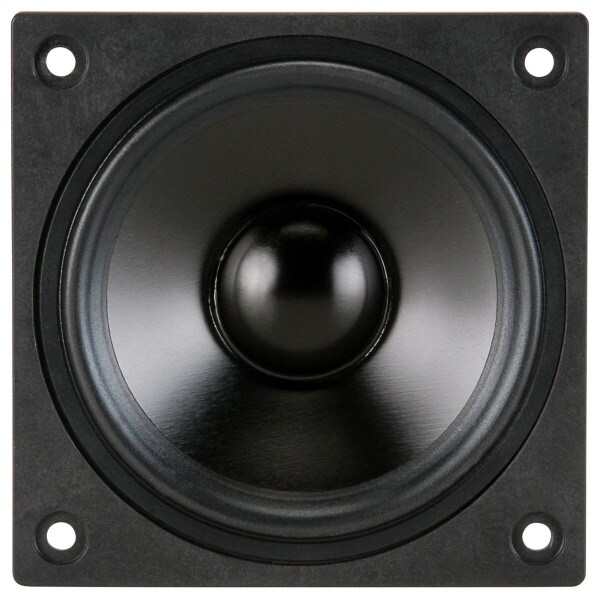

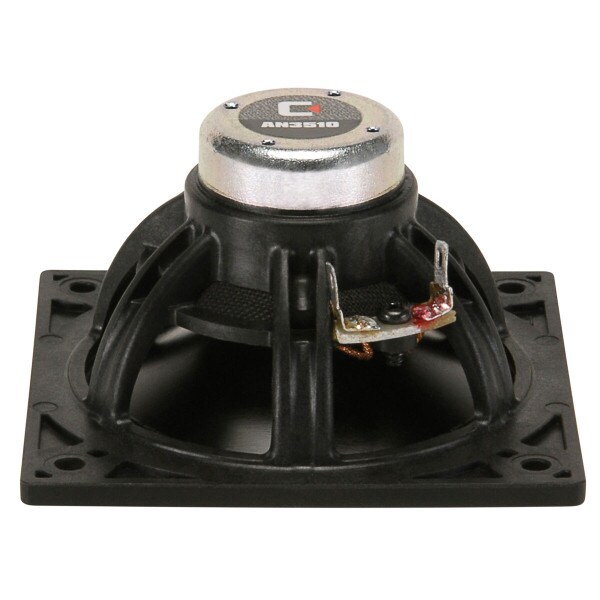

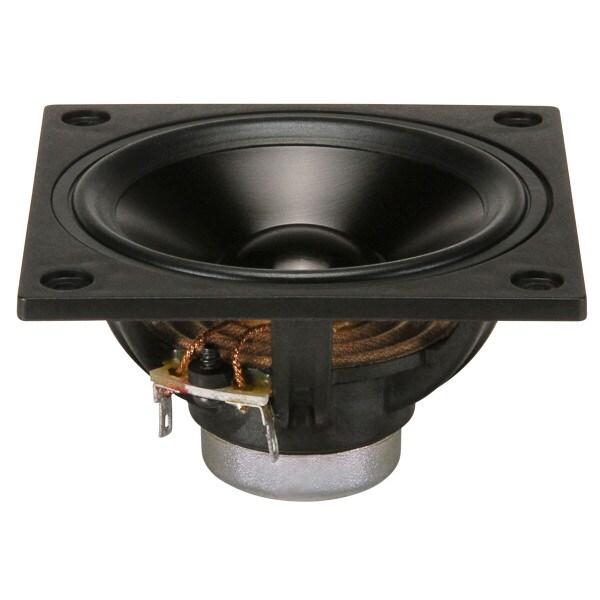

Celestion AN3510 3" Full-Range Compact Array Driver

CelestionPart # 294-2048
Model: AN3510
Choose Celestion's AN3510 3" full-range compact array driver for portable, live sound line array speaker applications. Weather resistant, you can use these indoors or outside while occupying minimal space.

Key Features

  • Lightweight, full-range neodymium speakers
  • Ideal for applications where actively controlled beam steering is used
  • Delivers wider dispersion than many equivalent full-range drivers on the market
  • Stiff and light aluminum cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
  • Designed to be weather resistant for outdoor applications
Your Price: $49.50
MSRP: $74.25
Save $24.75 (33%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when Celestion AN3510 3" Full-Range Compact Array Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion AN3510 3" Full-Range Compact Array Driver

The 3" AN3510 compact array driver from Celestion are built using neodymium motors making them perfect for designing and building compact and lightweight, full-range  loudspeakers. Delivering wider dispersion to higher frequencies than many other compact, full-range drivers on the market, the AN3510 is great for live sound professional use, or for high-fidelity home audio speakers.

Maximum free-air movement, with square mounting frame to facilitate close coupling of multiple units is enabled by the purpose built chassis. The stiff, light aluminium cone remains rigid at higher frequencies, delivering a smoother response in the critical listening band. A half-roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion.

Product Details

BrandCelestion
ModelAN3510
Part Number294-2048
UPC739894580144
Unit of MeasureEach
Weight0.45

Product Specifications

Nominal Diameter3-1/2"
Power Handling (RMS)35 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response98 to 18,500Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)113.4Hz
DC Resistance (Re)5.73Ω
Mechanical Q (Qms)5.09
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.65
Compliance Equivalent Volume (Vas)0.07ft³
Mechanical Compliance of Suspension (Cms)0.52mm/N
BL Product (BL)4.56T·m
Diaphragm Mass Inc. Airload (Mms)3.37g
Maximum Linear Excursion (Xmax)1.25mm
Surface Area of Cone (Sd)38.48cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.52"
Baffle Cutout Diameter3.1"
Depth2"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3143.2Hz
Vented Volume0.1ft³
Vented F393.4Hz
