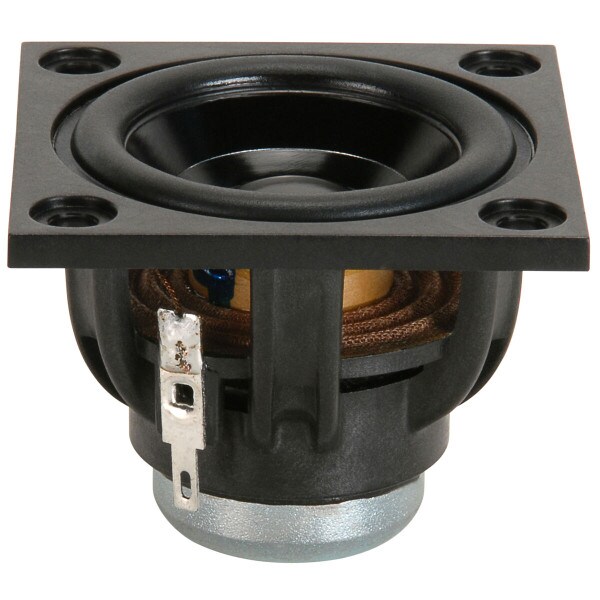

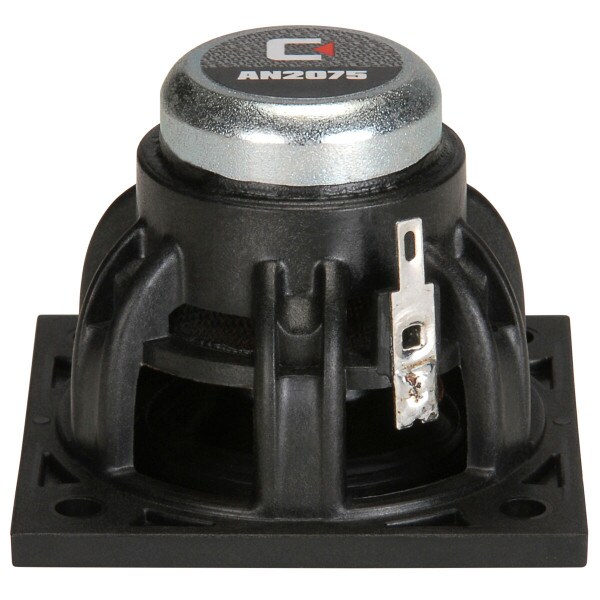

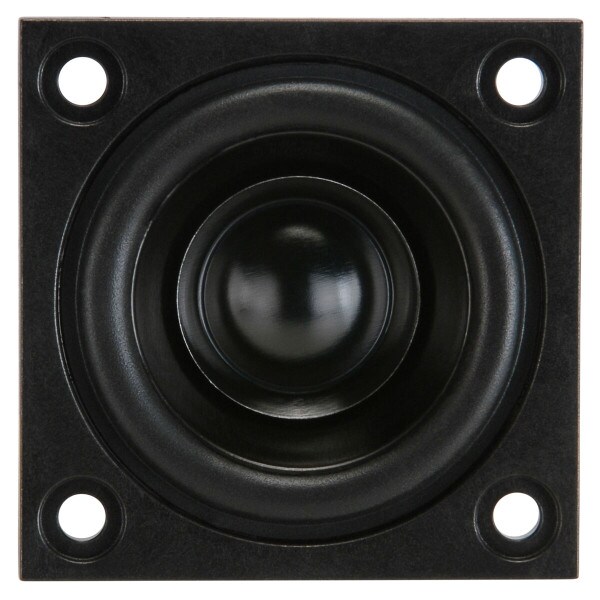

Celestion AN2075 2" Full-Range Compact Array Driver

CelestionPart # 294-2044
Model: AN2075
Choose Celestion's AN2075 2" full range compact array driver for portable, live sound line array speaker applications. Weather resistant, you can use these indoors or outside while occupying minimal space.

Key Features

  • Lightweight, full-range neodymium speakers
  • Ideal for applications where actively controlled beam steering is used
  • Delivers wider dispersion than many equivalent full-range drivers on the market
  • Stiff and light aluminum cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
  • Designed to be weather resistant for outdoor applications
Your Price: $39.50
MSRP: $59.25
Save $19.75 (33%)
Bulk Pricing
Only 3 In Stock More due any day
Get Notified When Available

We'll send you an email when Celestion AN2075 2" Full-Range Compact Array Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion AN2075 2" Full-Range Compact Array Driver

The 2" AN2075 compact array driver from Celestion are built using neodymium motors making them perfect for designing and building compact and lightweight, full-range  loudspeakers. Delivering wider dispersion to higher frequencies than many other compact, full-range drivers on the market, the AN2075 is great for live sound professional use, or for high-fidelity home audio speakers.

Maximum free-air movement, with square mounting frame to facilitate close coupling of multiple units is enabled by the purpose built chassis. The stiff, light aluminium cone remains rigid at higher frequencies, delivering a smoother response in the critical listening band. A half-roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion.

Product Details

BrandCelestion
ModelAN2075
Part Number294-2044
UPC739894581943
Unit of MeasureEach
Weight0.25

Product Specifications

Nominal Diameter2"
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance8Ω
Frequency Response160 to 19,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)153.4Hz
DC Resistance (Re)0.84Ω
Mechanical Q (Qms)5.28
Electromagnetic Q (Qes)0.998
Total Q (Qts)0.84
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.72mm/N
BL Product (BL)2.71T·m
Diaphragm Mass Inc. Airload (Mms)1.49g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)12.49cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside DiameterSquare: 2.2"
Baffle Cutout Diameter2"
Depth1.7"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.015ft³
Sealed F3161.4Hz
