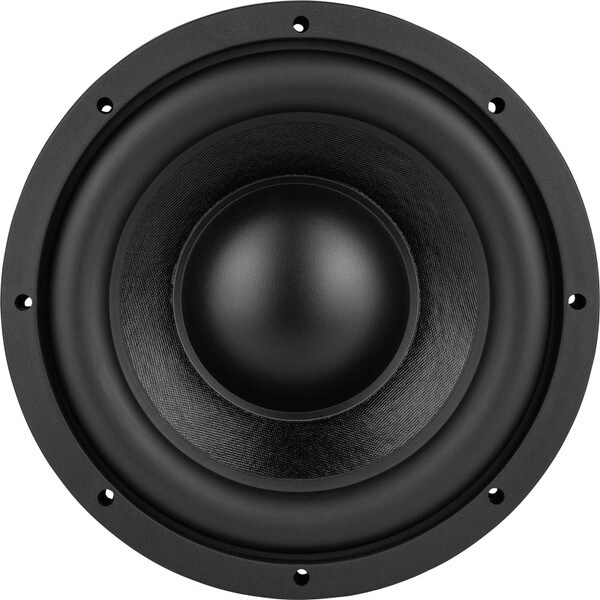

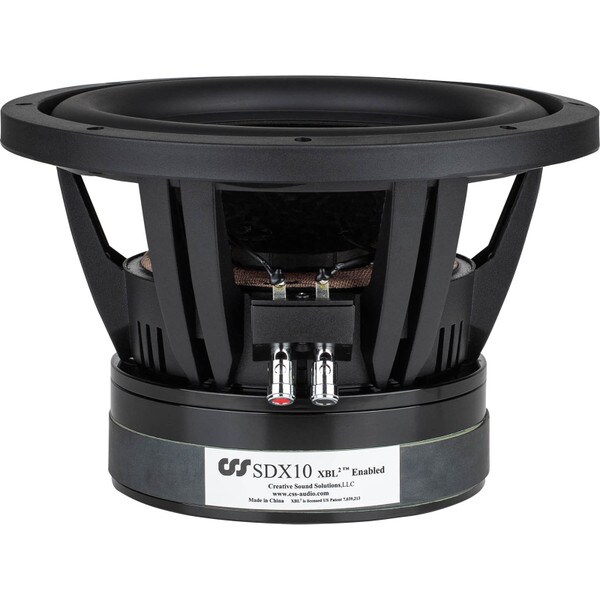

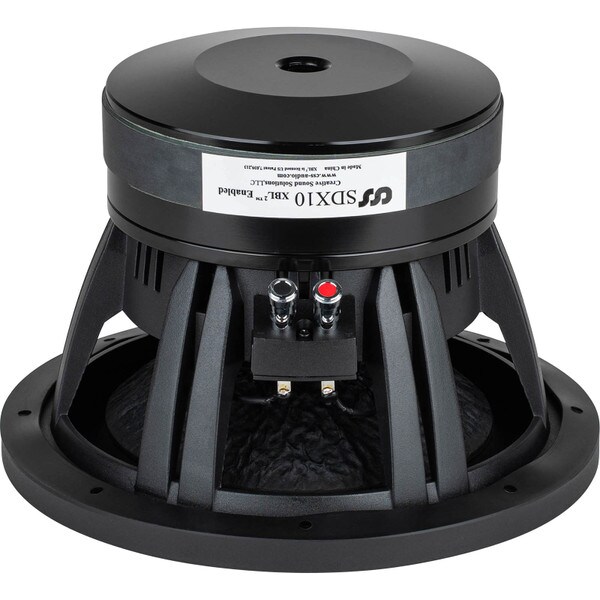

CLEARANCE CSS SDX10 XBL2 10" Subwoofer

CSSPart # 290-3004
Model: SDX10

CSS took one of the finest 10” subwoofers on the market today, and made it better. The new SDX10 features ultra-low distortion due to an upgraded patented XBL^2 motor, this allows you to hear every little detail of your favorite movie or song. You can look forward to low, impactful bass in a small enclosure with a generous 36 mm peak-to-peak Xmax

Key Features

  • Paper/carbon fiber blended cone, pressed and surface treated provides inherent internal damping
  • Semi-progressive spider design gives increased linearity
  • Aluminum and copper shorting rings inside the motor for reduced distortion
  • High power, low inductance design XBL^2 motor
Get Notified When Available

We'll send you an email when CSS SDX10 XBL2 10" Subwoofer is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

CSS SDX10 XBL2 10" Subwoofer

CSS took one of the finest 10” subwoofers on the market today, and made it better. The upgraded SDX10 includes a larger motor, adding 10 lbs. to the total weight, new shorting rings and increased excursion to 22mm one-way linear. It features ultra-low distortion due to the patented XBL^2 motor, this allows you to hear every little detail of your favorite movie or song. You can look forward to low, impactful bass in a small enclosure with a generous 44 mm peak-to-peak Xmax. The SDX10 also features good sensitivity and an excellent extended frequency response for 10” subwoofer, which means it can be used as a woofer in 3-way configurations.

Product Details

BrandCSS
ModelSDX10
Part Number290-3004
UPC848864053745
Unit of MeasureEach
Weight29.8

Product Specifications

Nominal Diameter10"
Power Handling (RMS)750 Watts
Power Handling (MAX)1500 Watts
Impedance
Frequency Response16 to 500Hz
Sensitivity87.2dB 2.83V/1m
Voice Coil Diameter2.39"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)1.42mH
Mechanical Q (Qms)3.69
Electromagnetic Q (Qes)0.63
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)1.2ft³
Mechanical Compliance of Suspension (Cms)0.28mm/N
BL Product (BL)10.26T·m
Diaphragm Mass Inc. Airload (Mms)100.5g
Maximum Linear Excursion (Xmax)18.4mm
Surface Area of Cone (Sd)292.4cm²

Materials of Construction

Cone MaterialPaper / Carbon Fiber
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.81"
Baffle Cutout Diameter9"
Depth6.69"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.05ft³
Sealed F344.1Hz
Vented Volume1.5ft³
Vented F326.7Hz
