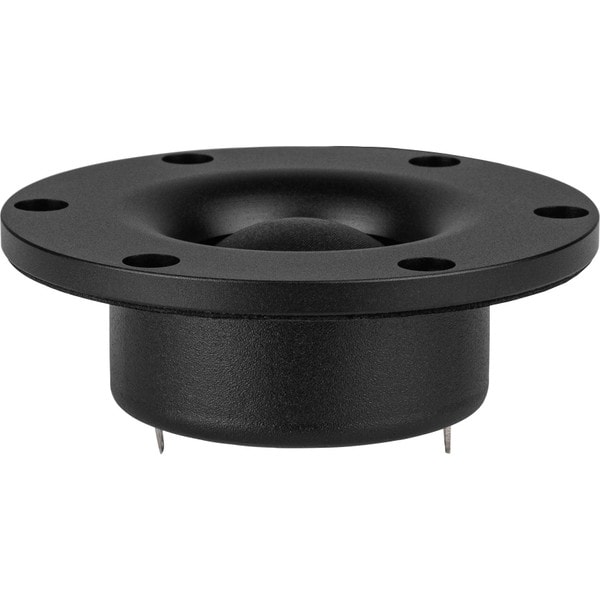

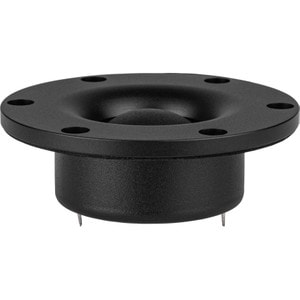

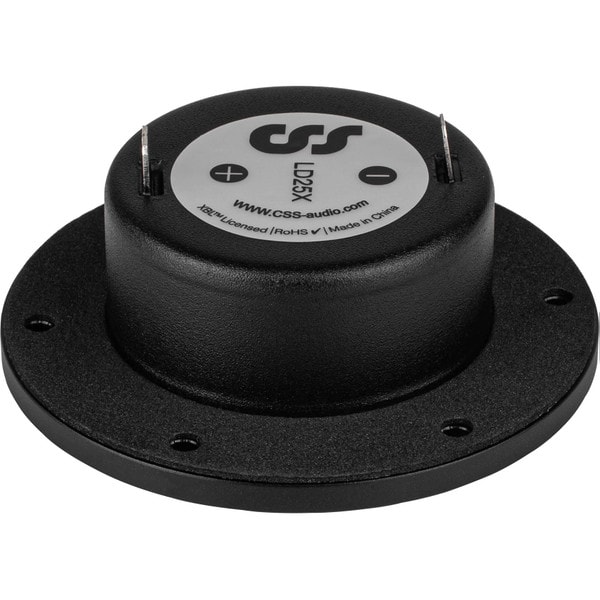

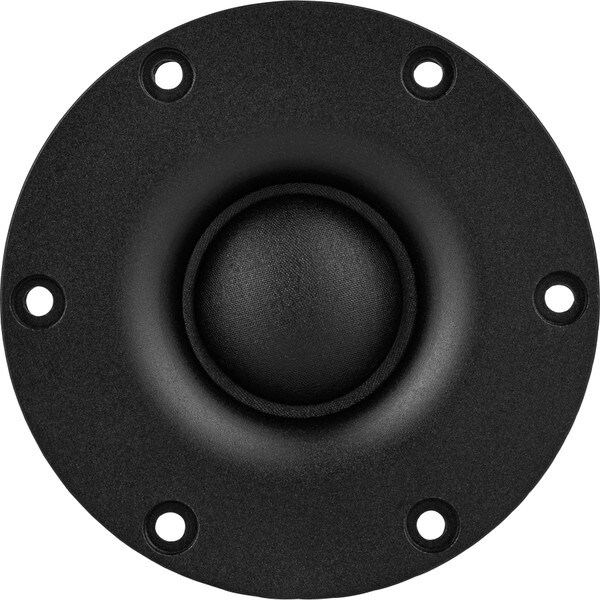

CSS LD25X 25mm Silk Dome XBL2 Tweeter

CSSPart # 290-3007
Model: LD25X
The unique LD25X 25 mm silk dome tweeter from CSS uses a powerful XBL² motor system to create a remarkably long magnetic gap for improved control and lower distortion. This tweeter will deliver incredibly flat and accurate response, even at 30 degrees off axis.

Key Features

  • XBL² motor uses a split gap to increase strength and excursion for lower distortion
  • Copper cap lowers inductance and improves top end performance
  • Naturally damped 25 mm silk dome provides smooth and natural response
  • Rigid anodized aluminum face plate for an attractive look and solid mount
Your Price: $193.27
+ FREE SHIPPING
MSRP: $289.99
Save $96.72 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $193.27/ea
Quantity:Qty: 4+ $174.63/ea
In Stock
Get Notified When Available

We'll send you an email when CSS LD25X 25mm Silk Dome XBL2 Tweeter is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

CSS LD25X 25mm Silk Dome XBL2 Tweeter

Creative Sound Solutions famous LD25X has returned! Finding the patented XBL² in a tweeter is rare due to the challenging quality control that is required to ensure the tweeter functions as designed but offers unique benefits over other designs. The extremely flat and broad BL curve provides a larger and stronger magnetic field for the voice coil to operate within. This leads to low levels of inter-modulation distortion by ensuring the voice coil is always operating in the linear range even at higher powers and lower frequencies. CSS didn't stop there with this new iteration though. On top of the XBL² motor is an additional copper cap to further reduce distortion and increase top end frequency extension. All told, the LD25X delivers incredibly detailed and dynamic sound reproduction from a small and elegant package.

Product Details

BrandCSS
ModelLD25X
Part Number290-3007
UPC848864062983
Unit of MeasureEach
Weight0.35

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.87
Tweeter TypeSoft Dome
Power Handling (RMS)75 Watts
Impedance8Ω
Frequency Response2,000 to 22,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)865Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)4.21
Electromagnetic Q (Qes)1.85
Total Q (Qts)1.28

Mounting Information

Overall Outside Diameter2.91"
Depth1.22"
