BUYOUT CES VW-8820D 8" DVC Woofer 8+8 Ohm

Factory BuyoutsPart # 299-4156
Model: VW-8820D

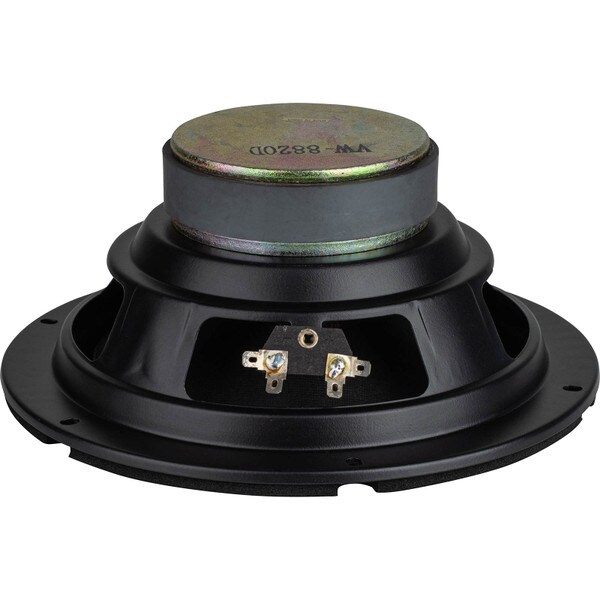

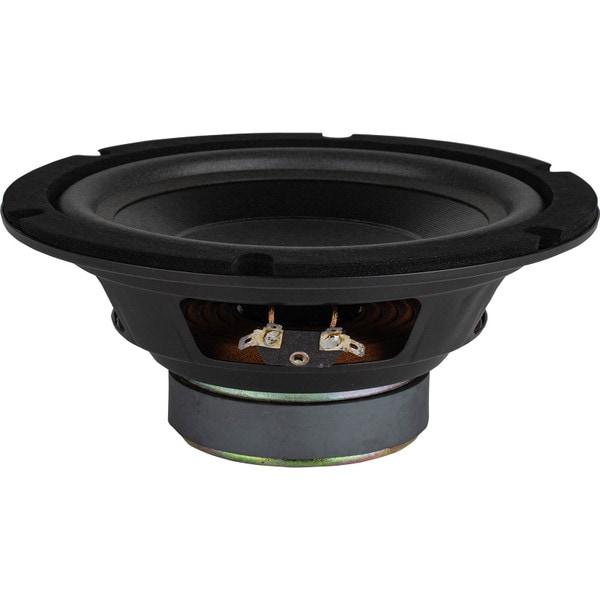

The CES VW-8820D 8" DVC Woofer is a robust, long-throw woofer that can be used in countless applications.

Key Features

  • Dual 8 ohm voice coils for wiring versatility
  • Long-throw design provides 5mm of linear one-way Xmax
  • Oversize 1.5" 4-layer voice coil for increased power handling
  • Thick foam gasket allows front or rear mount options
BUYOUT $11.88
Bulk Pricing
567 In Stock
Get Notified When Available

We'll send you an email when CES VW-8820D 8" DVC Woofer 8+8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

CES VW-8820D 8" DVC Woofer 8+8 Ohm

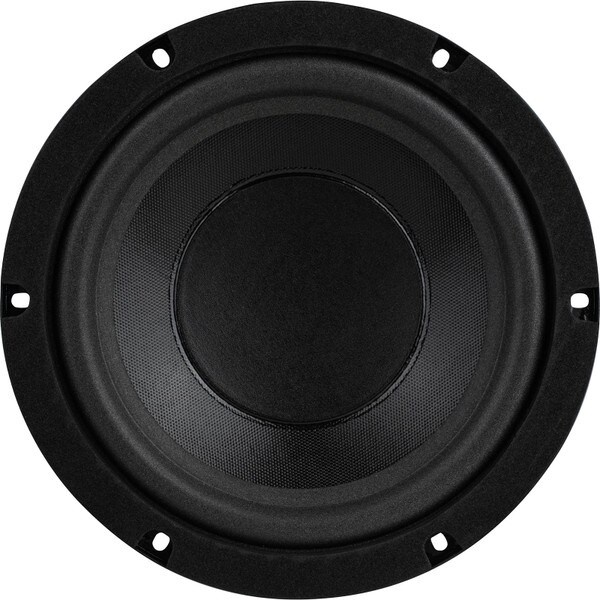

The CES VW-8820D 8" DVC Woofer is a robust, long-throw woofer that can be used in countless applications. A treated paper cone, thick, convex dust cap and foam surround combine to produce a stiff and light weight diaphragm. A large ferrite motor and sturdy 1.5" diameter 4-layer voice coil mean this woofer can handle ample power and move a lot of air.

Dual 8 ohm coils can be wired in parallel for a 4 ohm load, series for a 16 ohm load, or separately for two 8 ohm loads, making this woofer very versatile. A thick foam gasket allows this to be front or rear mounted in your choice of sealed, vented or IB applications.

Specifications are with coils wired in parallel.

Product Details

BrandFactory Buyouts
ModelVW-8820D
Part Number299-4156
UPC848864072388
Unit of MeasureEach
Weight3.8

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance4Ω
Frequency Response40 - 1,000Hz
Sensitivity86.92dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)43.74Hz
DC Resistance (Re)3.65Ω
Voice Coil Inductance (Le)0.8606mH
Mechanical Q (Qms)6.023
Electromagnetic Q (Qes)0.7641
Total Q (Qts)0.6781
Compliance Equivalent Volume (Vas)1.026ft³
Diaphragm Mass Inc. Airload (Mms)29.98g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)216.4cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.625"
Baffle Cutout Diameter7.25"
Depth3.75"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F360.2Hz
Vented Volume1.8ft³
Vented F337.3Hz
