  • Beyma 8CFX260Nd 8" Coaxial Neo Loudspeaker 8+8 Ohm

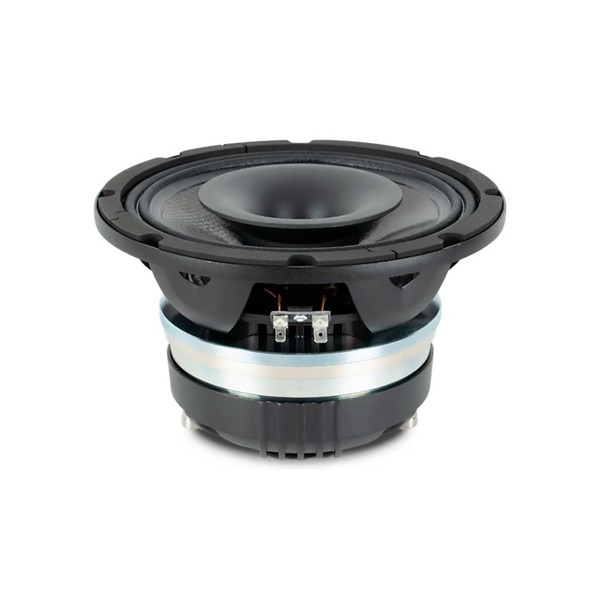

NEW Beyma 8CFX260Nd 8" Coaxial Neo Loudspeaker 8+8 Ohm

BeymaPart # 253-098
Model: 8CFX260Nd

The Beyma 8CFX260Nd is an 8" high-performance coaxial transducer engineered for professional audio applications requiring a single point source with extended frequency response and low distortion. Its advanced design and robust construction make it suitable for various high-quality sound applications, including houses of worship, studio monitors, home theater systems, movie theaters, and small PA systems.

Key Features

  • Covers an extensive frequency range from 100 Hz to 20 kHz​
  • Features a waterproof carbon fiber cone for enhanced durability and performance​
  • Incorporates a demodulation ring for linear and extended response with reduced distortion​
  • Utilizes a lightweight common neodymium magnetic circuit to optimize efficiency​
  • Equipped with a cast frame for structural integrity​
NEW $548.25
+ FREE SHIPPING
MSRP: $731.00
Save $182.75 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 8CFX260Nd 8" Coaxial Neo Loudspeaker 8+8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 8CFX260Nd 8" Coaxial Neo Loudspeaker 8+8 Ohm

8CFX260Nd 8" Coaxial Neo Loudspeaker 8+8 Ohm

The 8CFX260Nd's substantial power handling capabilities and high sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. The waterproof carbon fiber cone enhances durability and reliability, even in challenging environmental conditions. The inclusion of a demodulation ring contributes to a linear and extended frequency response while minimizing distortion, ensuring accurate sound reproduction. The lightweight neodymium magnetic circuit enhances efficiency without compromising performance. The cast frame provides structural integrity, maintaining consistent performance over time. Ideal for applications requiring a high-quality single point source, this coaxial transducer offers versatility and exceptional performance for professional audio setups.​

Product Details

BrandBeyma
Model8CFX260Nd
Part Number253-098
UPC8435469057722
Unit of MeasureEach
Weight11.5

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.7
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response100 to 20,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.23mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.28ft³
Mechanical Compliance of Suspension (Cms)119mm/N
BL Product (BL)13.5T·m
Diaphragm Mass Inc. Airload (Mms)0.021g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)0.022cm²

Materials of Construction

Cone MaterialCarbon Fiber
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.3"
Baffle Cutout Diameter7.1"
Depth5.3"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0506ft³
Sealed F3247.7Hz
Vented Volume0.129ft³
Vented F3142.3Hz
