NEW Beyma 15CMV2 15" Subwoofer 8 Ohm

Name: Beyma 15CMV2 15" Subwoofer 8 Ohm
Brand: Beyma
SKU: 253-030
Price: 144 USD
Availability: InStock

Beyma

Part #253-030

NEW Beyma 15CMV2 15" Subwoofer 8 Ohm

Beyma

Part #253-030

Model: 15CMV2

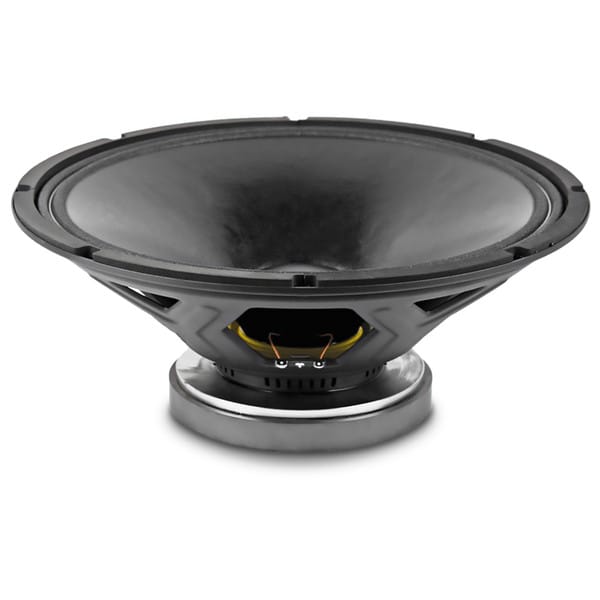

The Beyma 15CMV2 is a 15" low and mid-frequency transducer designed for professional audio applications requiring high power handling and linear response. Its robust construction and treated components make it suitable for bass and midbass applications in compact vented cabinets.

Key Features

3" copper wire voice coil enhances thermal stability
Extremely linear response with low distortion
Treated double roll cloth surround for durability
Optimized pressed steel frame provides structural integrity
Ferrite magnet ensures consistent performance
Designed for bass and midbass applications in compact vented cabinets

Frequently Bought Together

This Product: Beyma 15CMV2 15" Subwoofer 8 Ohm	$144.00
Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.	$7.69
Beyma CD-1114Fe 1.4" Compression Driver 8 Ohm 4-Bolt	$105.00

Total Price: $256.69

This Product:Beyma 15CMV2 15" Subwoofer 8 Ohm$144.00

Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.$7.69

Beyma CD-1114Fe 1.4" Compression Driver 8 Ohm 4-Bolt$105.00

3 ItemsTotal Price: $256.69

Overview

Beyma 15CMV2 15" Subwoofer 8 Ohm

15CMV2 15" Subwoofer 8 Ohm

The 15CMV2's 350 W AES power handling and 97 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 3" copper wire voice coil enhances thermal stability, contributing to consistent performance over time. The transducer offers an extremely linear response with low distortion, ensuring accurate sound reproduction across its frequency range. The treated double roll cloth surround provides durability and longevity, maintaining performance under rigorous conditions. The optimized pressed steel frame offers structural integrity, while the ferrite magnet ensures consistent performance. Designed for bass and midbass applications in compact vented cabinets, the 15CMV2 provides versatility and high performance for professional audio setups.

Solid Line: On Axis
Dotted Line: 45° Off Axis

Product Details
Brand	Beyma
Model	15CMV2
Part Number	253-030
UPC	8435469051065
Unit of Measure	Each
Weight	15.4

Product Specifications
Nominal Diameter	15"
Bolt Circle Diameter	14.4
Power Handling (RMS)	350 Watts
Power Handling (MAX)	700 Watts
Impedance	8Ω
Frequency Response	50 to 4,000Hz
Sensitivity	97dB 2.83V/1m
Voice Coil Diameter	3"

Thiele-Small Parameters
Resonant Frequency (Fs)	49Hz
DC Resistance (Re)	6Ω
Voice Coil Inductance (Le)	1.2mH
Mechanical Q (Qms)	4.1
Electromagnetic Q (Qes)	0.55
Total Q (Qts)	0.49
Compliance Equivalent Volume (Vas)	3.67ft³
Mechanical Compliance of Suspension (Cms)	95mm/N
BL Product (BL)	18.8T·m
Diaphragm Mass Inc. Airload (Mms)	0.106g
Maximum Linear Excursion (Xmax)	7mm
Surface Area of Cone (Sd)	0.088cm²

Materials of Construction
Surround Material	Cloth
Voice Coil Wire Material	Copper
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	15.1"
Baffle Cutout Diameter	13.9"
Depth	6.5"
# Mounting Holes	8

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	1.609ft³
Sealed F3	86.25Hz
Vented Volume	5.369ft³
Vented F3	41.22Hz
