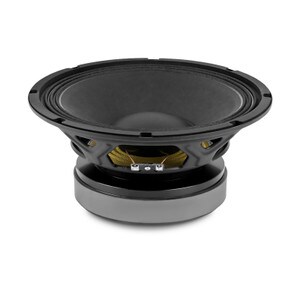

NEW Beyma 10MCS500 MCS Series 10" Subwoofer 8 Ohm

Beyma
Part #253-023

NEW Beyma 10MCS500 MCS Series 10" Subwoofer 8 Ohm

Beyma
Part #253-023
Model: 10MCS500

The Beyma 10MCS500 is a 10" low and mid-frequency transducer designed for professional audio systems requiring high power handling and efficiency. Its robust construction and advanced Maltcross cooling technology make it suitable for 2-way or 3-way PA systems and line arrays.

Key Features
  • Maltcross cooling system reduces power compression​
  • Optimized pressed steel frame for structural integrity​
  • FEA-optimized magnetic circuit for improved performance​
  • Weatherproof cone with dual-sided treatment for increased durability​
  • 2.5" copper wire voice coil enhances thermal stability​
  • Optimized for 2-way or 3-way PA systems and line arrays​
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $162.75
+ FREE SHIPPING
MSRP: $217.00
Save $54.25 (25%)
Bulk Pricing
Order in the next 14 hr 20 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 10MCS500 MCS Series 10" Subwoofer 8 Ohm

10MCS500 MCS Series 10" Subwoofer 8 Ohm

The 10MCS500's 500 W AES power handling and 96.5 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 2.5" copper wire voice coil enhances thermal stability, contributing to consistent performance over time. The Maltcross cooling system effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. The optimized pressed steel frame provides structural integrity, ensuring reliable performance. The FEA-optimized magnetic circuit enhances overall efficiency and sound quality. The weatherproof cone, treated on both sides, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. Optimized for use in 2-way or 3-way PA systems and line arrays, this transducer offers versatility and high performance for professional audio setups.​

At Beyma, the challenge of heat dissipation is met with a clear objective: ensuring our speakers consistently deliver optimal performance within the system, maximizing total sound pressure level (SPL) and maintaining stability.

It's widely recognized that a system's overall SPL decreases over time due to power compression effects in the speakers. Typically, larger voice coil diameters correlate with higher power capacity; however, this also necessitates bigger motor structures to achieve high total output from the transducer.​

Beyma's Maltcross cooling technology presents multiple solutions to achieve this goal. It enables the woofer to handle higher power levels with a given coil diameter, allowing for designs with smaller coils and motor structures. This reduction in size decreases weight, increases sensitivity, and maintains adequate power handling for specific applications, resulting in a total SPL comparable to that of drivers with larger motor structures.

Maltcross technology incorporates a forced convection circuit within the driver's core, effectively lowering the coil's operating temperature. Additionally, it functions as a demodulation ring, linearizing the transducer's inductance.

Product Details

BrandBeyma
Model10MCS500
Part Number253-023
UPC8435469042568
Unit of MeasureEach
Weight13.5

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.5
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response70 to 5,000Hz
Sensitivity96.5dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)10.1
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.85ft³
Mechanical Compliance of Suspension (Cms)136mm/N
BL Product (BL)17.6T·m
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)0.035cm²

Mounting Information

Overall Outside Diameter10.2"
Baffle Cutout Diameter9.1"
Depth4.9"
# Mounting Holes8
