CLEARANCE Belden 549945 RG-59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire 500 ft. USA

BeldenPart # 102-1426
Model: 549945 010500
Belden 549945 RG-59/U coaxial cable makes it much more convenient to run video and power to security cameras. No need to deal with two separate cables!

Key Features

  • CCTV + power/audio cable suited ideally for pan/tilt/zoom cameras
  • High-conductivity 20 AWG solid bare copper with foam polyolefin
  • Separate 18 AWG stranded bare copper pair with polyolefin insulation
  • Siamese PVC jacket combines two cables; no need to do two runs
  • 95% bare copper braid provides excellent rejection of interference
  • Rated CMG, RG-59
CLEARANCE $224.74
+ FREE SHIPPING
MSRP: $499.99
Save $275.25 (55%)
Bulk Pricing
2 In Stock
Get Notified When Available

We'll send you an email when Belden 549945 RG-59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire 500 ft. USA is back in stock or available for preorder.

Order in the next 11 hr 0 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Belden 549945 RG-59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire 500 ft. USA

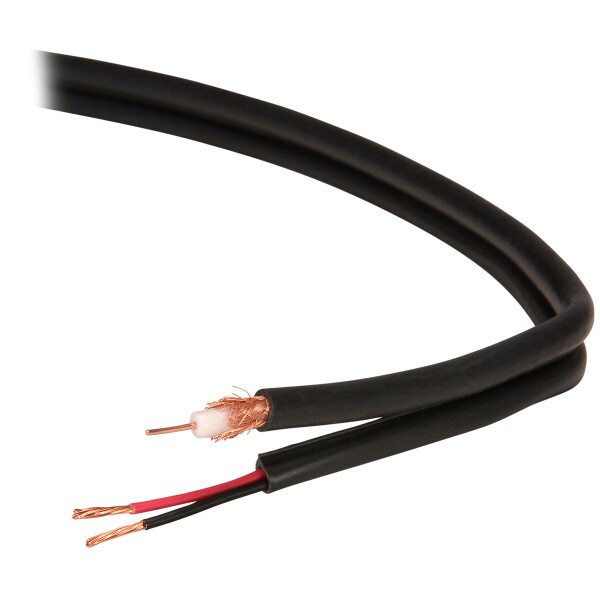

Save time and money by running Belden 549945 RG-59U coaxial cable to your surveillance cameras. This "Siamesed" cable combo incorporates a premium-quality coaxial cable and an 18 AWG stranded pair, all in one convenient combined jacket. Run video and power lines to PTZ (pan/tilt/zoom) cameras quickly and easily. The unshielded pair is also useful for running separate speaker-level audio signals alongside video.

Specifications: • Center conductor: 0.032" dia. bare copper • Insulation: Gas-injected FHDPE 0.145" dia. • Outer jacket: PVC • Nominal impedance: 75 ohms • Velocity of propagation: 83% • Capacitance: 16.2 pF/ft. • Nominal attenuation: 0.67 dB/100 ft. @ 1 MHz • Overall diameter: 0.232 x 0.450".

Product Details

BrandBelden
Model549945 010500
Part Number102-1426
UPC848864005959
Unit of MeasureEach
Weight26.7

Product Specifications

Coaxial Cable TypeRG-59/U
Jacket ColorBlack
Special FeaturesSiamese with 18/2
