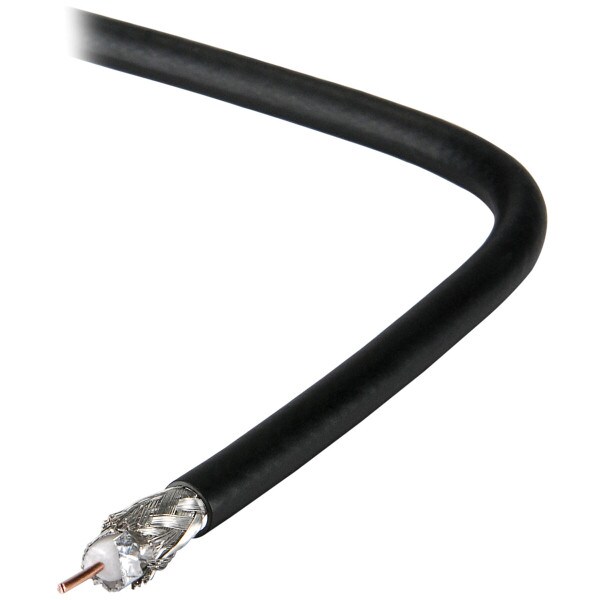

CLEARANCE Belden 1694A RG-6/U Coaxial Cable for Audio and Video 18 AWG Copper Conductor 75 Ohm 500 ft. USA

BeldenPart # 102-1396
Model: 1694A 010500
The Belden 1694A RG-6/U 500 ft. coaxial cable's upgraded quality results in improved power transfer, reduced noise, and extended system reliability. A popular choice for custom audio interconnects.

Key Features

  • 75 ohm nominal impedance is ideal for audio and video
  • 95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield
  • 18 AWG 0.040" bare copper conductor
  • Popular choice for custom audio interconnects
Get Notified When Available

We'll send you an email when Belden 1694A RG-6/U Coaxial Cable for Audio and Video 18 AWG Copper Conductor 75 Ohm 500 ft. USA is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Belden 1694A RG-6/U Coaxial Cable for Audio and Video 18 AWG Copper Conductor 75 Ohm 500 ft. USA

Belden's 1694A RG-/U coaxial cable is a popular choice for custom audio interconnects. It has an 18 AWG 0.040" bare copper conductor. The 95% coverage tinned copper braid shield is combined with Belden's exclusive Duofoil aluminum foil/polyester/aluminum foil 100% coverage shield for excellent noise rejection. 75 ohms nominal impedance, ideal for audio and video. PVC outer jacket for durability and long-term protection.

Specifications: • Center conductor: 0.40" dia. bare copper • Dielectric: 0.180" dia. foamed PE • Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper • Nominal impedance: 75 ohms • Velocity of propagation: 82% • Capacitance: 16.2 pF/ft. • Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz • Overall diameter: 0.274".


Product Details

BrandBelden
Model1694A 010500
Part Number102-1396
UPC848864005881
Unit of MeasureEach
Weight23

Product Specifications

Cable RatingCMR Rated|UL Approved
Coaxial Cable TypeRG-6/U
Jacket ColorBlack
