CLEARANCE Belden Brilliance 1192A 24 AWG 4C Star Quad Mic / Line Cable Tinned Copper Braid Shield Per ft. USA

BeldenPart # 102-1270
Model: 1192A B591
Thanks to its "pairable" 24 AWG conductors, Belden Star Quad 1192A microphone cable is far more flexible than conventional mic cables.

Key Features

  • One of the most flexible yet durable pro mic cables available
  • Stage and studio favorite; stays flat, coils easily
  • Four 24 AWG stranded (42x40) high-conductivity bare copper conductors
  • Low-memory PVC insulation and outer jacket combine pliability with toughness
  • Tinned copper braid shield (95% coverage) for great noise immunity
Get Notified When Available

We'll send you an email when Belden Brilliance 1192A 24 AWG 4C Star Quad Mic / Line Cable Tinned Copper Braid Shield Per ft. USA is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

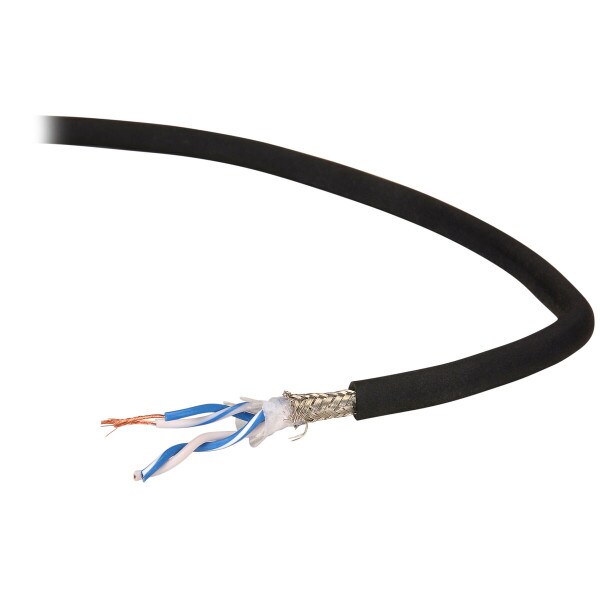

Belden Brilliance 1192A 24 AWG 4C Star Quad Mic / Line Cable Tinned Copper Braid Shield Per ft. USA

Belden Brilliance 1192A Star Quad mic/line cable features dual-paired 24 AWG bare copper conductors and PVC insulation and outer jacket materials, which make it one of the most pliable stage and studio cables available. The cable's 95% coverage tinned copper braid shield provides excellent noise rejection.

(Sold per foot, please order a minimum of 5 feet)

Specifications: • Conductors: (4) 24 AWG bare copper, 42x40 stranding • Shield: Tinned copper braid, 95% coverage • Nominal capacitance: 39.2 pF/ft. • Max. operating voltage: 100V RMS • Insulation material: PVC • Outer jacket material: PVC • Overall diameter: 0.245".

Product Details

BrandBelden
Model1192A B591
Part Number102-1270
UPC848864005645
Unit of MeasureFeet
Weight0.04

Product Specifications

Jacket ColorBlack
Wire Gauge24
