BUYOUT BN83-01521A 1-3/8" x 2-3/8" Paper Cone Full-Range Speaker 16 Ohm

1 Question, 5 Answers or
Factory Buyouts
Part #289-2238

BUYOUT BN83-01521A 1-3/8" x 2-3/8" Paper Cone Full-Range Speaker 16 Ohm

Factory Buyouts
Part #289-2238
Model: BN83-01521A
1 Question, 5 Answers or

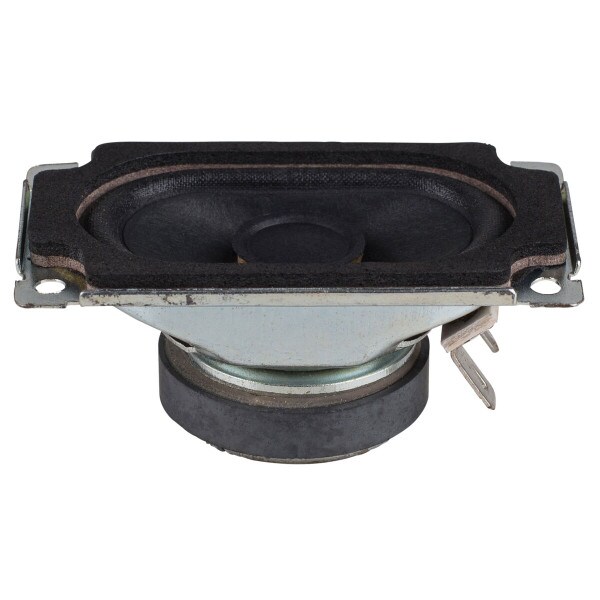

The BN83-01521A 16 ohm 1-3/8" x 2-3/8" full-range replacement driver is an OEM replacement speaker for various Samsung SyncMaster LCD monitors and TV's. The paper cone and voice coil former with cloth surround ensure that this driver will produce smooth frequency response with minimal resonances.
Key Features
  • Flat mounting flange for easy installation
  • Ideal for small line array designs thanks to its low cost
  • Foam front gasket ensures good seal when rear mounted
  • 16 ohm impedance is ideal for running multiple drivers
BUYOUT $1.51
Bulk Pricing
Quantity:Qty: 1-9 $1.51/ea
Quantity:Qty: 10-49 $1.28/ea
Quantity:Qty: 50+$1.18/ea
Order in the next 4 hr 13 min to ship today. Details

818In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

BN83-01521A 1-3/8" x 2-3/8" Paper Cone Full-Range Speaker 16 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-3/8" x 2-3/8" speaker, which is part of a massive TV speaker factory buyout from Brazil.

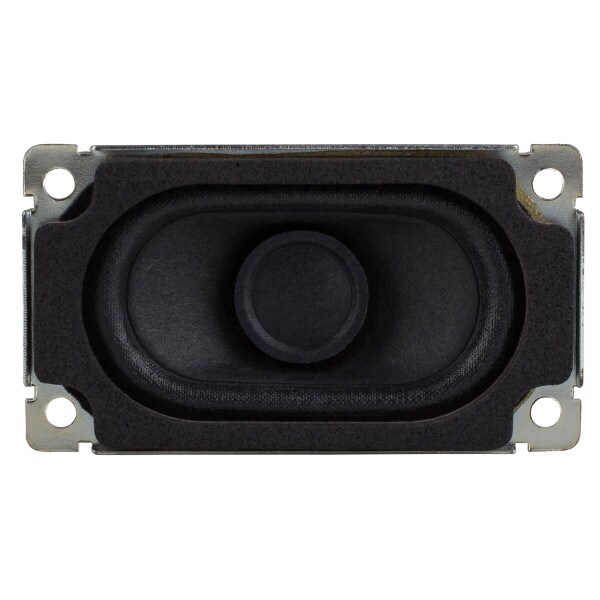

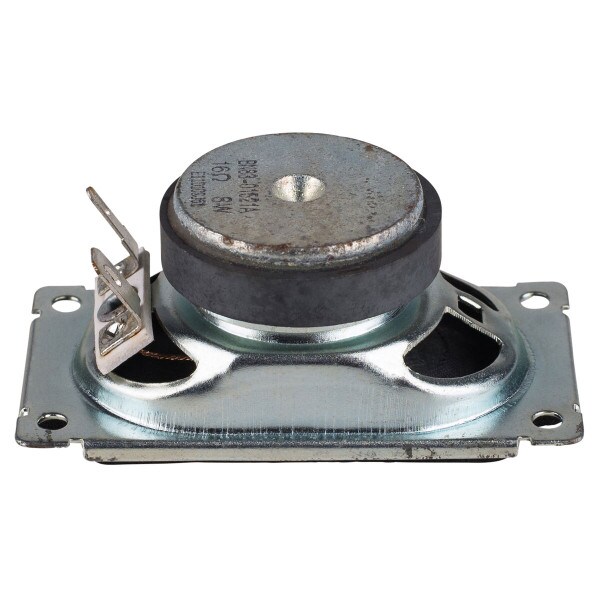

Originally found in Samsung SyncMaster monitors and TV's, this speaker features a rectangular design with a paper cone and cloth surround to deliver smooth response. With a flat mounting flange this driver is easy to install into most projects and the foam front gasket ensures a good seal when rear mounted.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelBN83-01521A
Part Number289-2238
UPC848864048413
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter1 x 2"
Power Handling (RMS)8 Watts
Power Handling (MAX)16 Watts
Impedance16Ω
Frequency Response200 to 15,000Hz
Sensitivity74dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)310Hz
DC Resistance (Re)14.35Ω
Voice Coil Inductance (Le)0.25mH
Mechanical Q (Qms)3.5
Electromagnetic Q (Qes)7.76
Total Q (Qts)2.41
Compliance Equivalent Volume (Vas)0.0015ft³

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter1.375" x 2.5"
Baffle Cutout Diameter1.125" x 2"
Depth1"
# Mounting Holes4
