B&C FB354-8 2-Way 5,600 Hz Passive Crossover For DCX354-8 Coaxial Compression Driver

B&C SpeakersPart # 294-6468
Model: FB3548

Elevate your audio system with the B&C FB354-8 2-Way 5,600 Hz Passive Crossover, designed specifically for the DCX354-8 Coaxial Compression Driver. This meticulously engineered crossover offers the most accurate point source solution, delivering flat high-fidelity response right out of the box using 100% OEM components. Ideal for pairing with the ME464 300Hz horn, the FB354 ensures flawless integration and superior sound performance.

Key Features

  • 2-way passive crossover tailored for the DCX354-8 coaxial compression driver
  • Phase aligns mid and high-frequency elements for pristine audio quality
  • Asymmetrical slope crossover at 5.6kHz for flat response and minimized distortion
  • Industrial filament bulb series protection to prevent overpowering
  • Compatible with ME464 300Hz horn for a cohesive system setup
Your Price: $128.16
+ FREE SHIPPING
MSRP: $213.60
Save $85.44 (40%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when B&C FB354-8 2-Way 5,600 Hz Passive Crossover For DCX354-8 Coaxial Compression Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C FB354-8 2-Way 5,600 Hz Passive Crossover For DCX354-8 Coaxial Compression Driver

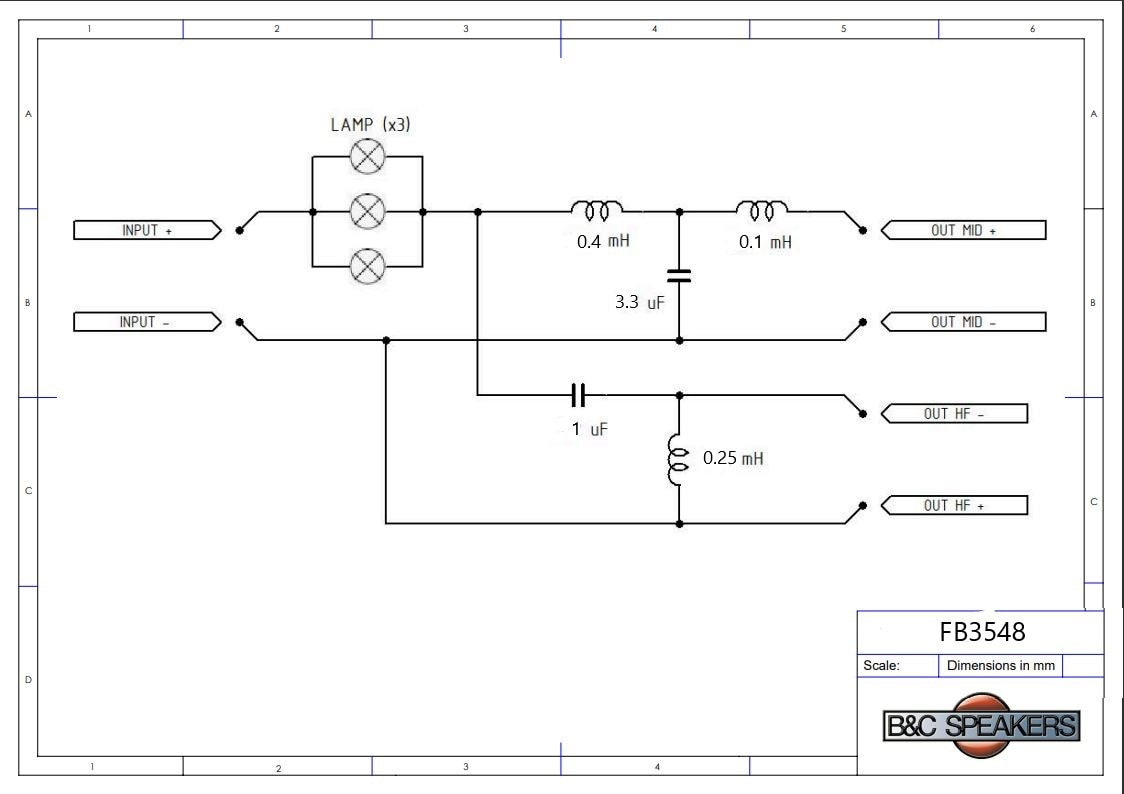

The FB354 crossover precisely phase aligns the mid and high-frequency elements of the DCX354, utilizing an asymmetrical slope crossover at 5.6kHz. This setup ensures a flat response with no loss in sensitivity, providing a perfect balance of energy between the two diaphragms and minimizing distortion at all output levels. The crossover frequency is carefully selected to deliver natural, high-fidelity sound, enhancing the performance of your audio system.

To ensure reliable operation and protect against excessive power, the FB354 includes industrial filament bulbs that act as series protection. This feature maintains consistent tonal balance and prevents damage, even at very high output levels, guaranteeing the longevity and durability of your audio system.

Upgrade your sound setup with the B&C FB354-8 Passive Crossover, the ideal companion for the DCX354-8 Coaxial Compression Driver. Experience unmatched sound quality and performance, with components designed for perfect compatibility and exceptional audio fidelity.

Product Details

BrandB&C Speakers
ModelFB3548
Part Number294-6468
UPC8050593406835
Unit of MeasureEach
Weight0.65
