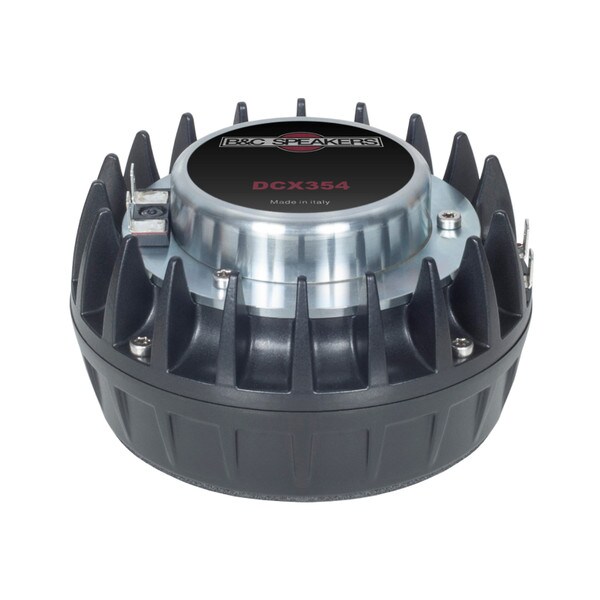

B&C DCX354-16 1.4" Neodymium Coaxial Compression Driver 16 Ohm 4-Bolt

B&C SpeakersPart # 294-6462
Model: DCX35416

Modern speaker arrays demand closer source spacing, higher output, and lighter weight. To meet this continuing challenge, B&C Speakers introduces the DCX354 coaxial ring radiator—a more compact sibling of the groundbreaking DCX464, with few compromises. Designed for exceptional performance and versatility, the DCX354 delivers powerful, clear sound in a lightweight and compact package.

Key Features

  • Compact 1.4" neodymium coaxial compression driver
  • 16 ohm impedance with 4-bolt mounting
  • Midrange diaphragm covers 400Hz – 6kHz with 112.2 dB sensitivity
  • High-frequency diaphragm covers 5 – 20kHz with 114.3 dB sensitivity
  • 180-watt power handling for midrange; 100-watt for high frequency
  • Patented midrange integrator for seamless diaphragm harmony
  • Advanced diaphragm shape for extended low-frequency bandwidth
Your Price: $508.32
+ FREE SHIPPING
MSRP: $847.20
Save $338.88 (40%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when B&C DCX354-16 1.4" Neodymium Coaxial Compression Driver 16 Ohm 4-Bolt is back in stock or available for preorder.

Order in the next 2 hr 50 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C DCX354-16 1.4" Neodymium Coaxial Compression Driver 16 Ohm 4-Bolt

The DCX354’s midrange diaphragm, with a 76mm (3 inch) voice coil, covers 400Hz to 6kHz, delivering 112.2 dB sensitivity and handling 180 watts. Thanks to a patent-pending diaphragm shape, the driver achieves extended low-frequency bandwidth by progressively decoupling the outer diameter as frequency rises. The high-frequency diaphragm, with a 51mm (2 inch) voice coil, covers 5kHz to 20kHz with 114.3 dB sensitivity and handles 100 watts. Together, these features ensure a smooth and powerful audio output across a wide frequency range.

The redesigned, patented midrange integrator allows both diaphragms to work in harmony over a broad bandwidth, providing greater combined output and crossover flexibility. This innovative design results in un-fatiguing sound at levels you didn’t think possible, all from a compact package with a 1.4” throat.

To create more than just a smaller version of an existing product, B&C Speakers pioneered new mathematic modeling techniques, evaluating dozens of potential diaphragm shapes in a single day. Field experience and customer testing led to numerous improvements and redesigns, ensuring the DCX354 meets the demands of modern audio professionals.

Product Details

BrandB&C Speakers
ModelDCX35416
Part Number294-6462
UPC8050593406453
Unit of MeasureEach
Weight5.55

Product Specifications

Mounting Type4-Bolt
Power Handling (RMS)180 Watts
Impedance16Ω
