B&C 8PS21 8" Woofer

B&C SpeakersPart # 294-654
Model: 8PS21
The B&C Speakers 8PS21 8" woofer's long linear excursion provides exceptional LF performance when installed in compact bass-reflex enclosures.

Key Features

  • Excellent bass performance for a woofer of this size
  • Copper ring in the magnetic circuit reduces distortion/extends HF response
  • High power handling
Similar items that may interest you:
Dayton Audio Pro 8 in. 8 Ohm Neodymium Midbass Woofer Odeum 8N
Price: $109.98Part # 295-639
B&C 8PE21 8" Midrange Speaker
Price: $134.70Part # 294-652
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $139.62
+ FREE SHIPPING
MSRP: $232.70
Save $93.08 (40%)
Bulk Pricing
20 In Stock
Get Notified When Available

We'll send you an email when B&C 8PS21 8" Woofer is back in stock or available for preorder.

Order in the next 2 hr 59 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 8PS21 8" Woofer

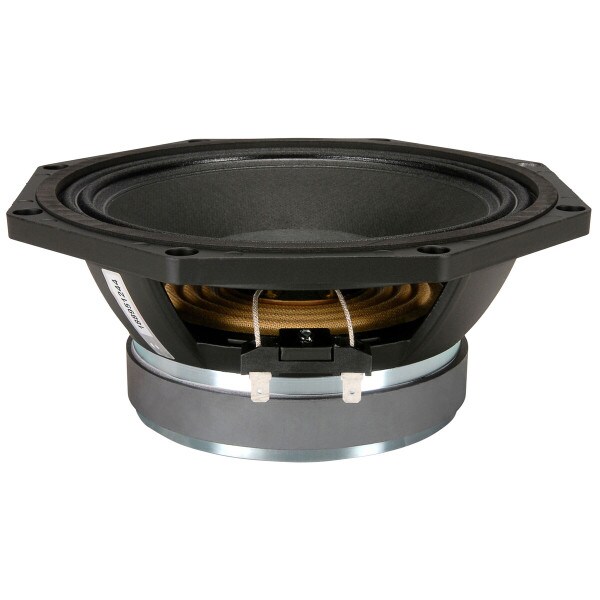

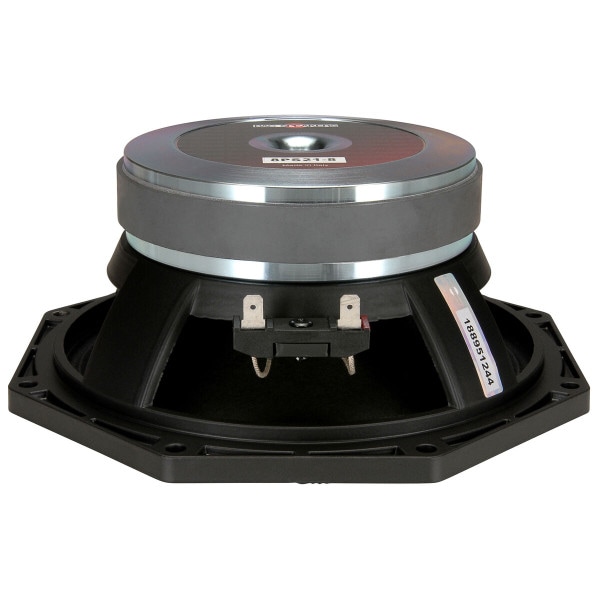

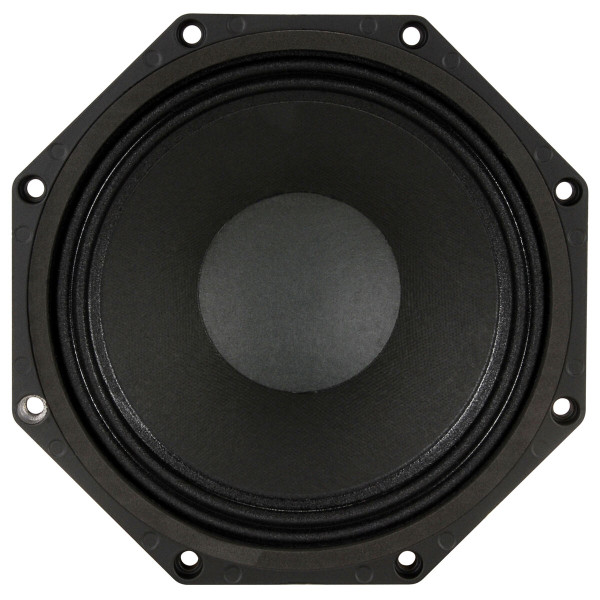

B&C's 8PS21 8" woofer features a 2" copper voice coil on a Kapton® former, die cast frame, ceramic ferrite magnet, and a 200 watts RMS power handling rating.  A copper ring in the 8PS21's magnetic circuit reduces distortion and extends high frequency response up to 3 kHz. The 8PS21 is an ideal compact pro woofer choice when used singly or in multiples.

Product Details

BrandB&C Speakers
Model8PS21
Part Number294-654
UPC844632002045
Unit of MeasureEach
Weight8.4

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.3
Power Handling (RMS)400 Watts
Impedance
Frequency Response70 to 3,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)73Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)0.5ft³
BL Product (BL)12.6T·m
Diaphragm Mass Inc. Airload (Mms)23g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)220cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.8"
Baffle Cutout Diameter7.4"
Depth3.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3186.7Hz
Vented Volume0.55ft³
Vented F372.3Hz
