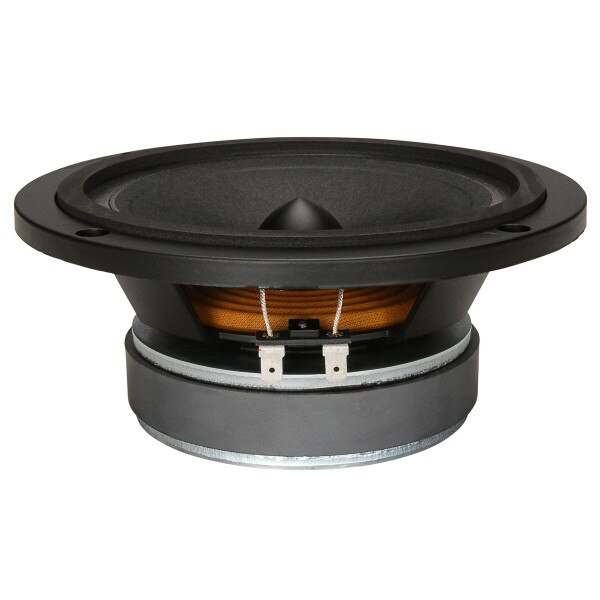

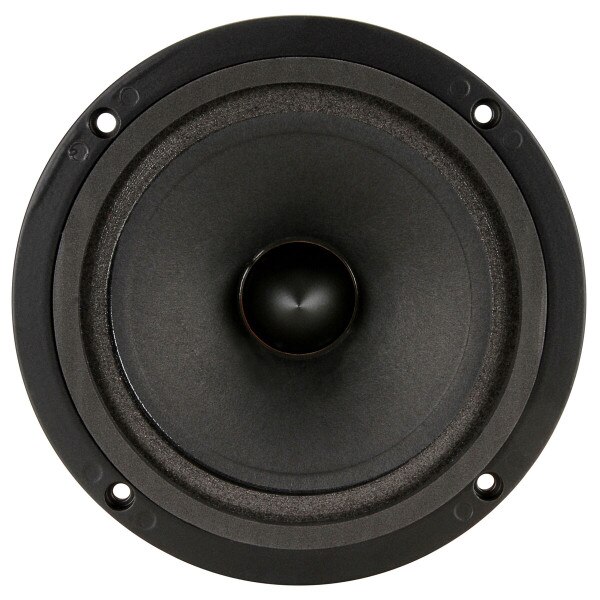

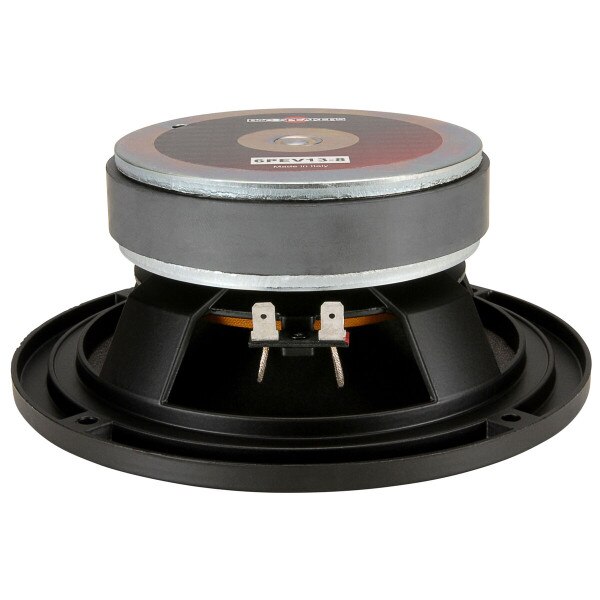

B&C 6PEV13 6-1/2" Midrange Speaker

Name: B&C 6PEV13 6-1/2" Midrange Speaker
Brand: B&C Speakers
SKU: 294-650
Price: 122.88 USD
Availability: OutOfStock
Rating: 4.7 (12 reviews)

B&C SpeakersPart # 294-650

Model: 6PEV13

Read 12 Reviews | 8 Questions, 27 Answers or

The B&C Speakers 6PEV13 high efficiency 6.5" cone midrange is ideally suited for three and four way systems.

Key Features

High efficiency allows use with powerful woofers and HF components
Aluminum phase plug maintains high axial sensitivity
Aluminum voice coil on fiberglass former
Smooth, detailed response
Die cast frame for durability and proper alignment
Lightweight yet well-damped paper cone with flat foam edge

Product Details

Brand

B&C Speakers

Model

6PEV13

Part Number

294-650

UPC

844632002014

Unit of Measure

Each

Weight

5.3

Product Specifications

Nominal Diameter

6-1/2"

Bolt Circle Diameter

6.7

Power Handling (RMS)

240 Watts

Impedance

8Ω

Frequency Response

150 to 8,000Hz

Sensitivity

99dB 2.83V/1m

Voice Coil Diameter

1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)

126Hz

DC Resistance (Re)

5.2Ω

Voice Coil Inductance (Le)

0.6mH

Mechanical Q (Qms)

4.6

Electromagnetic Q (Qes)

0.39

Total Q (Qts)

0.36

Compliance Equivalent Volume (Vas)

0.21ft³

BL Product (BL)

8.2T·m

Diaphragm Mass Inc. Airload (Mms)

Maximum Linear Excursion (Xmax)

2.5mm

Surface Area of Cone (Sd)

132cm²

Materials of Construction

Cone Material

Paper

Surround Material

Foam

Voice Coil Wire Material

Aluminum

Voice Coil Former

Fiberglass

Basket / Frame Material

Cast Aluminum

Magnet Material

Neodymium

Mounting Information

Overall Outside Diameter

7.4"

Baffle Cutout Diameter

5.7"

Depth

3.1"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

0.15ft³

Sealed F3

292.3Hz

Vented Volume

0.22ft³

Vented F3

123.7Hz
