  • B&C 6MDN44 6-1/2" Neodymium Midrange Speaker

B&C 6MDN44 6-1/2" Neodymium Midrange Speaker

B&C Speakers
Part #294-645

B&C 6MDN44 6-1/2" Neodymium Midrange Speaker

B&C Speakers
Part #294-645
Model: 6MDN44
The B&C Speakers 6MDN44 6-1/2" neodymium midrange speaker is a great choice for high output, multi-way speaker systems.
Key Features
  • Designed for midrange applications
  • High-energy neodymium motor
  • 400 watt continuous program power
  • 1.7" aluminum voice coil on a fiberglass former
  • Aluminum demodulation ring lowers distortion
  • 96.5 dB 1w/1m sensitivity
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $130.56
+ FREE SHIPPING
MSRP: $217.60
Save $87.04 (40%)
Bulk Pricing
Order in the next 4 hr 57 min to ship today. Details

14In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

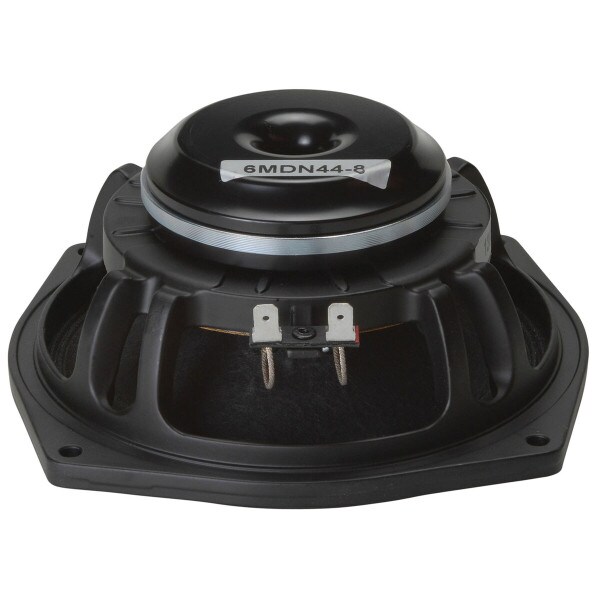

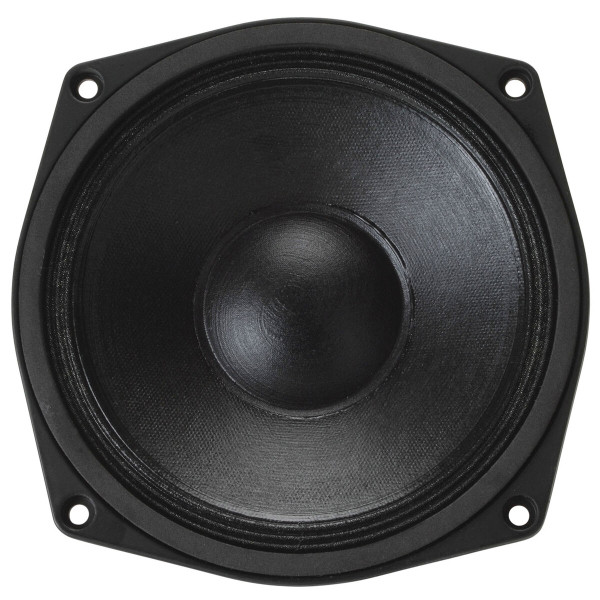

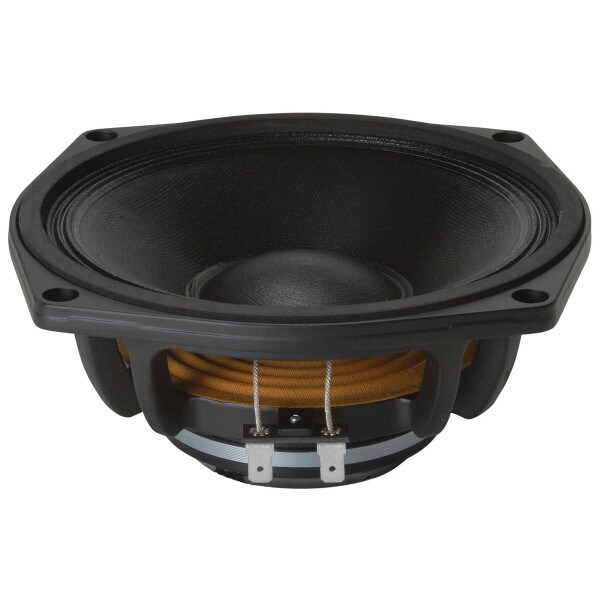

B&C 6MDN44 6-1/2" Neodymium Midrange Speaker

B&C's 6MDN44 6-1/2" speaker was designed for professional midrange applications that require high output and low distortion. The 6MDN44's powerful neodymium magnet reduces driver weight while maintaining superb efficiency, complemented by a short, low-mass aluminum voice coil. An aluminum demodulation ring in the motor circuit reduces distortion.

Product Details

BrandB&C Speakers
Model6MDN44
Part Number294-645
UPC844632086014
Unit of MeasureEach
Weight2.2

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.7
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response150 to 6,000Hz
Sensitivity96.5dB 2.83V/1m
Voice Coil Diameter1.7"

Thiele-Small Parameters

Resonant Frequency (Fs)140Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.47mH
Mechanical Q (Qms)2.8
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)0.09ft³
BL Product (BL)11T·m
Diaphragm Mass Inc. Airload (Mms)11g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)132cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter7.4"
Baffle Cutout Diameter5.7"
Depth2.9"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3293.4Hz
Vented Volume0.1ft³
Vented F3137.7Hz
