  • B&C 6MBX44 6.5" Professional Neodymium Woofer 8 Ohm

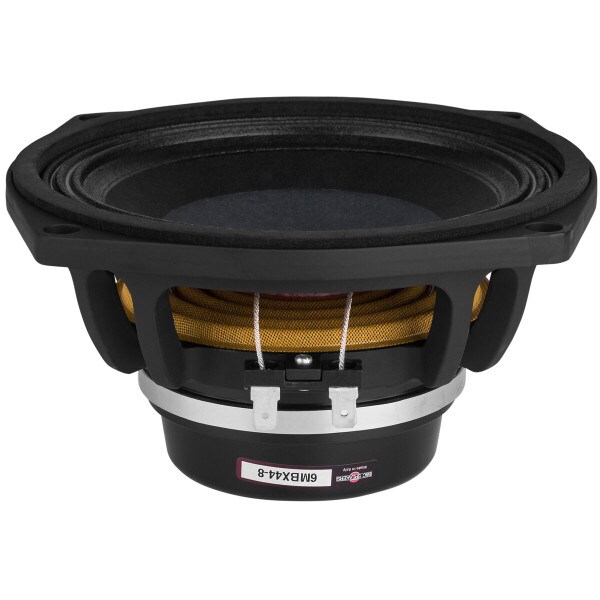

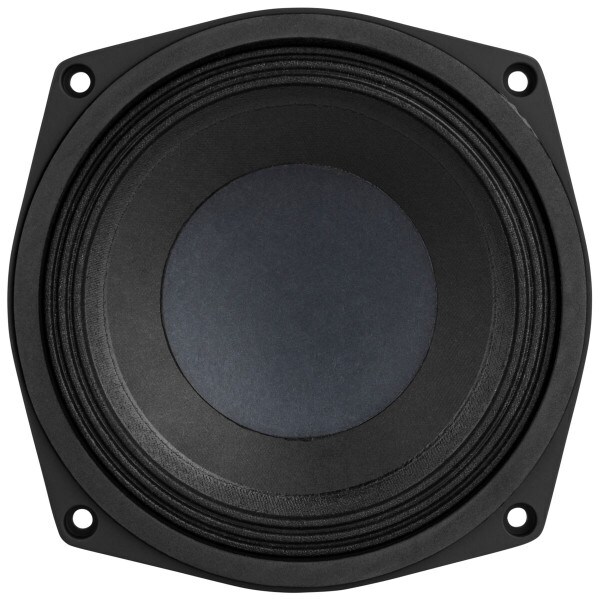

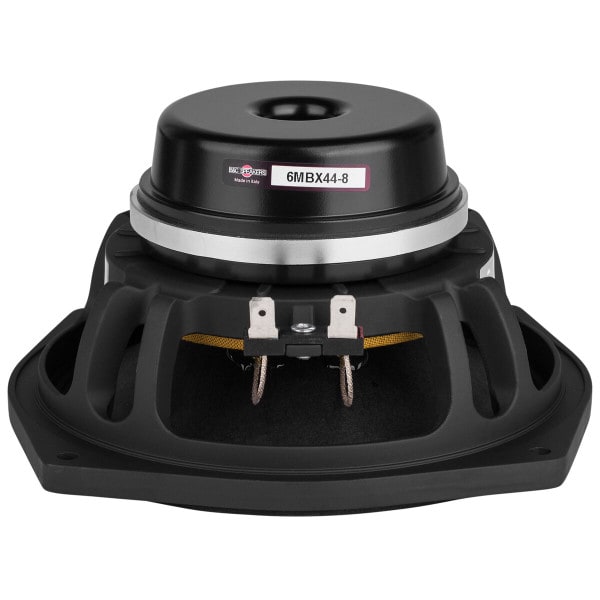

B&C 6MBX44 6.5" Professional Neodymium Woofer 8 Ohm

B&C Speakers
Part #294-6014

B&C 6MBX44 6.5" Professional Neodymium Woofer 8 Ohm

B&C Speakers
Part #294-6014
Model: 6MBX44
The 6MBX44 from B&C Speakers provides surprisingly wide frequency response and extremely high output making it perfect for use in compact 2-way sound reinforcement systems.
Key Features
  • Neodymium magnet produces more output with less weight
  • Aluminum shorting ring keeps distortion low
  • MBX Series drivers are ideal for use in compact 2-way loudspeaker designs
  • Weatherproof cone for use in less than ideal outdoor conditions
Your Price: $165.90
+ FREE SHIPPING
MSRP: $276.50
Save $110.60 (40%)
Bulk Pricing
Ships next business day. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 6MBX44 6.5" Professional Neodymium Woofer 8 Ohm

The 6MBX44 6" mid-bass woofer from B&C Speakers offers acoustic designers a high efficiency, wide bandwidth driver capable of surprising output levels. This full-featured transducer incorporates a lightweight neodymium motor, inside/outside wound copper clad aluminum wire voice coil, weatherproof hydrophobic paper cone, and a symmetrical inductance profile. Everything about this driver has been designed for reliable and consistent low distortion output even when driven to its limit. All MBX Series drivers are especially well suited for 2-way loudspeaker designs.

Product Details

BrandB&C Speakers
Model6MBX44
Part Number294-6014
UPC848864032573
Unit of MeasureEach
Weight4

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.7
Power Handling (RMS)400 Watts
Impedance8Ω
Frequency Response115 to 5,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter1.7"

Thiele-Small Parameters

Resonant Frequency (Fs)113Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)3.9
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.14ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)11.7T·m
Diaphragm Mass Inc. Airload (Mms)12g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)132cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter7.36"
Baffle Cutout Diameter5.7"
Depth3.43"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.13ft³
Sealed F3325.2Hz
Vented Volume0.15ft³
Vented F3113.4Hz
