B&C 5NSM38-8 5" Professional Neodymium Sealed Back Midrange 8 Ohm

B&C SpeakersPart # 294-5940
Model: 5NSM38-8
The convenient 5NSM38-8 5" sealed back midrange from B&C Speakers is perfect for use in any high output 3-way speaker design. With 99 dB sensitivity and 110 watt RMS power handling, this midrange has enough output capability to keep up with the most powerful drivers. The cast aluminum housing provides ample heat dissipation and isolated the driver for easy installation.

Key Features

  • 1-1/2" voice coil and fiberglass former to handle up to 110 watts RMS
  • High output midrange response with extremely low distortion

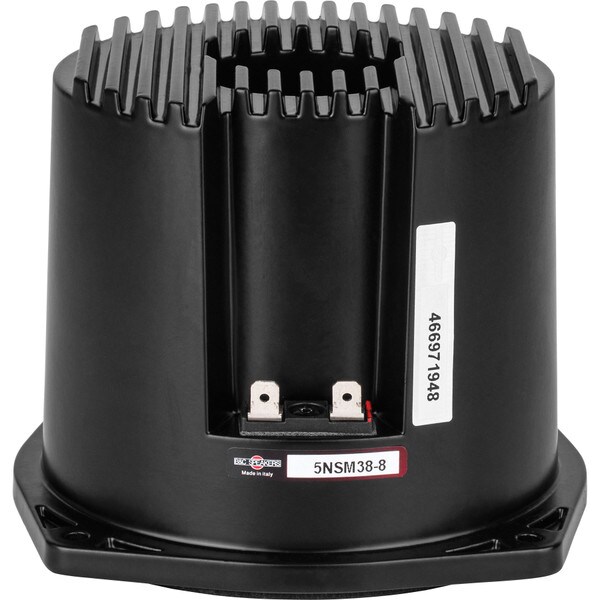

  • Non-resonant cast aluminum rear chamber provides isolation and heat dissipation

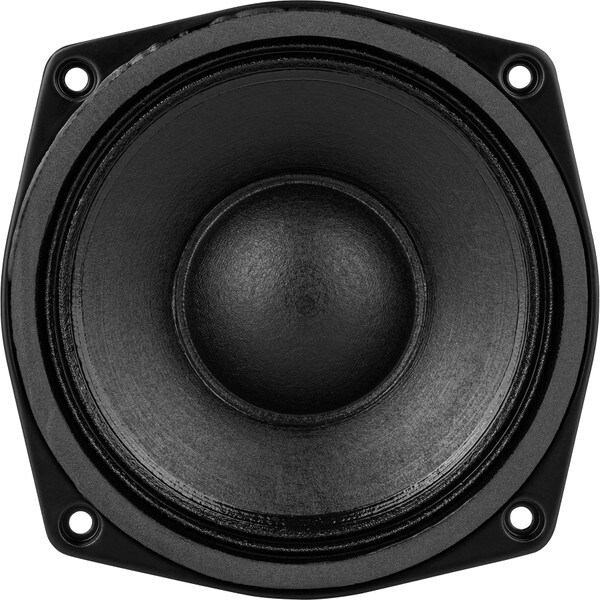

  • Waterproof treated paper cone for use in damp and wet locations
Your Price: $160.14
+ FREE SHIPPING
MSRP: $266.90
Save $106.76 (40%)
Bulk Pricing
Only 2 In Stock
Get Notified When Available

We'll send you an email when B&C 5NSM38-8 5" Professional Neodymium Sealed Back Midrange 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 5NSM38-8 5" Professional Neodymium Sealed Back Midrange 8 Ohm

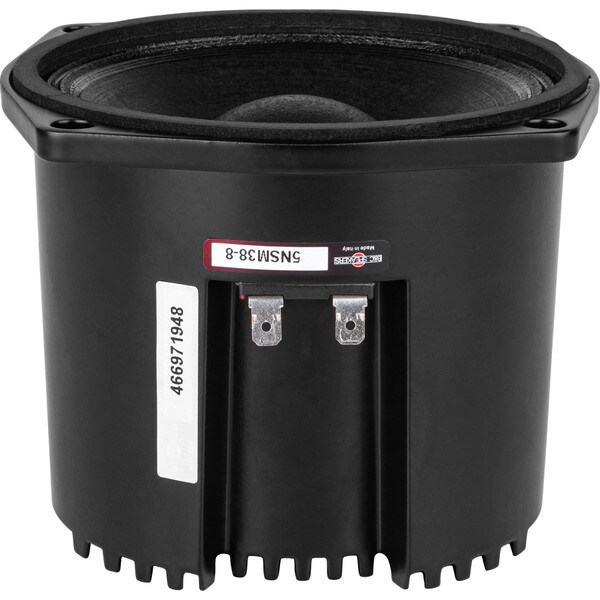

B&C Speakers' 5NSM38-8 5" sealed back midrange produces high efficiency midrange response from 300 to 3,500 Hz with remarkably low distortion. With a non-resonant cast aluminum rear chamber, the 5NSM38-8 can be easily installed into enclosures without the need for additional isolation. The motor system is powered by a high energy neodymium ring magnet for low weight and high efficiency. Treated with a waterproof coating, the naturally damped paper cone keeps unwanted resonances under control for smooth and accurate response, even when used in harsh conditions. B&C's NSM series dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available. The 5NSM38-8 is the ideal midrange for use in high output direct radiation and front loaded horn 3-way speaker systems.

Product Details

BrandB&C Speakers
Model5NSM38-8
Part Number294-5940
UPC848864063379
Unit of MeasureEach
Weight3.55

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.59
Power Handling (RMS)220 Watts
Impedance
Frequency Response300 to 3,500Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)300Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)0.15mH
Mechanical Q (Qms)4.1
Electromagnetic Q (Qes)0.99
Total Q (Qts)0.79
Compliance Equivalent Volume (Vas)0.01ft³
BL Product (BL)10.1T·m
Diaphragm Mass Inc. Airload (Mms)9g
Maximum Linear Excursion (Xmax)2.2mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.18"
Baffle Cutout Diameter4.8"
Depth4.25"
# Mounting Holes4
