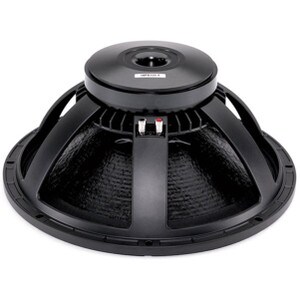

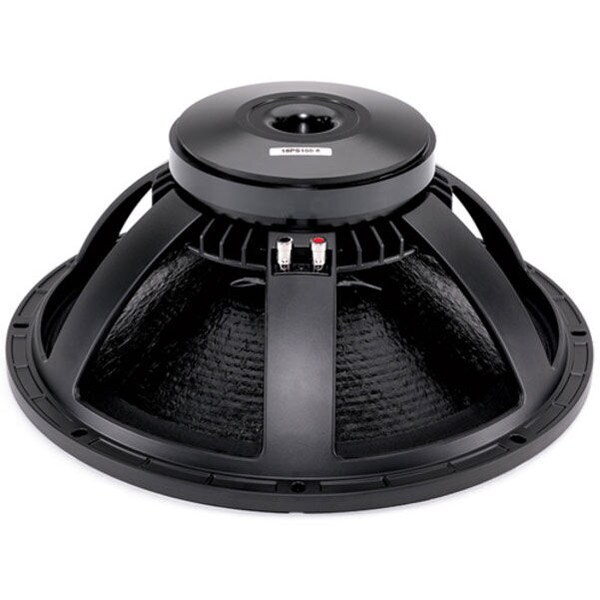

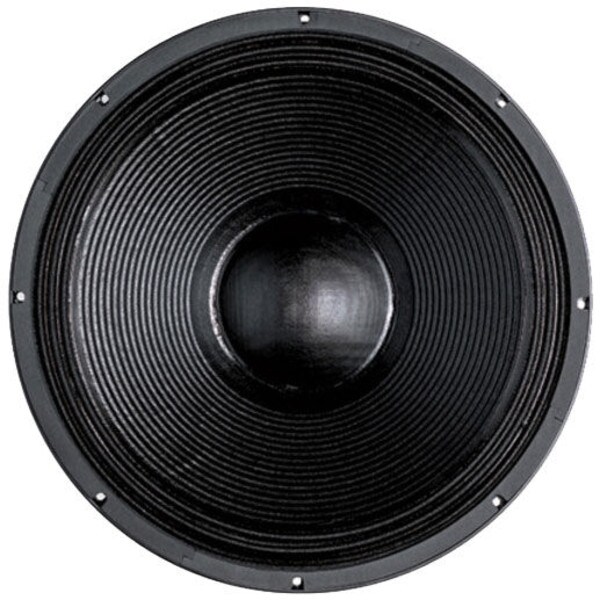

B&C 18PS100 18" Professional Subwoofer 8 Ohm

B&C SpeakersPart # 294-6003
Model: 18PS100
The most powerful 18" in the B&C ceramic product range with its 700 watts RMS power handling, the 18PS100-8 defines the low frequency reproduction "state of the art".

Key Features

  • 700 watts RMS power handling
  • 4" copper wire voice coil wound inside-outside on fiberglass former
  • Double spider suspension system maintains linearity
  • Dual demodulation rings in the magnet system
  • Very low distortion—nothing but deep, clean bass
Similar items that may interest you:
Dayton Audio Pro 18 in. 8 Ohm Subwoofer Odeum 18F
Price: $224.98Part # 295-641
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $311.22
+ FREE SHIPPING
MSRP: $518.70
Save $207.48 (40%)
Bulk Pricing
Only 4 In Stock
Get Notified When Available

We'll send you an email when B&C 18PS100 18" Professional Subwoofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 18PS100 18" Professional Subwoofer 8 Ohm

The industry-standard B&C Speakers 18PS100 features a 0.83" long/4" diameter copper wire voice coil with high thermal capability, and a ventilated magnet assembly, both of which contribute to low power compression. A very low distortion figure is obtained using a double spider design and dual demodulation rings in the magnetic path. The 18PS100 is fortified by a proprietary water-proof cone treatment that facilitates safe use in adverse climatic conditions. This benchmark pro subwoofer driver is found in many famous manufacturers' well-established loudspeaker enclosures.

Product Details

BrandB&C Speakers
Model18PS100
Part Number294-6003
UPC848864009797
Unit of MeasureEach
Weight26.2

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.3
Power Handling (RMS)1400 Watts
Impedance
Frequency Response30 to 1,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)4.6
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)8.6ft³
BL Product (BL)22.5T·m
Diaphragm Mass Inc. Airload (Mms)202g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)1210cm²

Materials of Construction

Cone MaterialCoated Paper
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18"
Baffle Cutout Diameter16.6"
Depth7.75"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.75ft³
Sealed F361.4Hz
Vented Volume6.25ft³
Vented F334.4Hz
