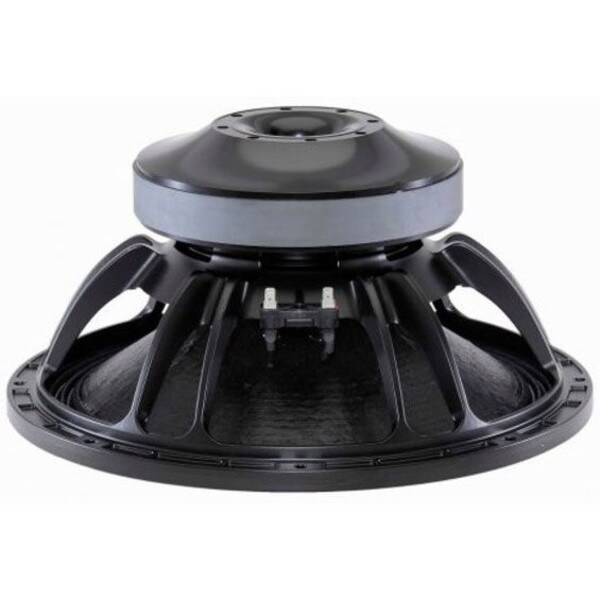

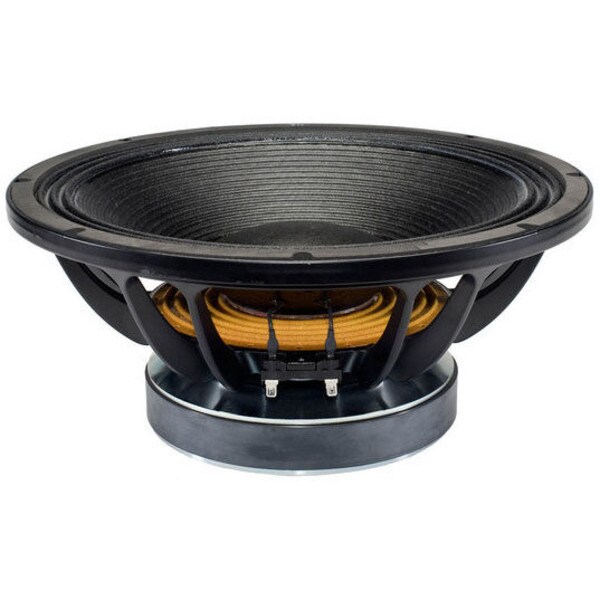

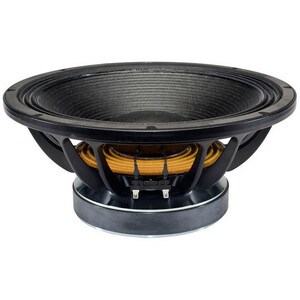

B&C 15TBW100-4 15" Professional Woofer 4 Ohm

B&C SpeakersPart # 294-5992
Model: 15TBW100-4
3 Questions, 3 Answers or
Choose the 15TBW100-4 15" subwoofer from B&C Speakers for serious professional audio applications where extremely high power handling and low distortion are required.

Key Features

  • High BL motor for impressive control and massive output
  • Split winding 4" voice coil handles 1,500 watts RMS
  • Aluminum demodulating ring reduces distortion
  • Under-spider venting for maximum power handling
  • Capable of producing big sound when loaded in small boxes
Your Price: $369.54
+ FREE SHIPPING
MSRP: $615.90
Save $246.36 (40%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when B&C 15TBW100-4 15" Professional Woofer 4 Ohm is back in stock or available for preorder.

Estimated back in stock 1/9/2026
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15TBW100-4 15" Professional Woofer 4 Ohm

B&C's 15TBW100-4 15" professional woofer features 3,000 watts of continuous program power capacity, thanks to its 4" split winding copper voice coil. A frequency response of 40 to 1,500 Hz, 96.0 dB sensitivity, and 57 mm of peak-to-peak excursion (before damage) combine to make this one of the top woofers in its class. The 15TBW100-4's double silicone spider with optimized compliance keeps the driver controlled, while the ventilated voice coil gap reduces power compression. Low distortion is achieved by using an aluminum demodulating ring in the driver's magnetic circuit.


Product Details

BrandB&C Speakers
Model15TBW100-4
Part Number294-5992
UPC848864009742
Unit of MeasureEach
Weight34.6

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)3000 Watts
Impedance4Ω
Frequency Response40 to 1,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)2.2mH
Mechanical Q (Qms)4.4
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)3.39ft³
BL Product (BL)26.4T·m
Diaphragm Mass Inc. Airload (Mms)181g
Maximum Linear Excursion (Xmax)12mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth7.68"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F3103.1Hz
Vented Volume3.5ft³
Vented F342.1Hz
